Pinpoint Tests

PINPOINT TEST J: THE SPEED CONTROL IS INOPERATIVE

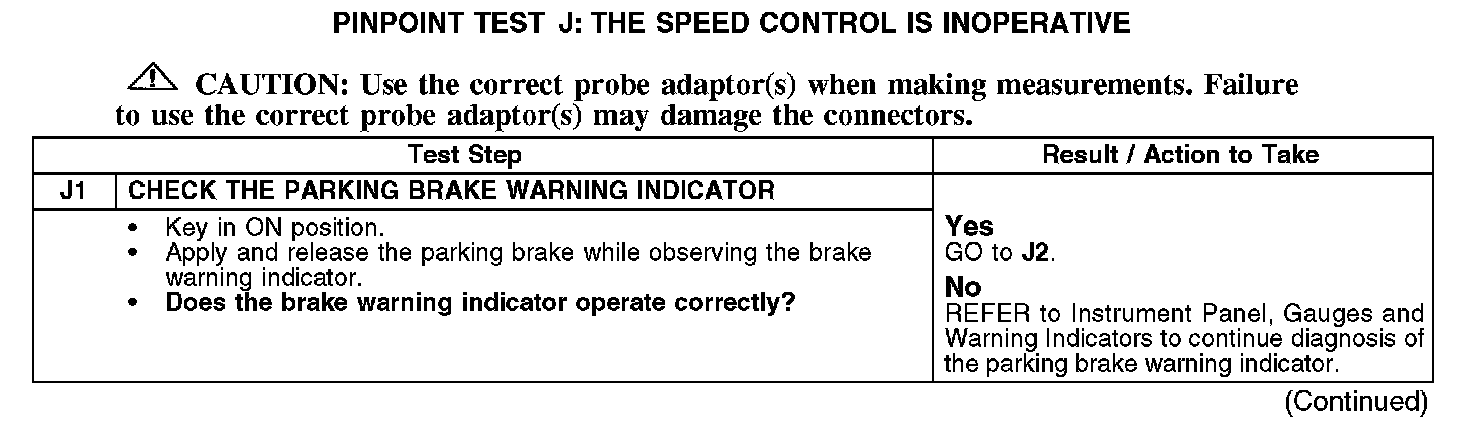

J1:

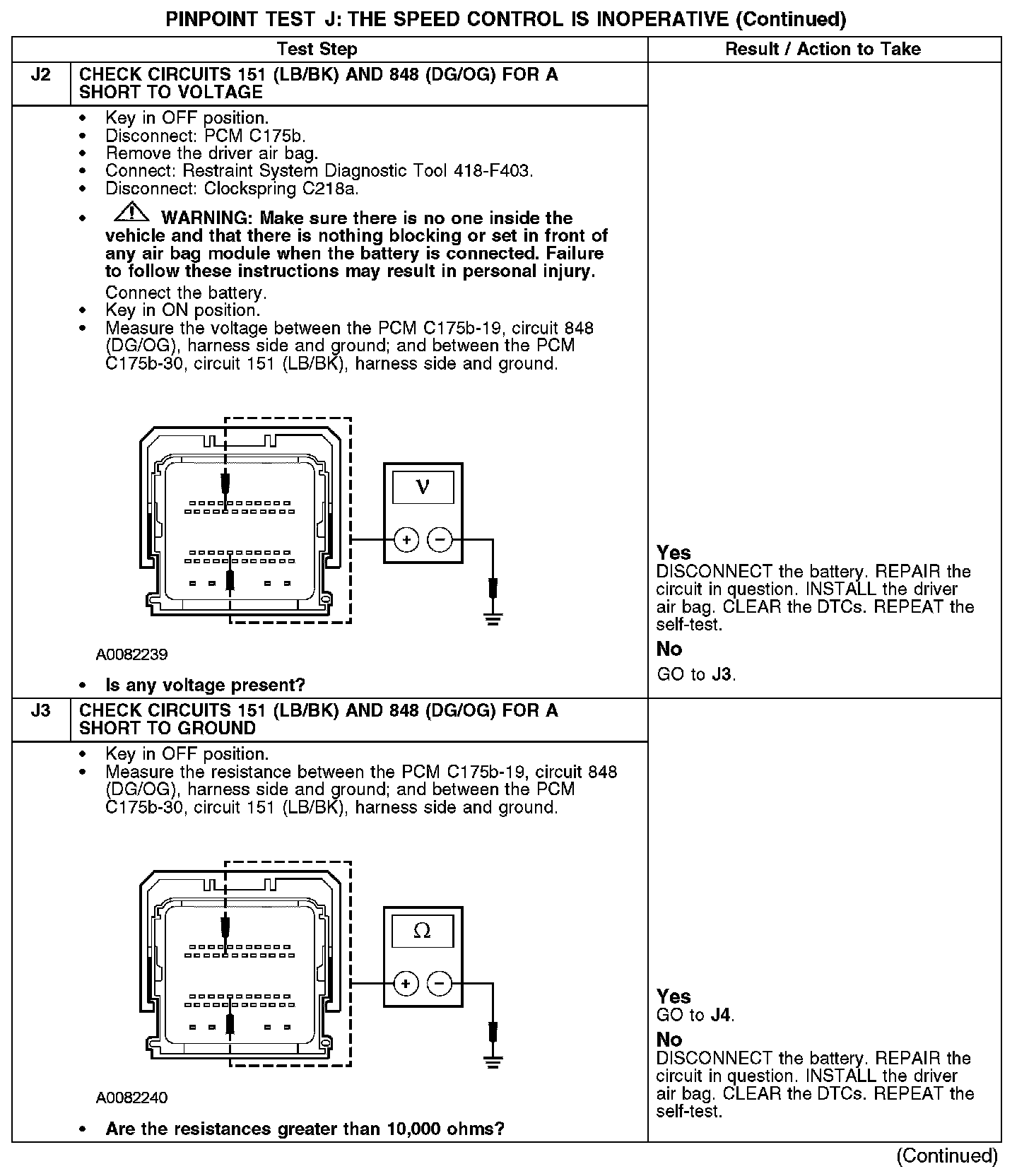

J2-J3:

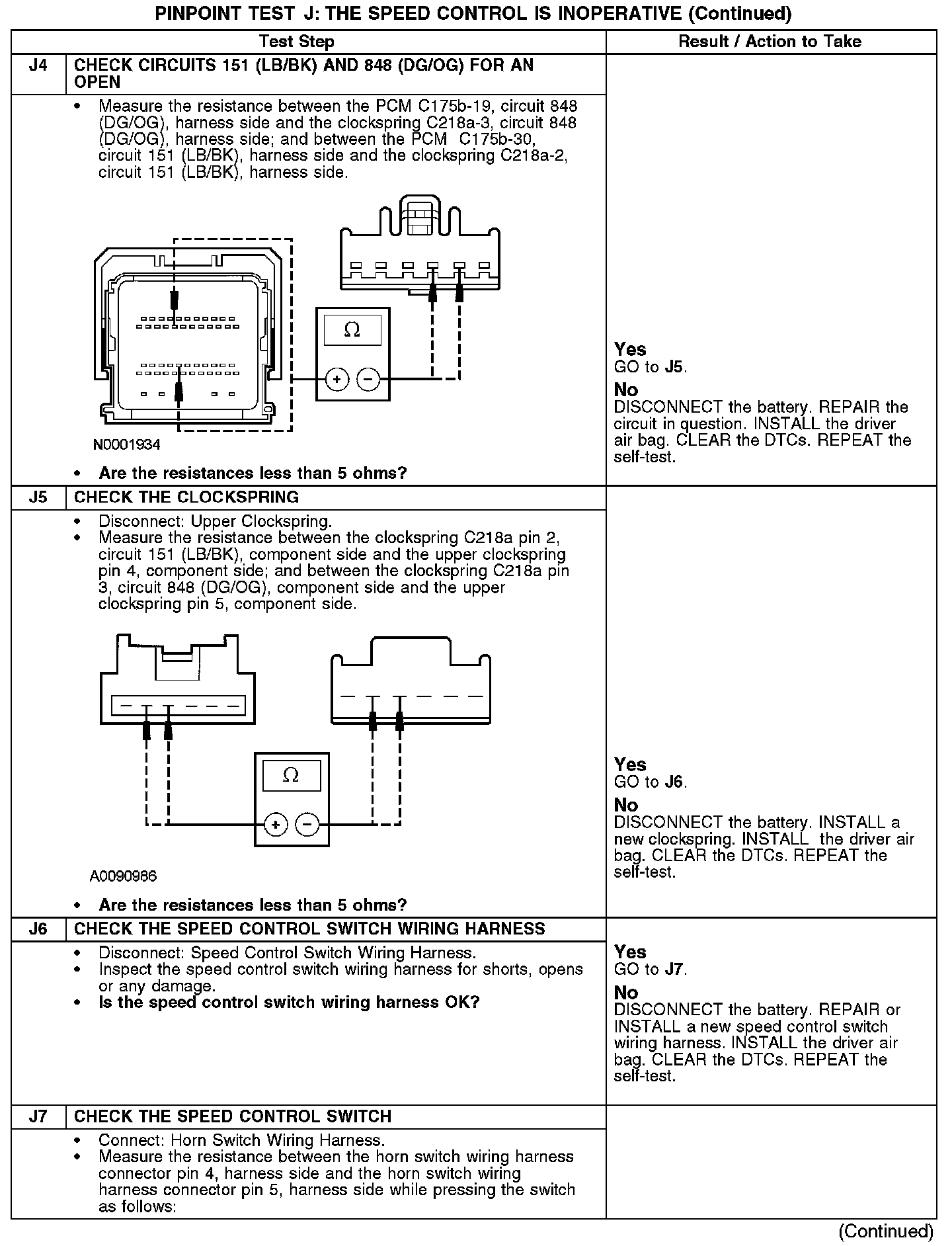

J4-J7:

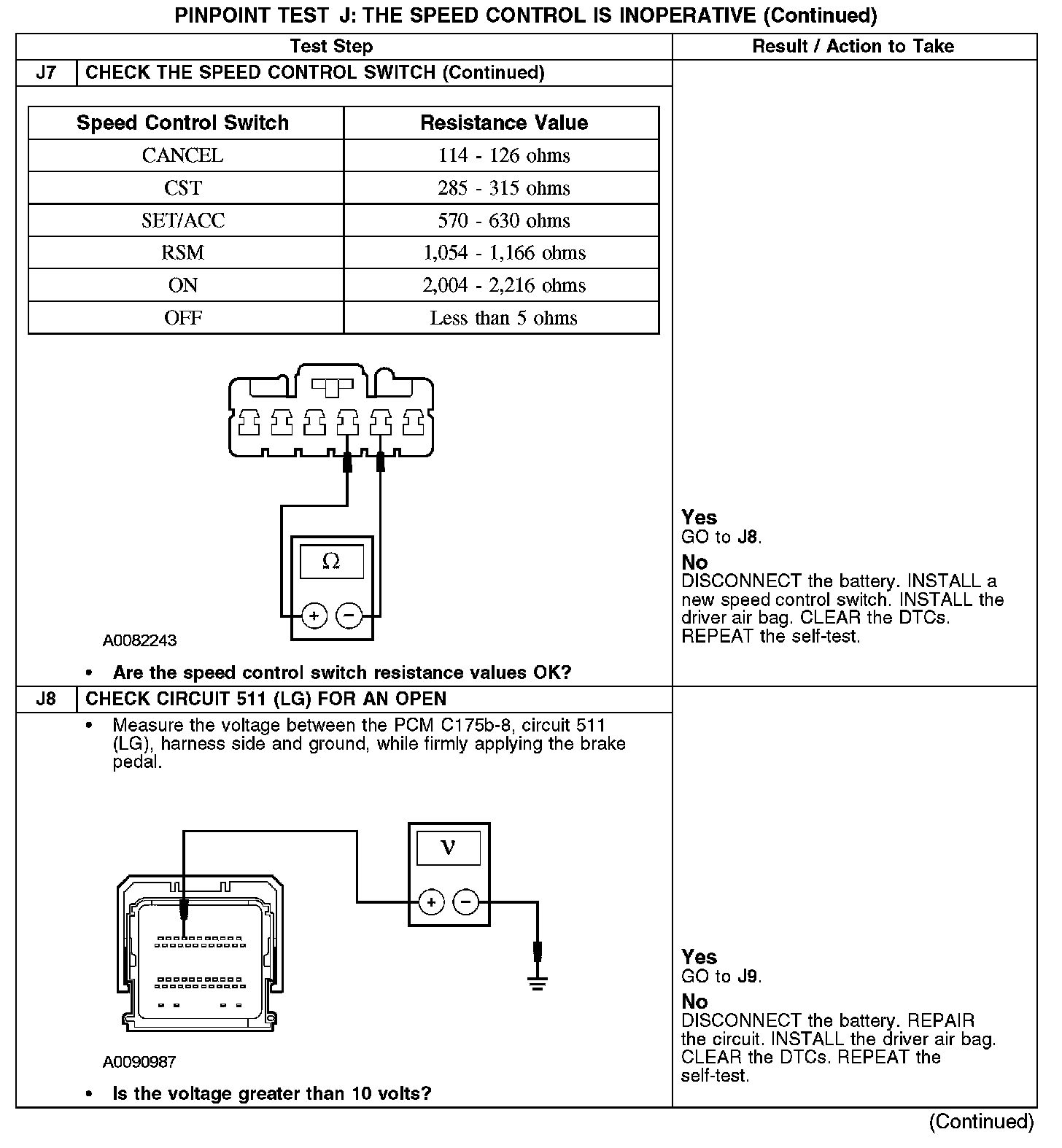

J7-J8:

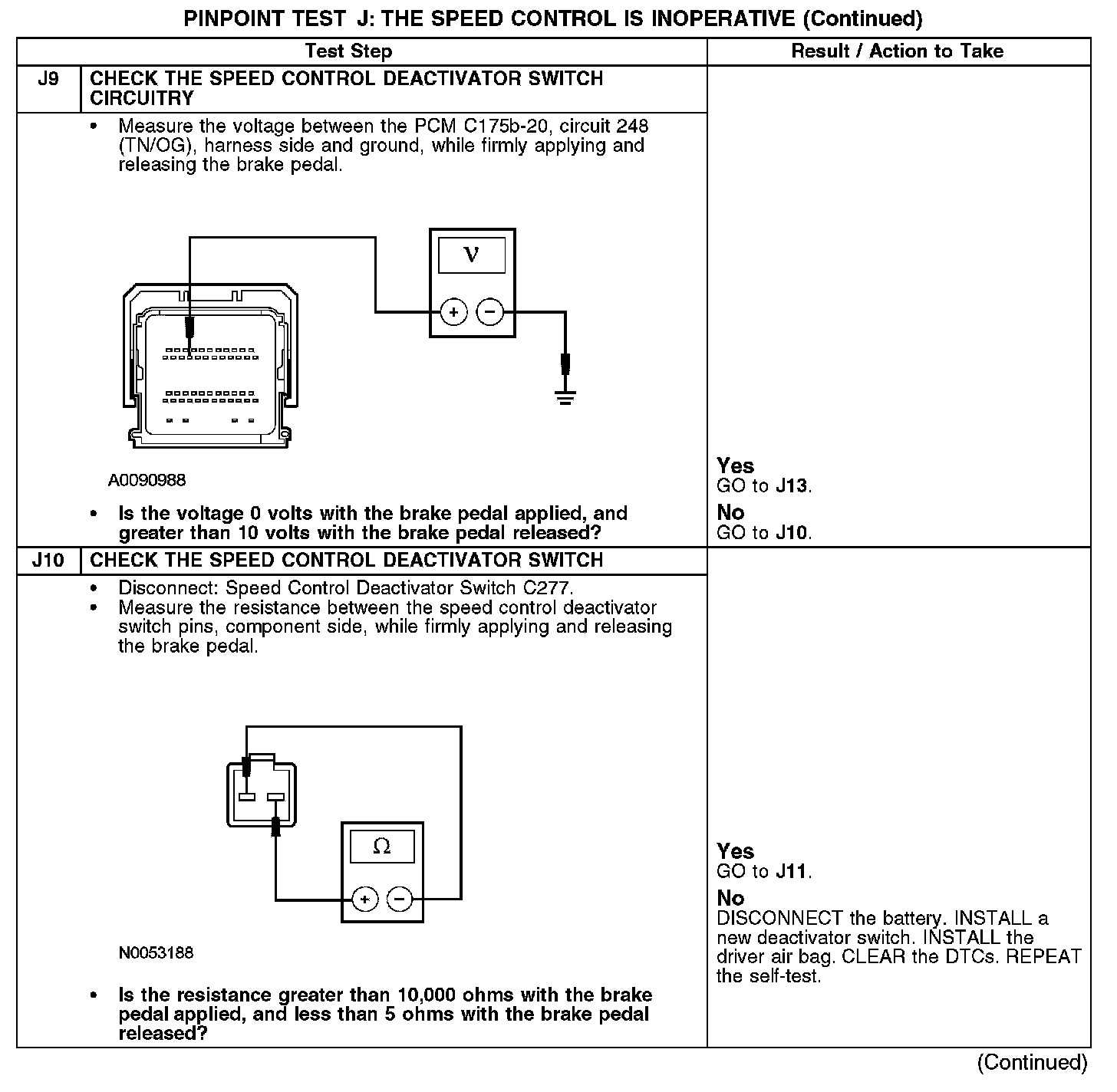

J9-J10:

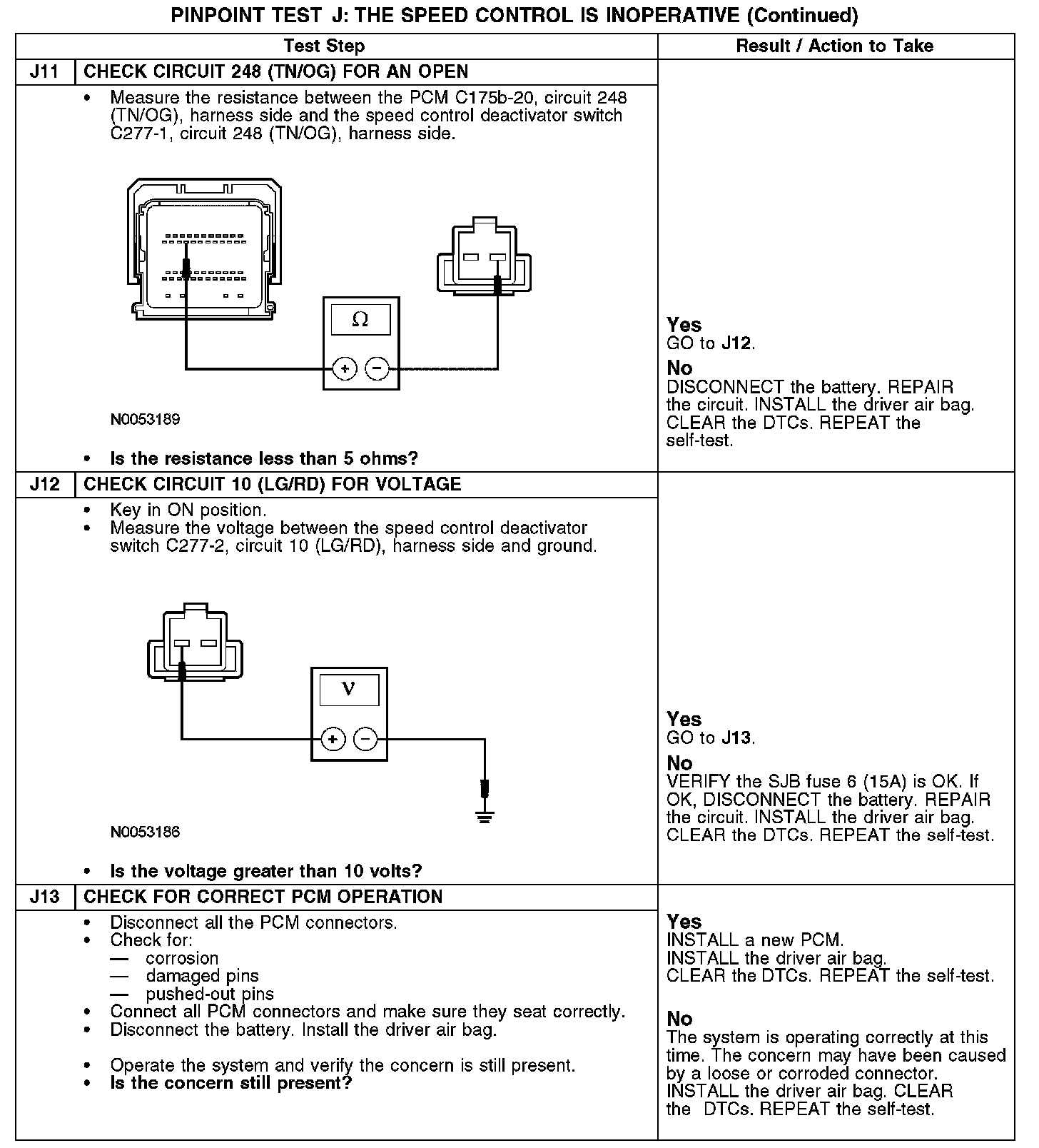

J11-J13:






Normal Operation
The powertrain control module (PCM) sends a signal through circuit 151 (LB/BK) to the speed control switches, which pass through the clockspring. The return signal is sent through circuit 848 (DG/OG) and the clockspring.

Possible Causes
- Fuse
- Circuit 151 (LB/BK) open, short to ground or voltage
- Circuit 848 (DG/OG) open, short to ground or voltage
- Clockspring
- PCM
- Speed control switch
