Tests HH: DC/DC Converter

PINPOINT TEST HH: DC/DC CONVERTER


Warning And Important Safety Notice:






DC/DC Converter-A (DDC-A) Connector And DC/DC Converter-High Voltage (DDC-HV) Connector:






Transaxle Assembly-DC/DC High Voltage (DDHV) Connector And Powertrain Control Module (PCM) Connector:

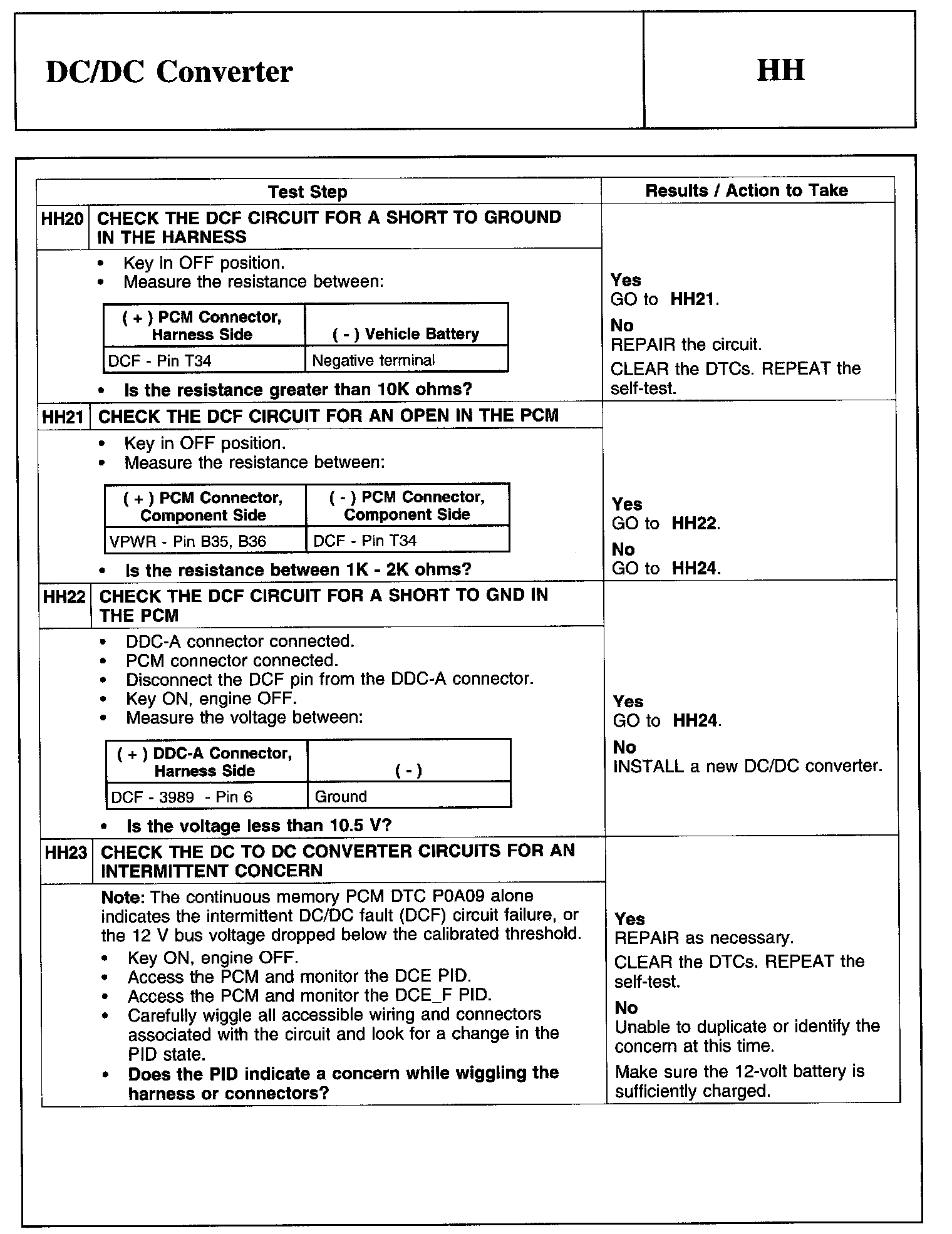

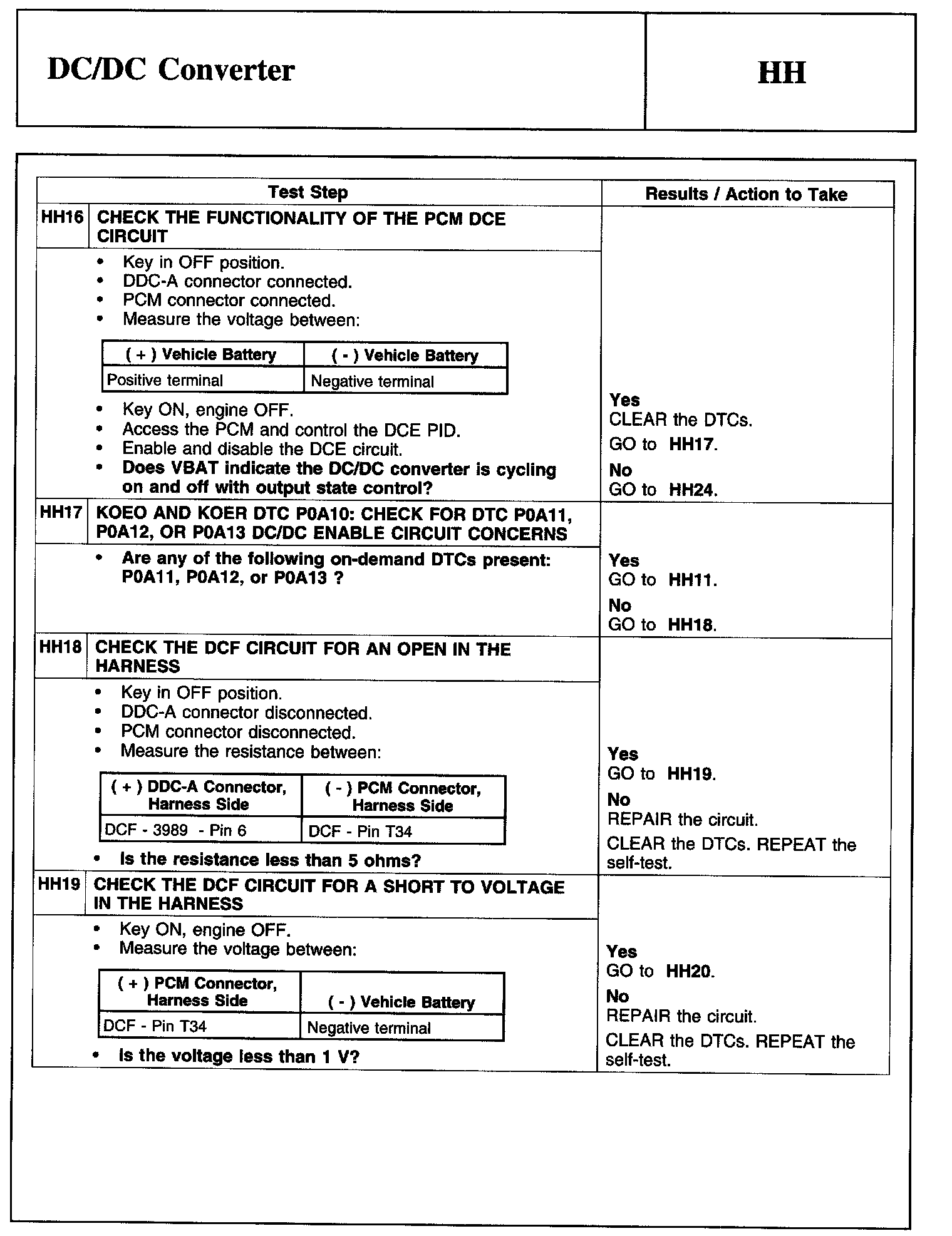

HH1-HH4:






HH5-HH8:






HH9-HH12:






HH13-HH15:






HH16-HH19:






HH20-HH23:






HH24:
