CD4E Automatic Transmission

Transaxle Connector Layouts

NOTE: This vehicle is equipped with a new style powertrain control module. This is a 50-pin control module with 3 separate connectors. One connector for the chassis (C), one for the transaxle (T) and one for the body (B). The pin numbers listed throughout these pinpoint tests will have the letter C and T to designate the connector.

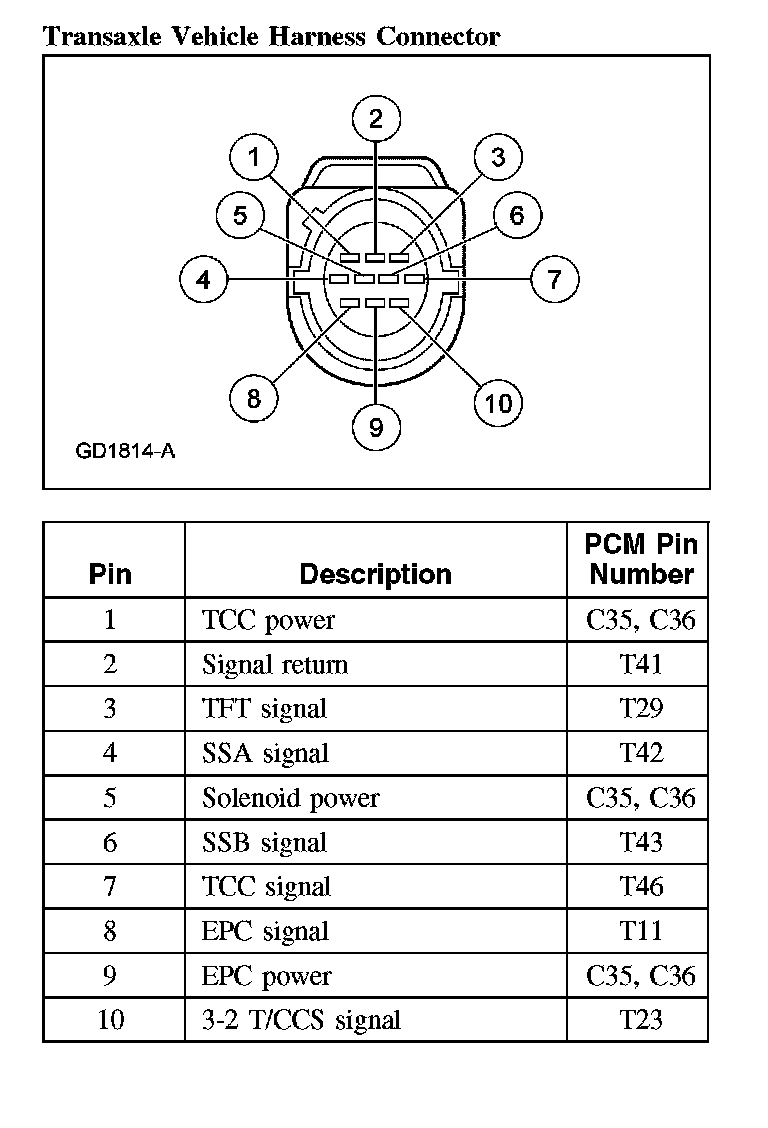

Transaxle Vehicle Harness Connector:

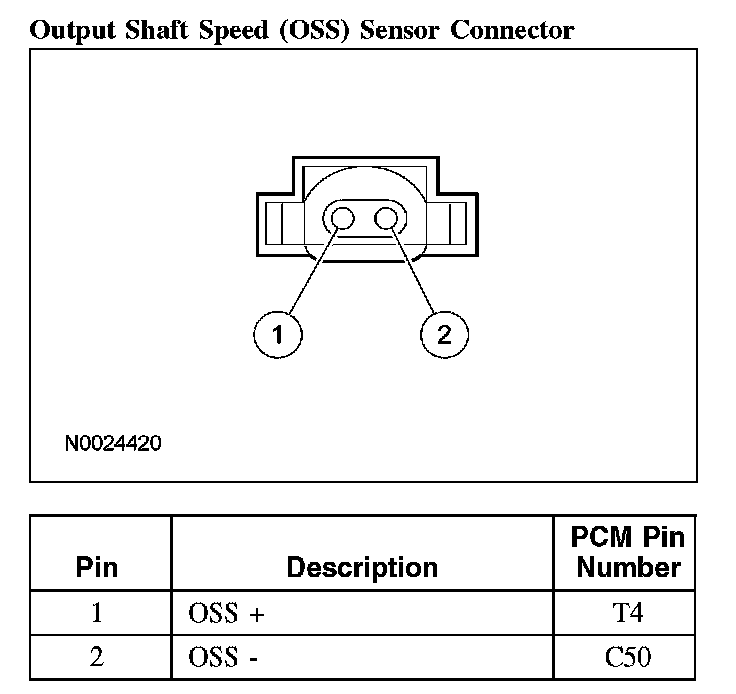

Output Shaft Speed (OSS) Sensor Connector:

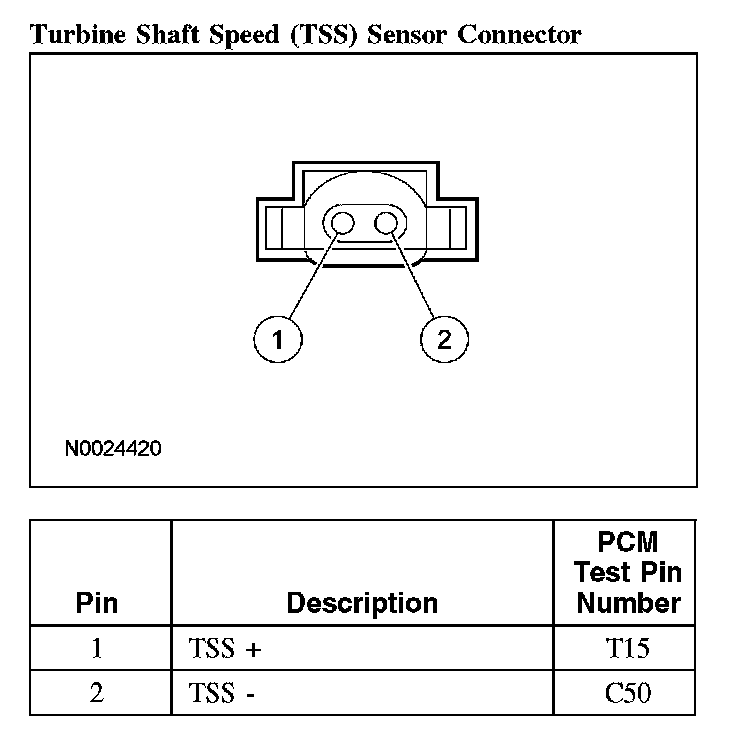

Turbine Shaft Speed (TSS) Sensor Connector:

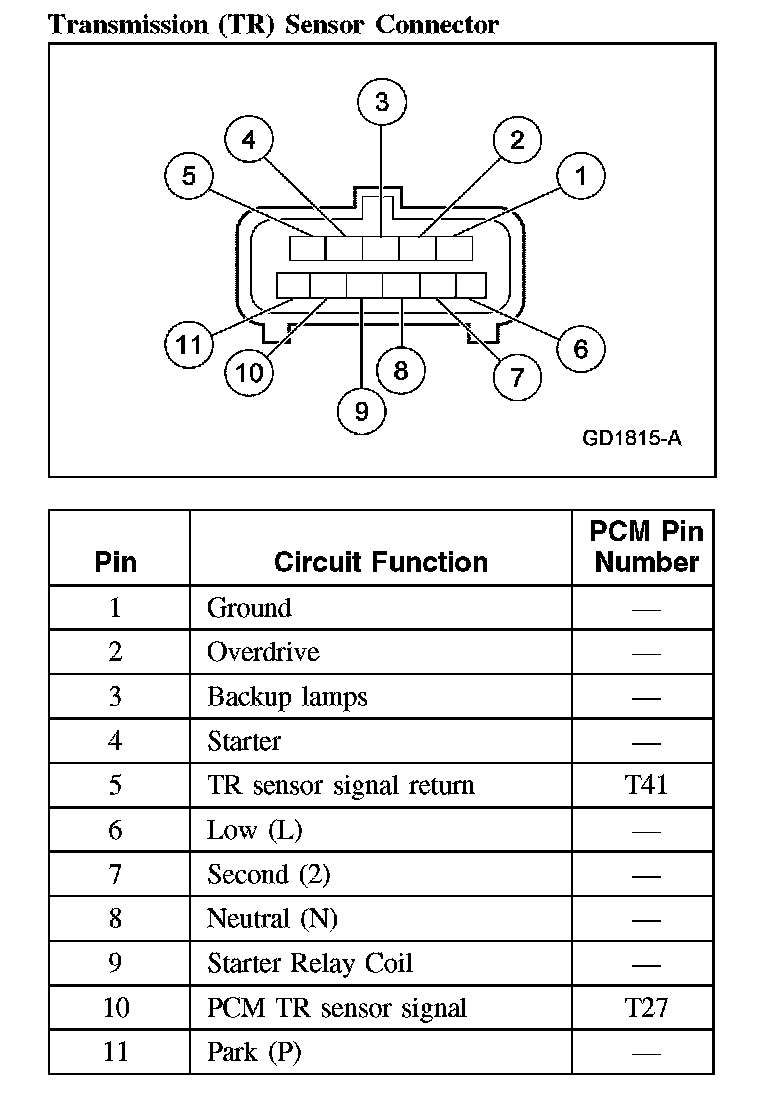

Transmission (TR) Sensor Connector:

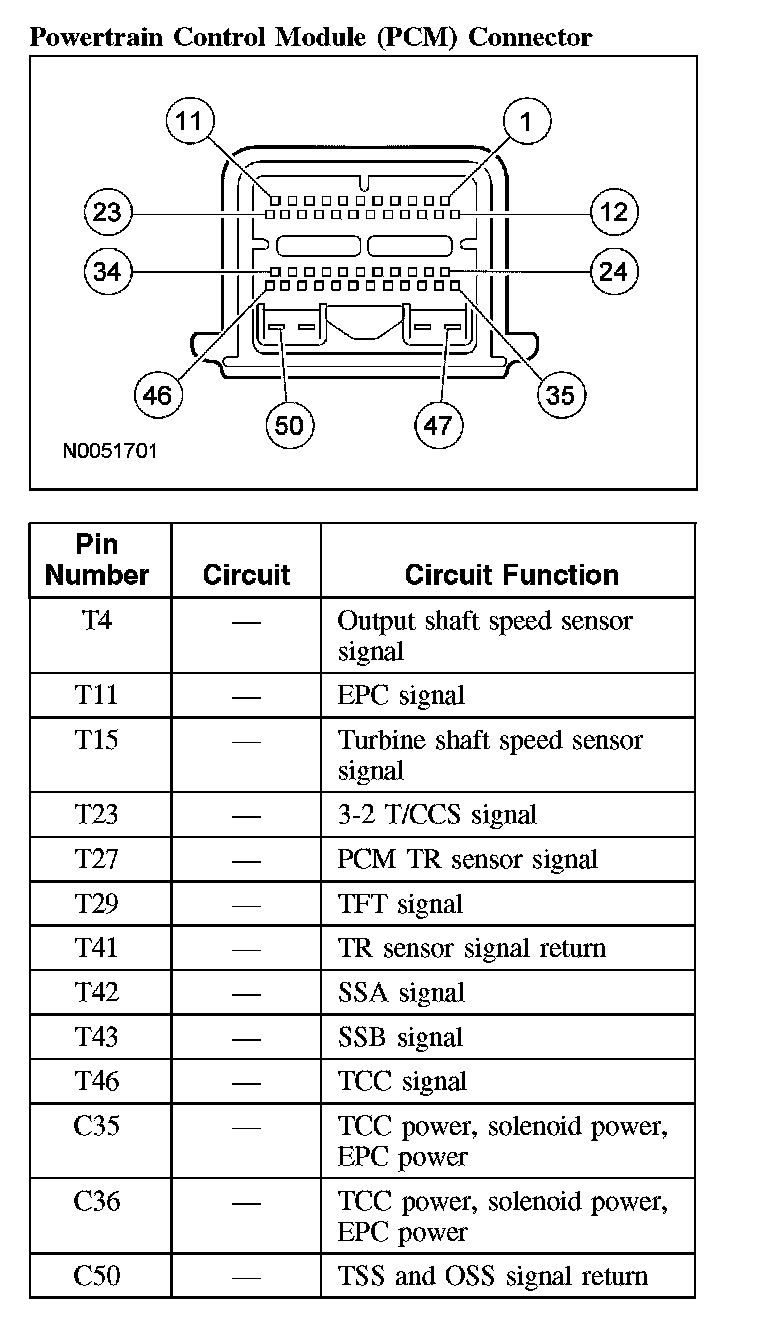

Powertrain Control Module (PCM) Connector:
