License Plate Lamp: Service and Repair

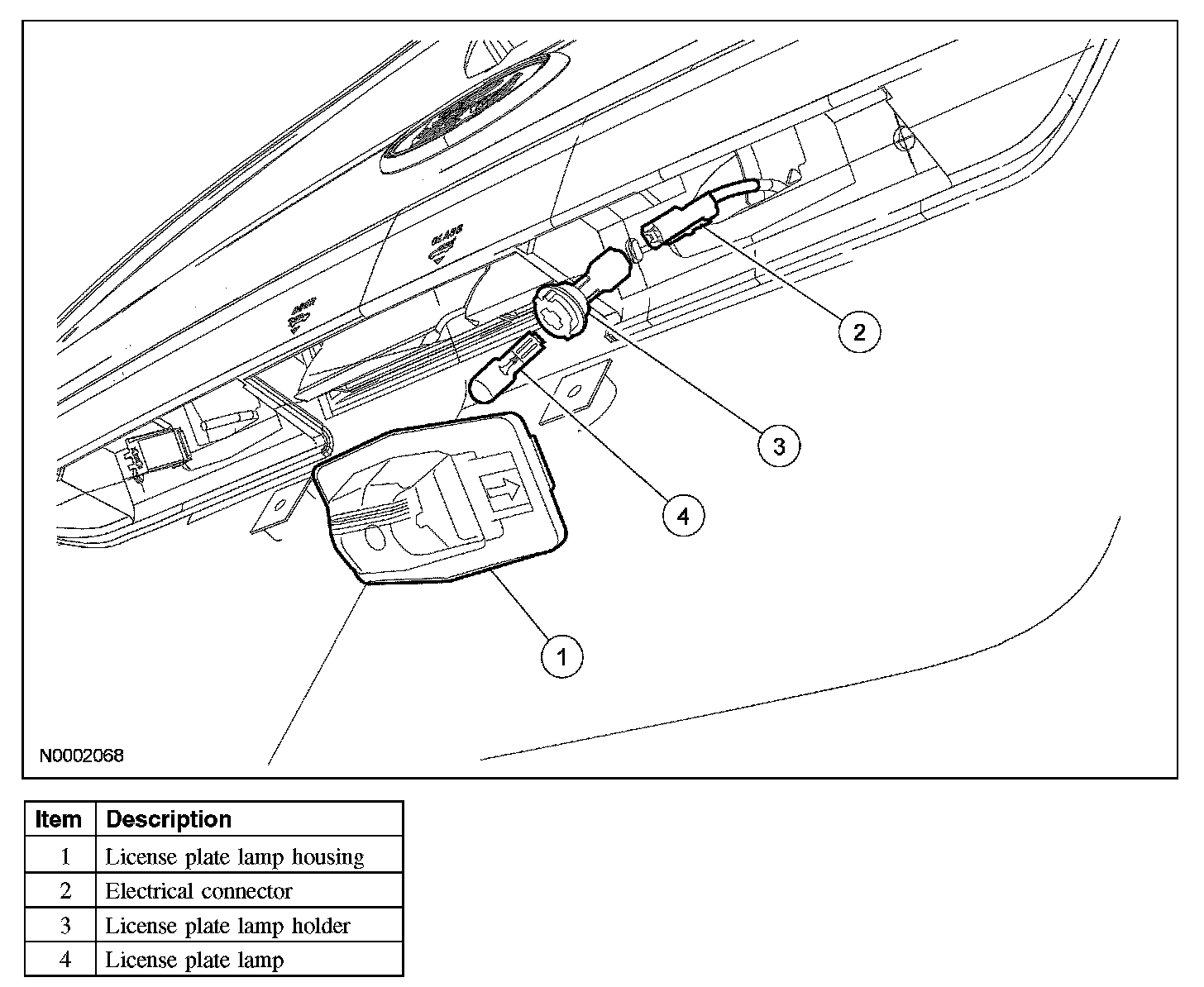

LICENSE PLATE LAMP







Removal and Installation
1. Push the license plate lamp housing to the right and pull it out.
2. Disconnect the electrical connector.
3. Remove the license plate lamp holder and lamp.
4. To install, reverse the removal procedure.
