Marker Lamp: Service and Repair

SIDE LAMP/FRONT TURN SIGNAL LAMP BULB







Removal and Installation

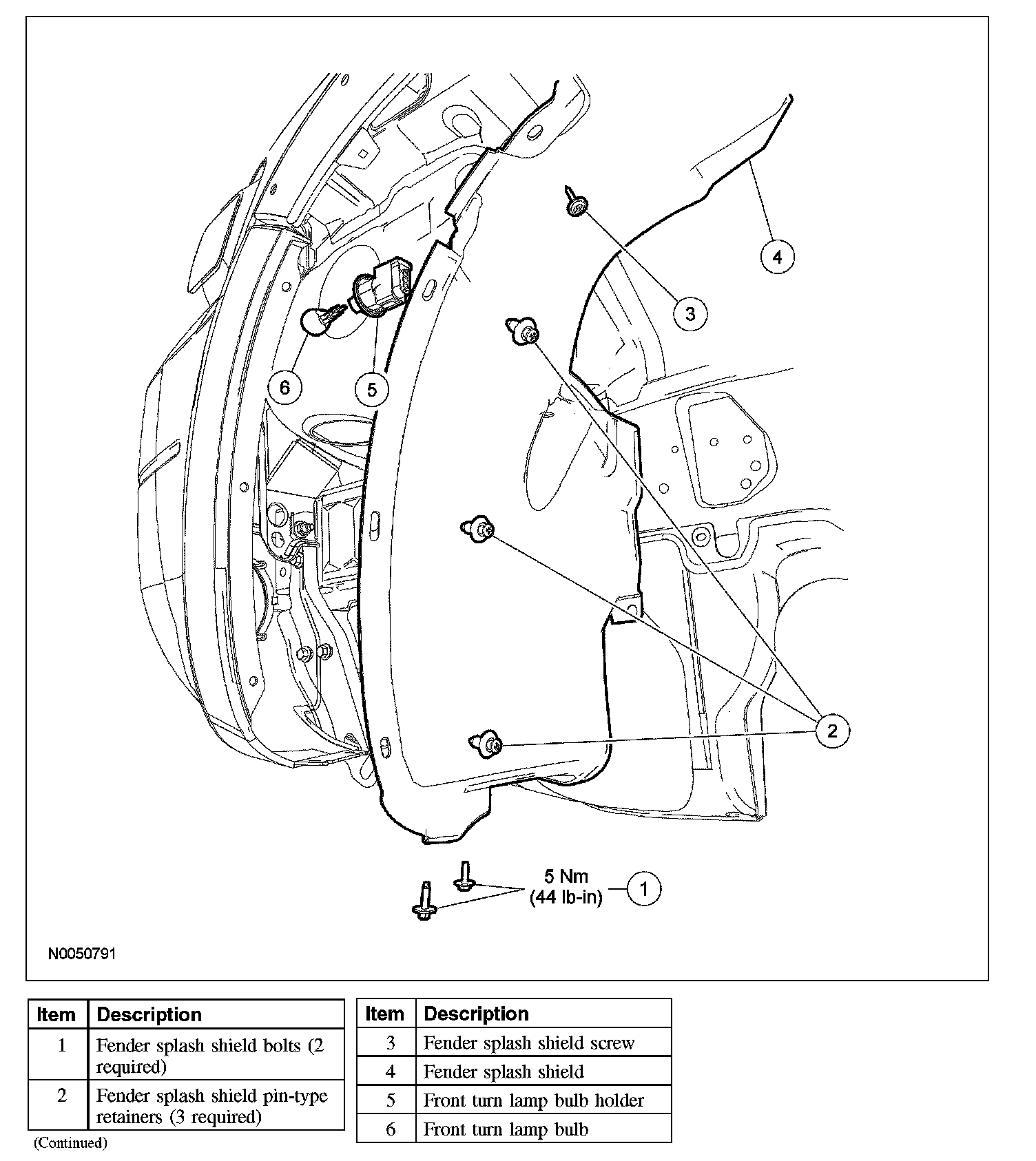

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Remove the 2 fender splash shield bolts.
- To install, tighten to 5 Nm (44 lb-in).

3. Remove the 3 fender splash shield pin-type retainers.
4. Remove the screw and position the fender splash shield aside.

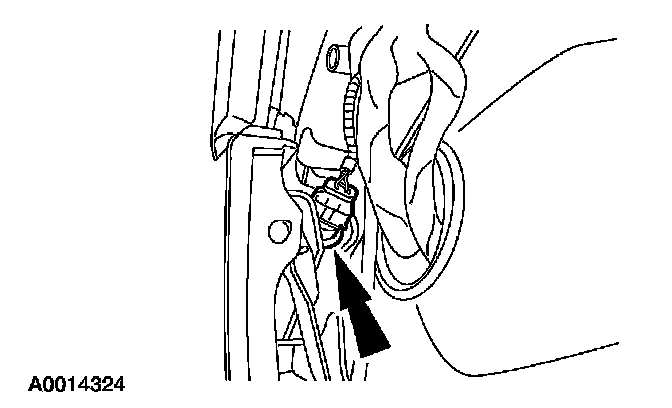

5. Remove the front turn lamp bulb holder from the lamp assembly.
6. Remove the front turn lamp bulb.
7. To install, reverse the removal procedure.
