Drive Belt: Service and Repair

Accessory Drive Belt

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Maintenance/Service and Repair.
2. Remove the 5 bolts and the RH splash shield.
^ To install, tighten to 9 Nm (80 inch lbs.)

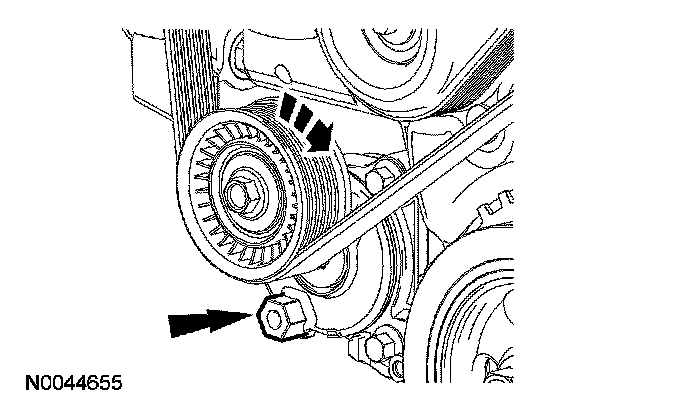

3. Using the hex feature, rotate the accessory drive belt tensioner clockwise and remove the accessory drive belt from the coolant pump pulley.
^ Remove the accessory drive belt from the engine.





4. To install, reverse the removal procedure.
