Flywheel

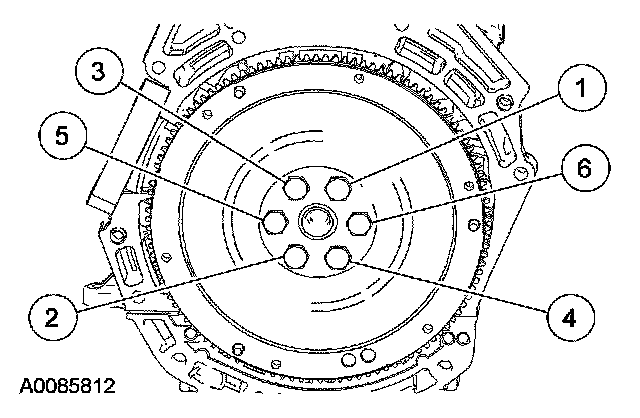

Flywheel Bolts

Special bolts are used for installation. Do not use standard bolts.

First pass 50 Nm (37 ft. lbs.)
Second pass 80 Nm (59 ft. lbs.)
Final pass 112 Nm (83 ft. lbs.)
