Synchronizers

Synchronizers

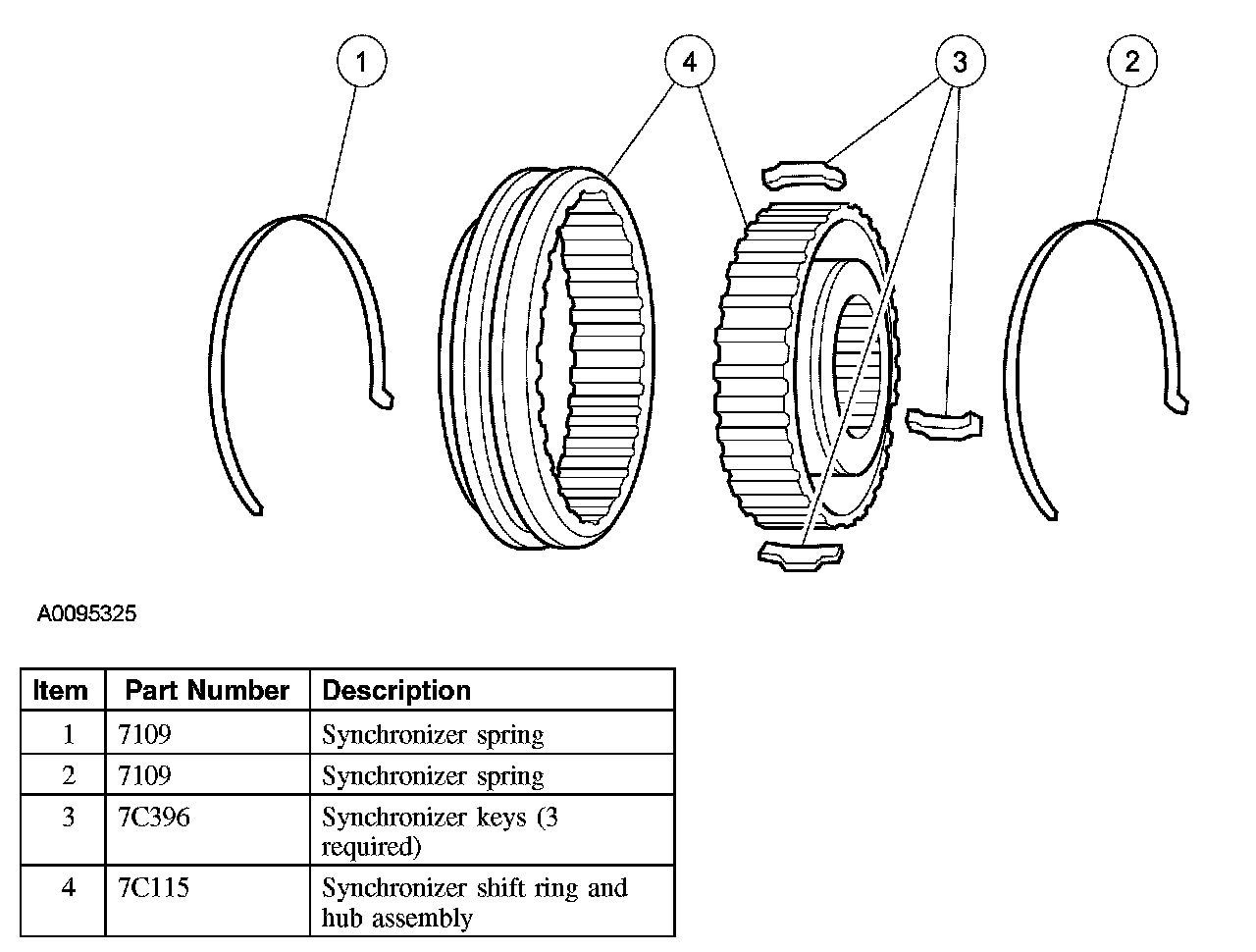

Disassembly
1. Remove the synchronizer springs.
2. Remove the 3 synchronizer keys.
3. Discard the synchronizer shift ring and hub assembly.

Assembly

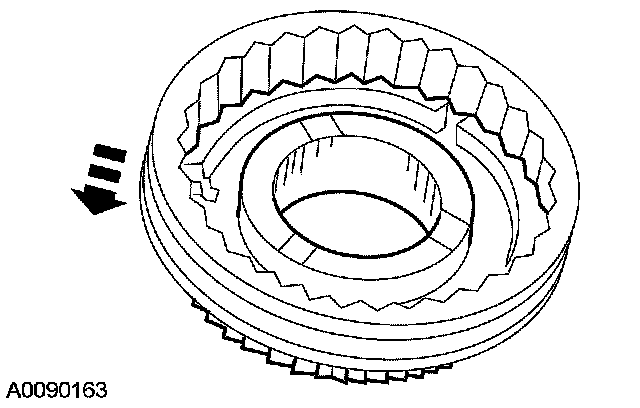

1. Inspect the new synchronizer shift ring and hub assembly for damage. Make sure they move freely.

2. Install the 3 synchronizer keys.

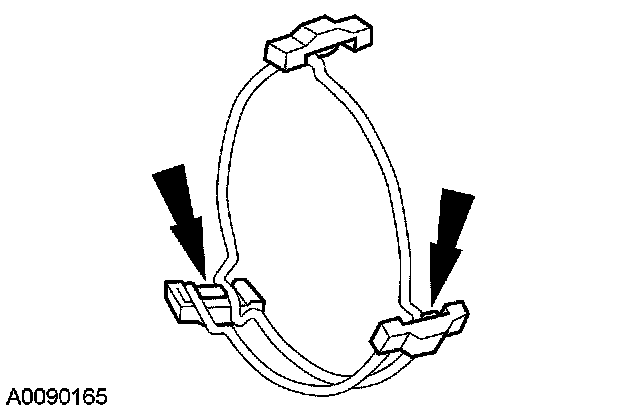

3. CAUTION: When assembling the synchronizer springs make sure the springs are offset from one another.

Install the synchronizer springs.
