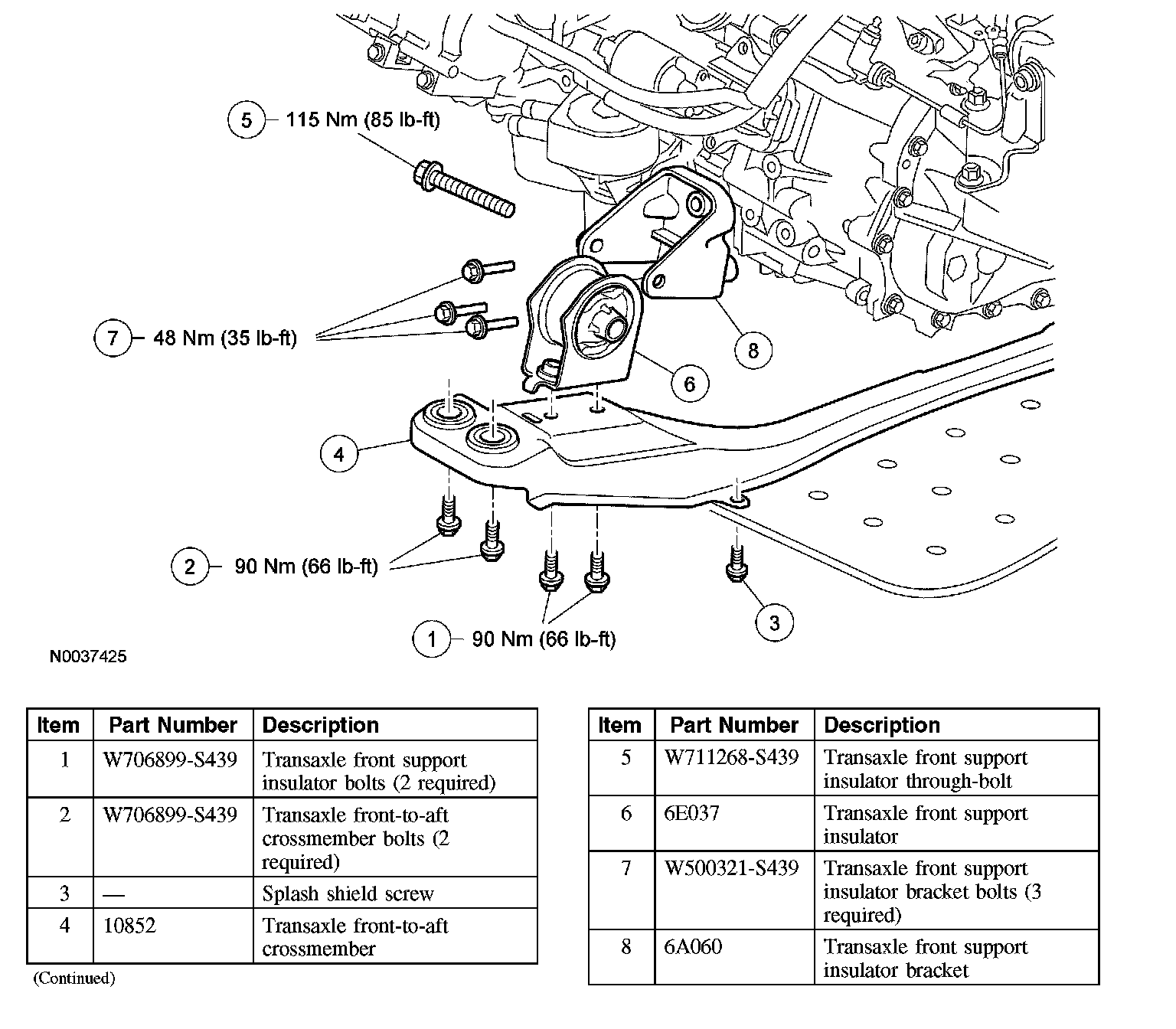

Transaxle Front Support Insulator
Transaxle Front Support InsulatorSpecial Tool(s):
Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Using the special tool, support the engine.

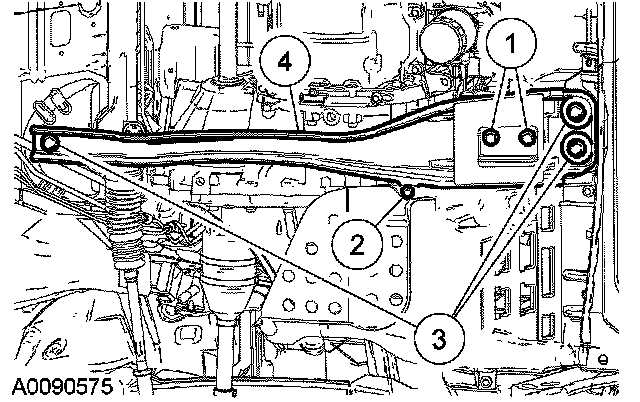

3. Remove the front-to-aft crossmember.
1. Remove the 2 transaxle front support insulator bolts.
^ To install, tighten to 90 Nm (66 ft. lbs.).
2. Remove the splash shield screw.
3. Remove the 2 front-to-aft crossmember bolts and the nut.
^ To install, tighten bolts to 90 Nm (66 ft. lbs.).
^ To install, tighten nut to 175 Nm (129 ft. lbs.).
4. Remove the crossmember.
4. Remove the through-bolt and the transaxle front support insulator.
^ To install, tighten to 115 Nm (85 ft. lbs.).
5. If necessary, remove the 3 bolts and the transaxle front support insulator bracket.
^ To install, tighten to 48 Nm (35 ft. lbs.).
6. To install, reverse the removal procedure.
