Timing Cover

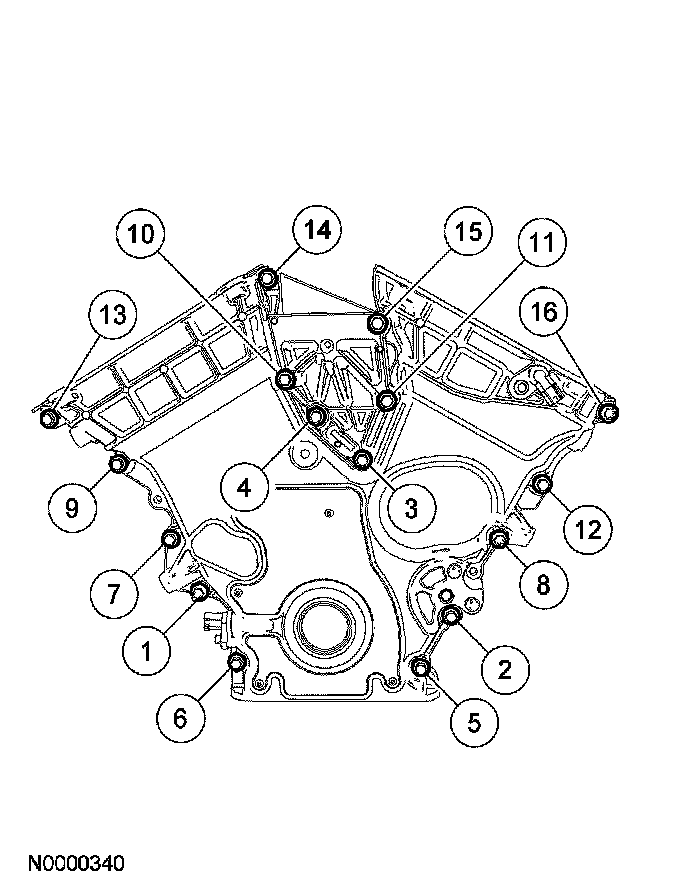

Engine front cover bolts 25 Nm (18 ft. lbs.)Fasteners 1, 8 and 16 are stud bolts.
Crankshaft Pulley Bolt
First pass 120 Nm (89 ft. lbs.)
Second pass Loosen one full turn
Third pass 50 Nm (37 ft. lbs.)
Final pass Tighten 90°
Fasteners 1, 8 and 16 are stud bolts.
Crankshaft Pulley Bolt
First pass 120 Nm (89 ft. lbs.)
Second pass Loosen one full turn
Third pass 50 Nm (37 ft. lbs.)
Final pass Tighten 90°
