Power Mirror Motor: Service and Repair

EXTERIOR MIRROR MOTOR

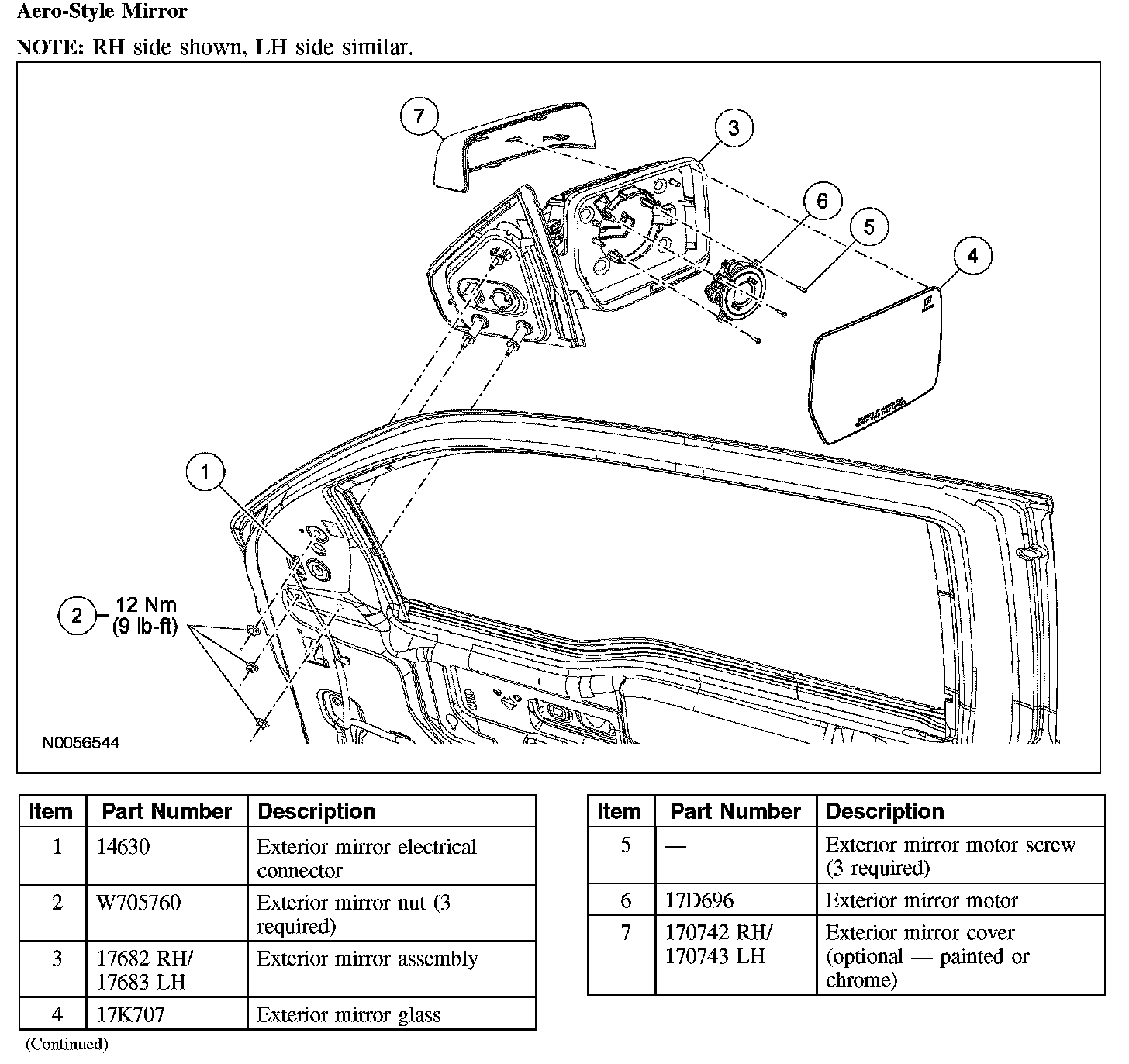

Aero-Style Mirror:

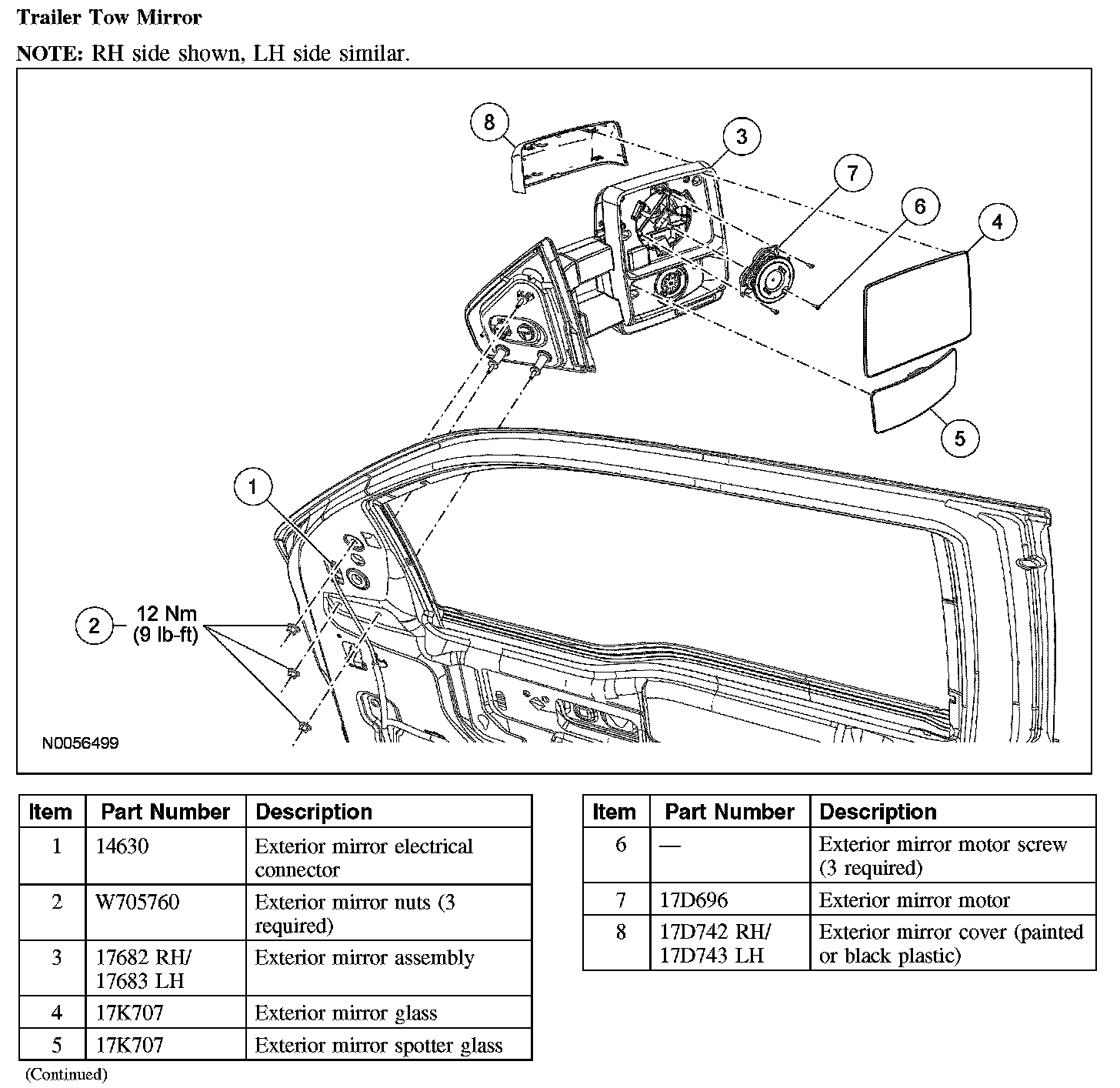

Trailer Tow Mirror:






Exploded View


Removal and Installation

NOTE: If equipped with power folding mirrors, they must be synchronized any time the mirrors have been folded or unfolded without using the mirror control switch. Refer to Exterior Mirror Motor Synchronization - Power Folding.

1. Remove the exterior rear view mirror glass.
2. Remove the 3 exterior rear view mirror motor screws.
3. Disconnect the exterior rear view mirror motor electrical connector.
4. Remove the exterior rear view mirror motor.
5. To install, reverse the removal procedure.
- If equipped, synchronize the power folding mirrors. Refer to Exterior Mirror Motor Synchronization - Power Folding.
