Wheel Speed Sensor Rear

Wheel Speed Sensor Rear

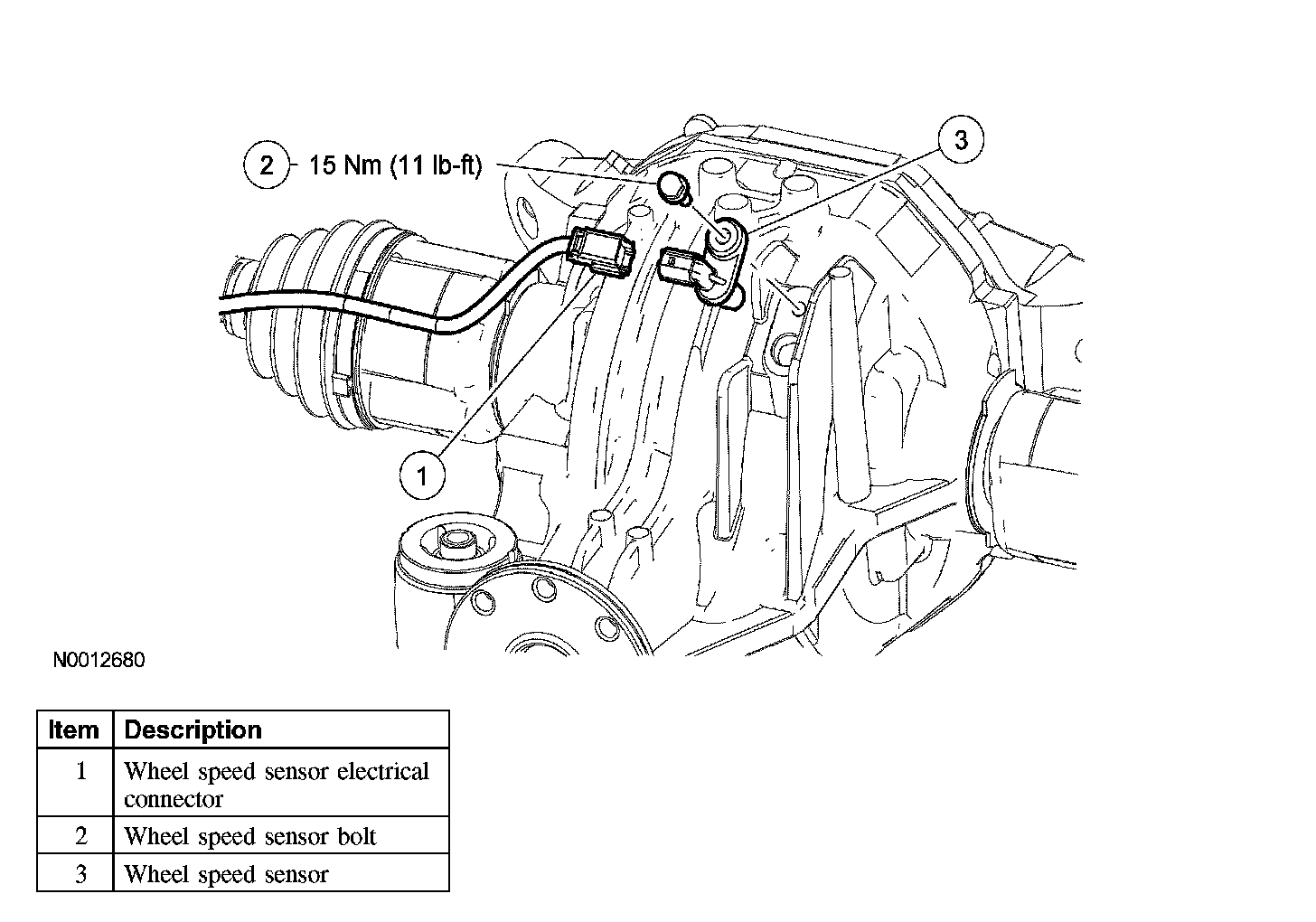

Removal and Installation
1. Disconnect the battery ground cable.
2. With the vehicle in NEUTRAL, position it on a hoist.
3. Disconnect the wheel speed sensor electrical connector.
4. Remove the wheel speed sensor bolt.
^ To install, tighten to 15 Nm (11 ft. lbs.).

5. NOTE: Install a new O-ring before installing the rear axle speed sensor.

Remove the wheel speed sensor.
6. To install, reverse the removal procedure.
