Connector Location Index
PLEASE NOTE: If a link on the Connector Location Index to a View is not provided, that means that the Connector and/or View in question does NOT apply to the vehicle model selected.

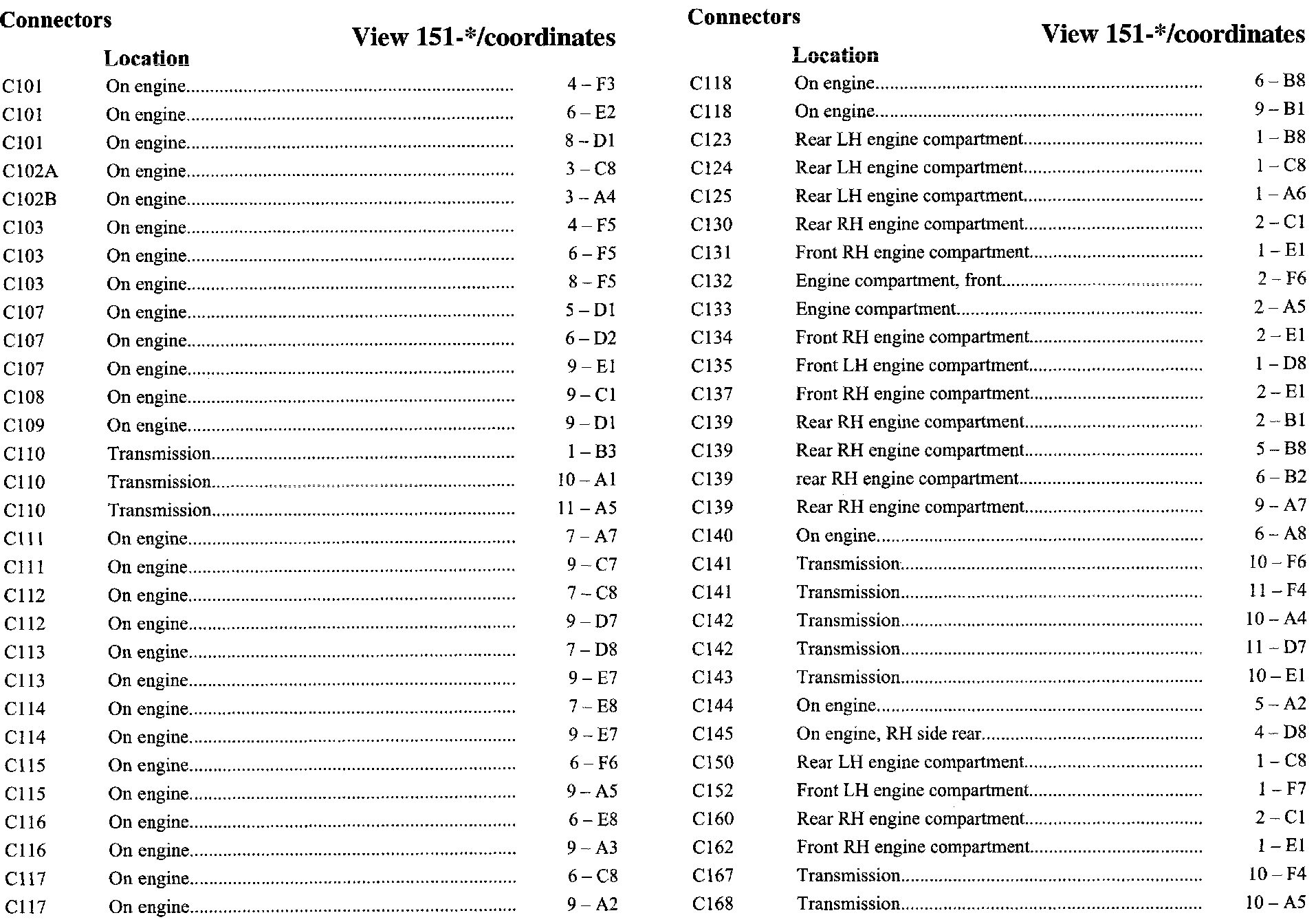

C101-C168:

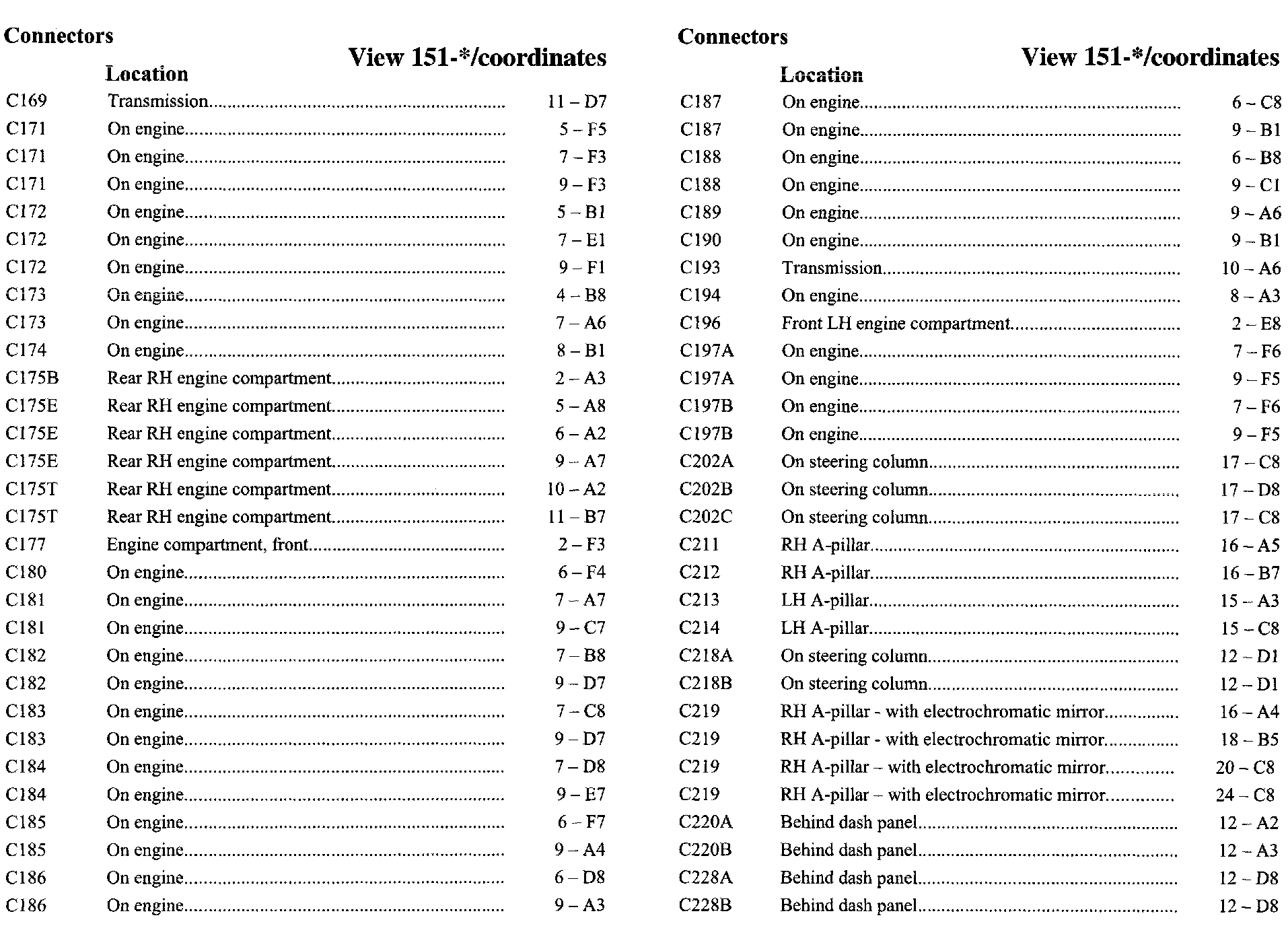

C169-C228B:

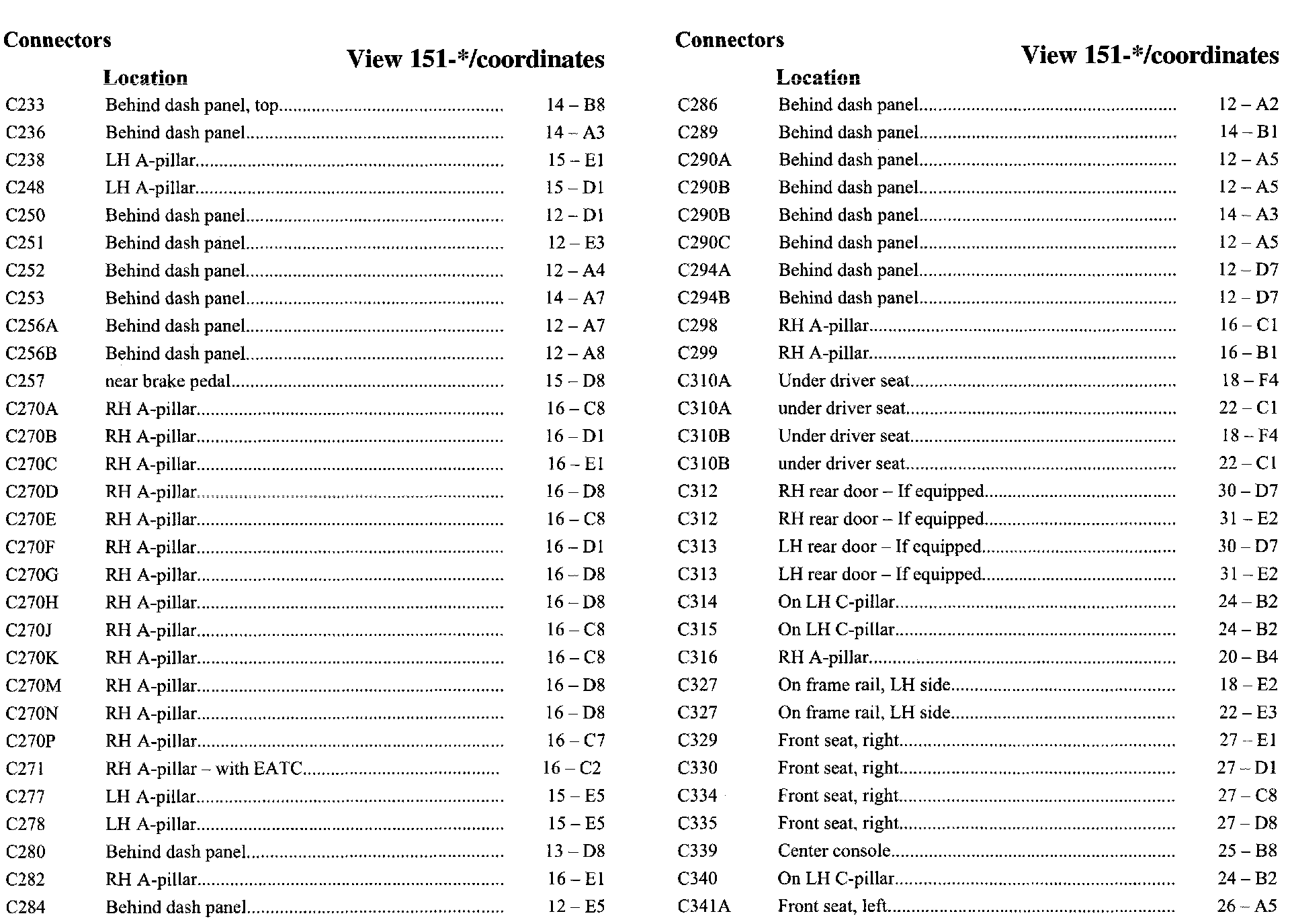

C233-C341A:

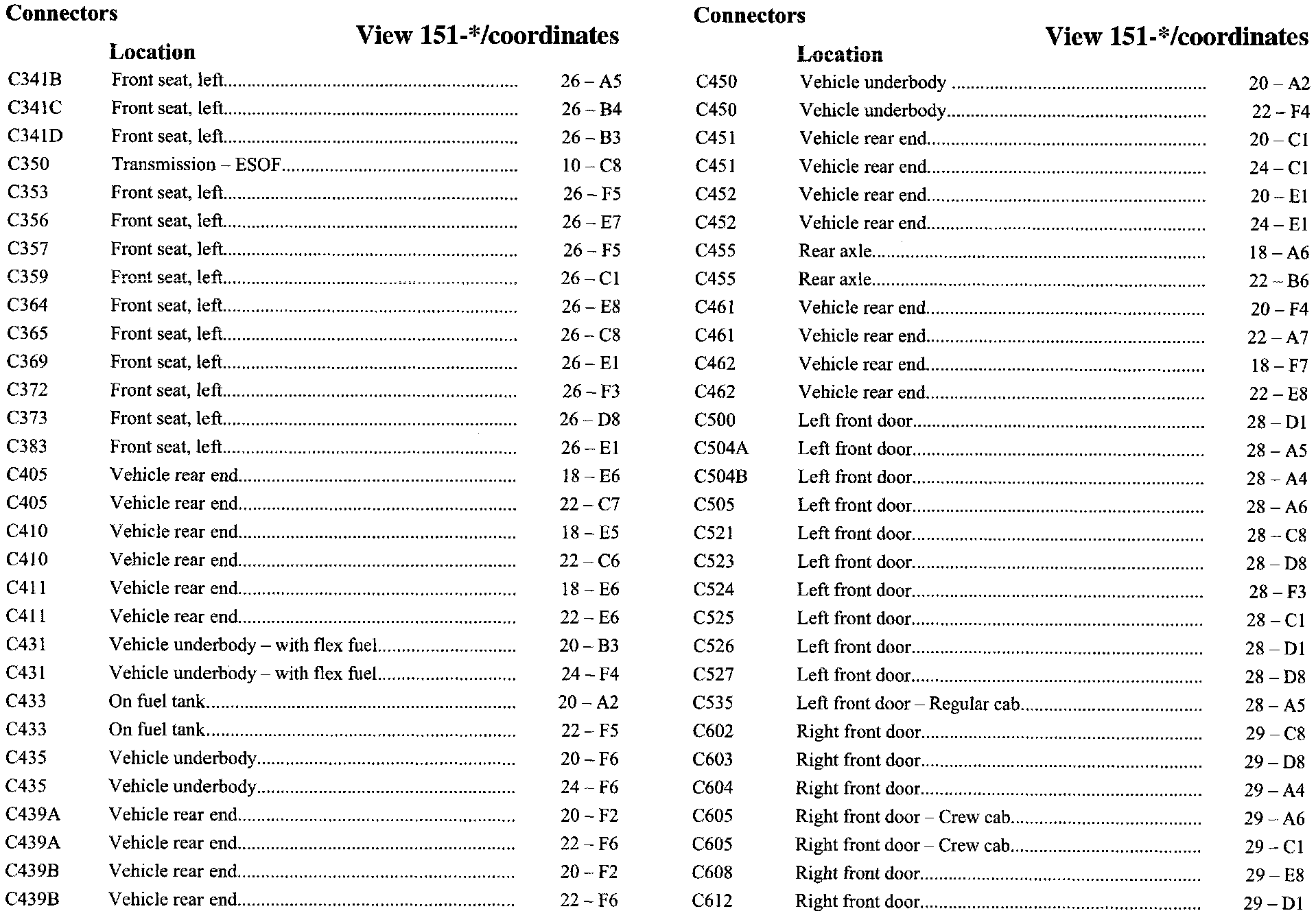

C341B-C612:

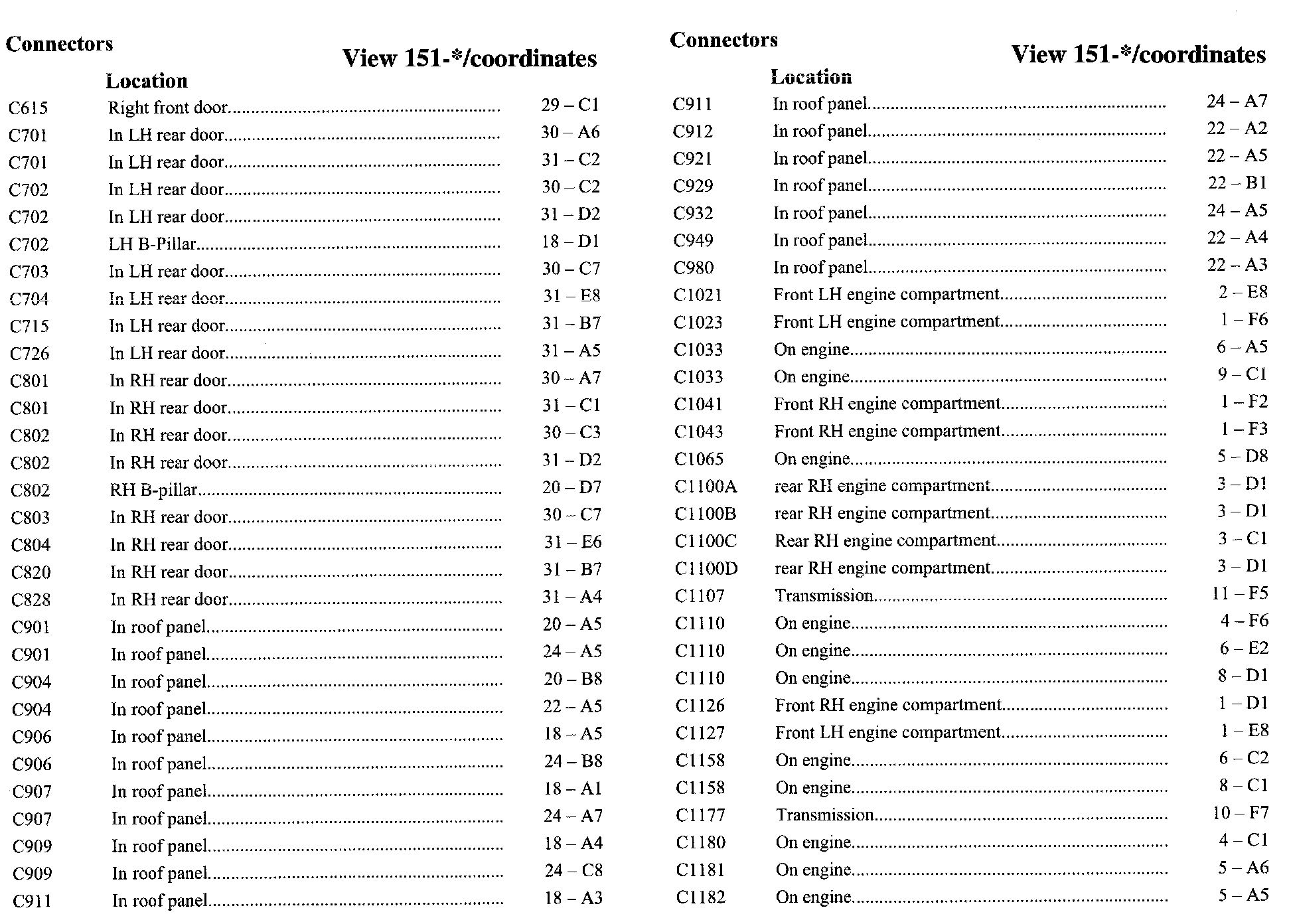

C615-C1182:

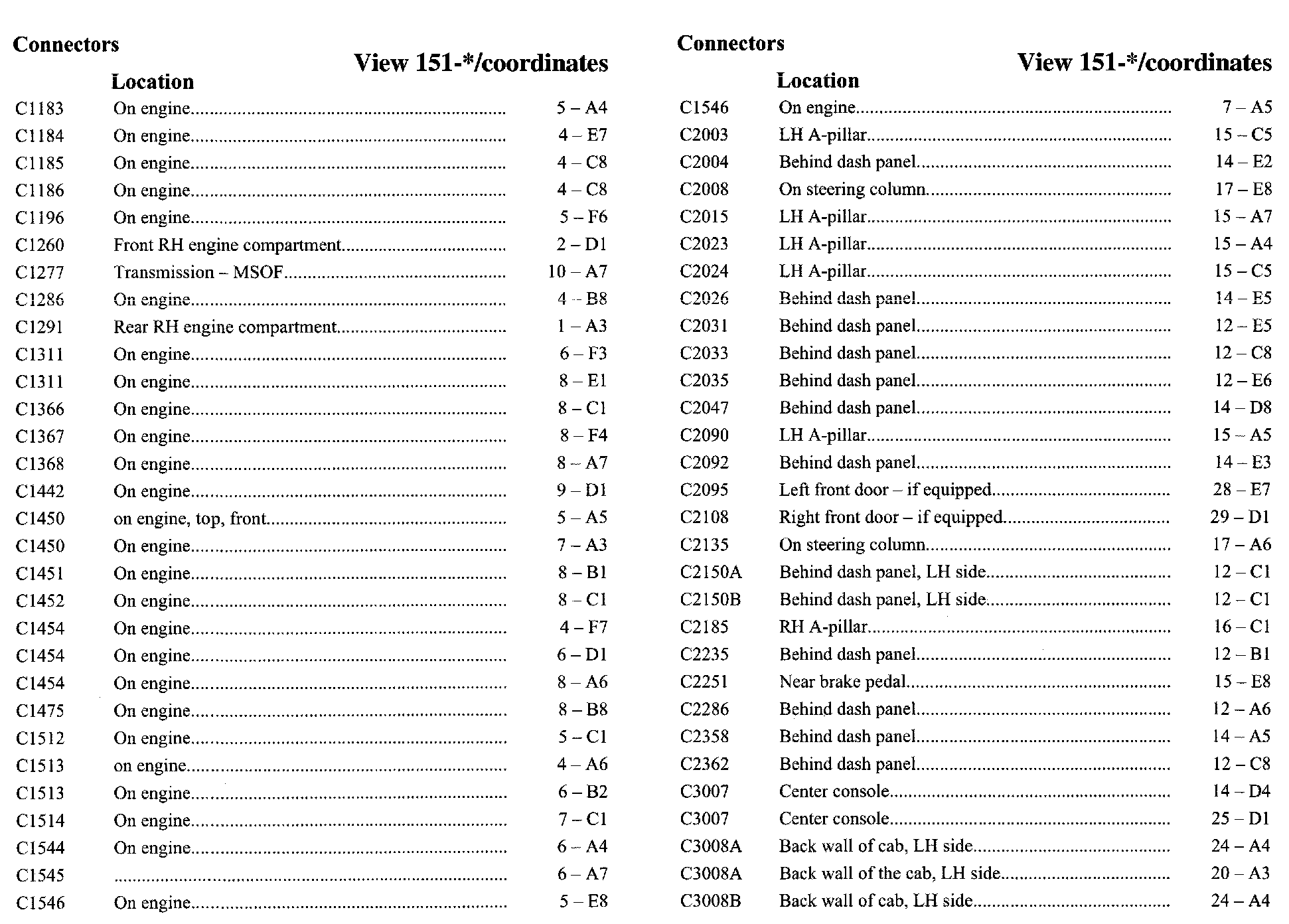

C1183-C3008B:

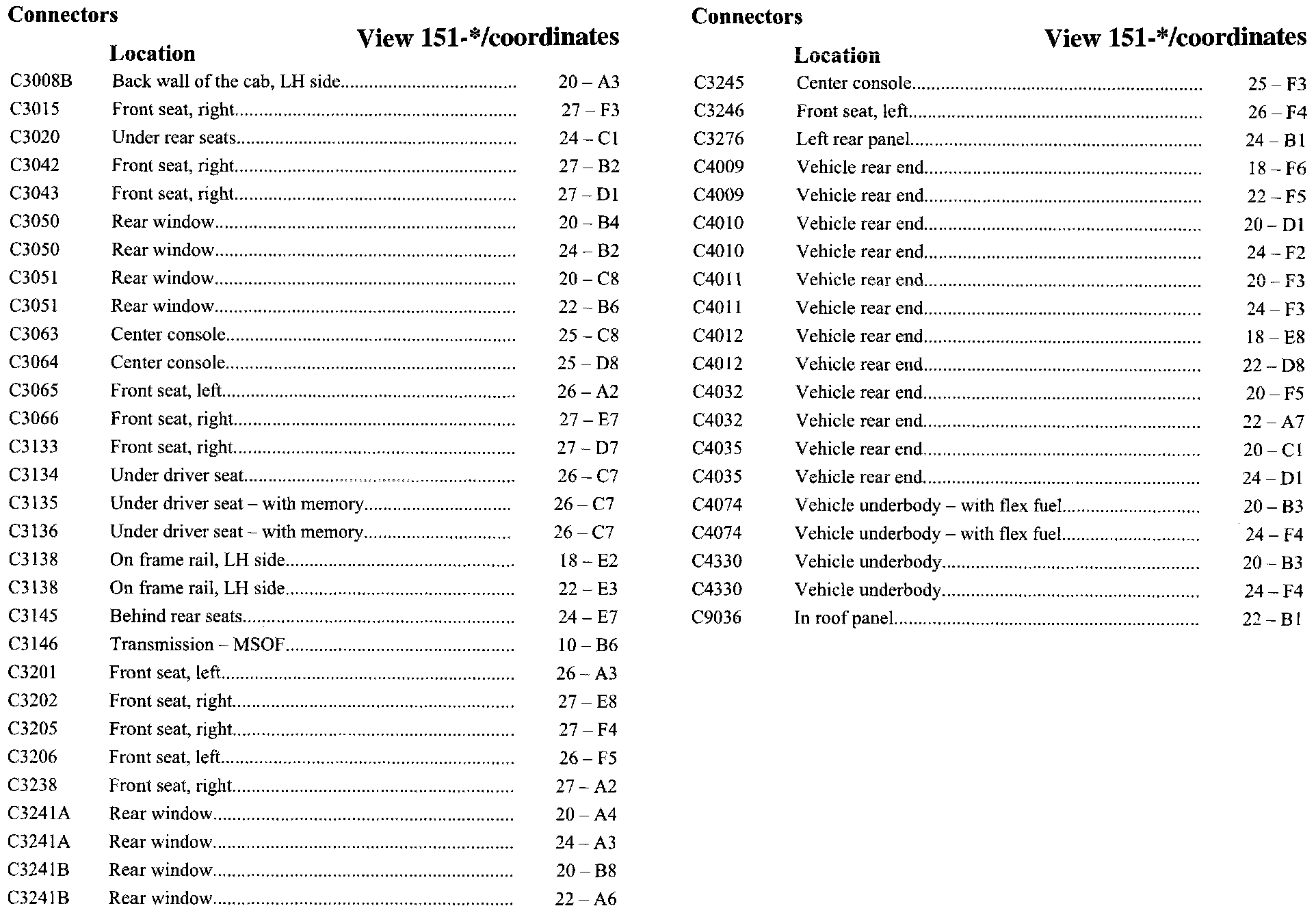

C3008B-C9036:
