Fuel Pressure Sensor/Switch: Service and Repair

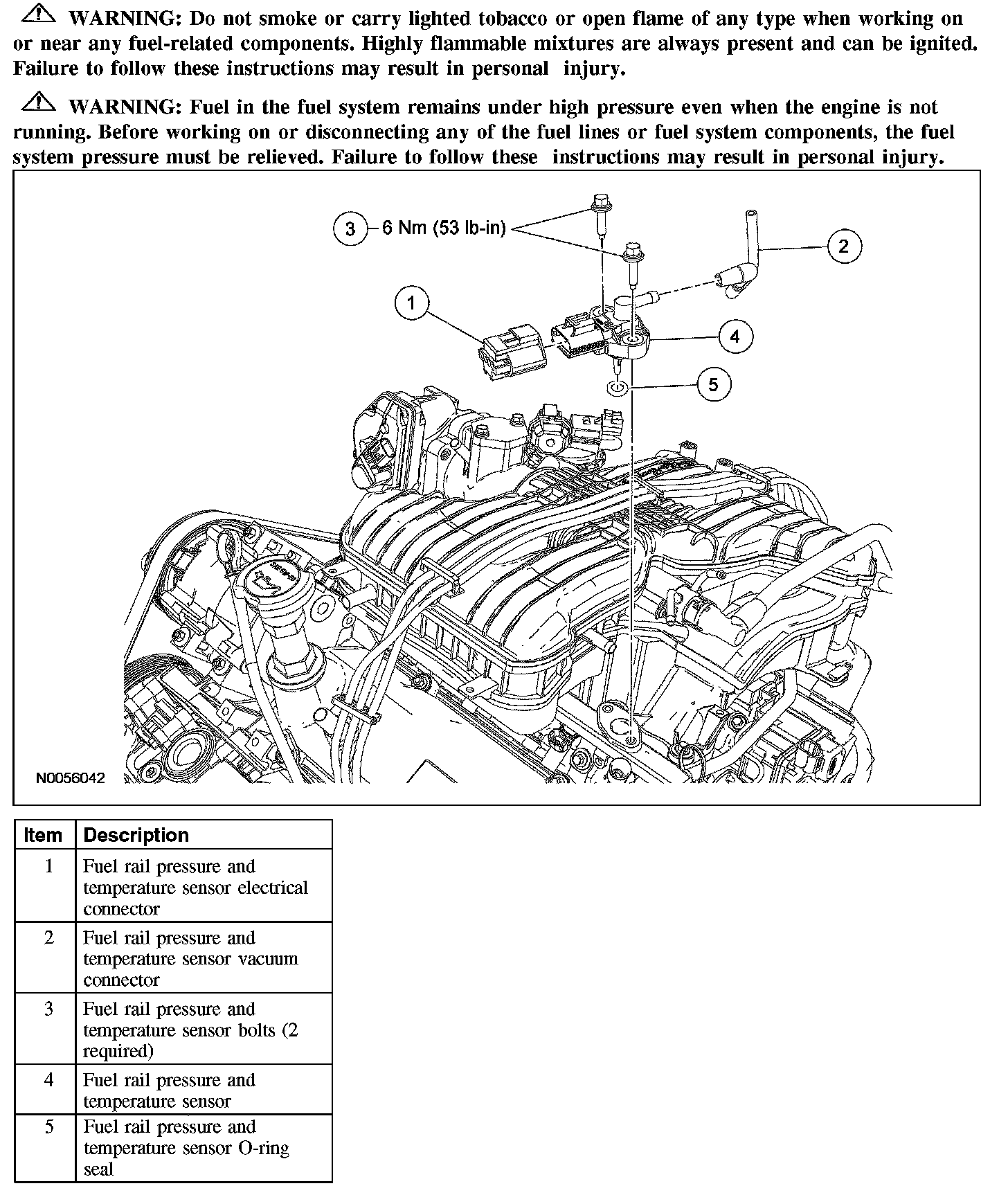

FUEL RAIL PRESSURE AND TEMPERATURE SENSOR







Removal and Installation
1. Release the fuel system pressure.
2. Disconnect the fuel rail pressure and temperature sensor electrical connector.
3. Disconnect the fuel rail pressure and temperature sensor vacuum connector.
4. Remove the bolts and the fuel rail pressure and temperature sensor.
- To install, tighten to 6 Nm (53 lb-in).

5. Remove and discard the O-ring seal.
- Install a new O-ring seal and lubricate with clean engine oil prior to installation.

6. To install, reverse the removal procedure.
