Front Door Window Glass: Service and Repair

WINDOW GLASS - FRONT DOOR







Exploded View

Removal and Installation
1. Remove the front door trim panel.
2. Remove the front door interior moulding.
3. Remove the front door watershield.
4. Remove the front door below belt bracket bolt and bracket.
- To install, tighten to 10 Nm (89 lb-in).

5. Remove the front door window glass-to-regulator assembly bolts.
- To install, tighten to 9 Nm (80 lb-in).

6. Lower the front door window regulator to the full downward position.

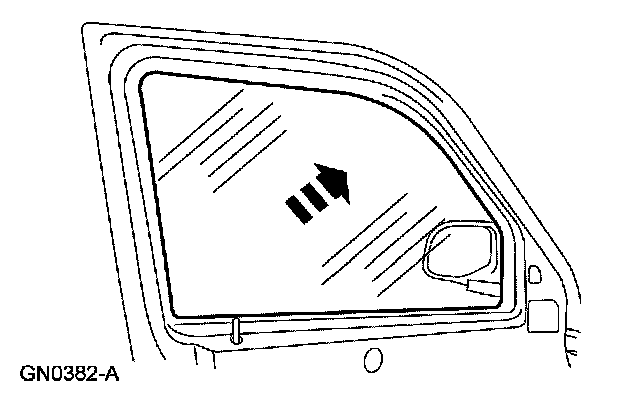

7. Pull the front door window glass out through the top outboard side of the door.
8. To install, reverse the removal procedure.
