Windshield Washer Switch: Service and Repair

Steering Column Multifunction Switch





Removal and Installation
1. Remove the steering wheel.
2. Remove the lower steering column shroud screw.

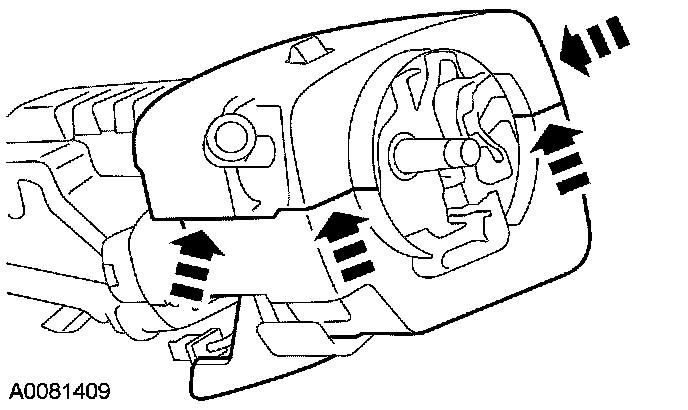

3. Apply inward pressure to the upper and lower shroud cover seam to separate them and remove the lower shroud.





4. Remove the 2 screws and the upper steering column shroud.

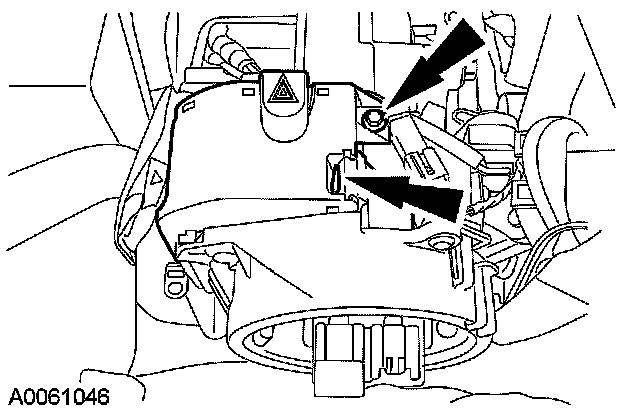

5. Remove the screw, release the tab and position the multi-function switch aside.





6. Disconnect the multi-function switch electrical connector.
7. Remove the multi-function switch.
8. To install, reverse the removal procedure.
