Wiper Arm: Service and Repair

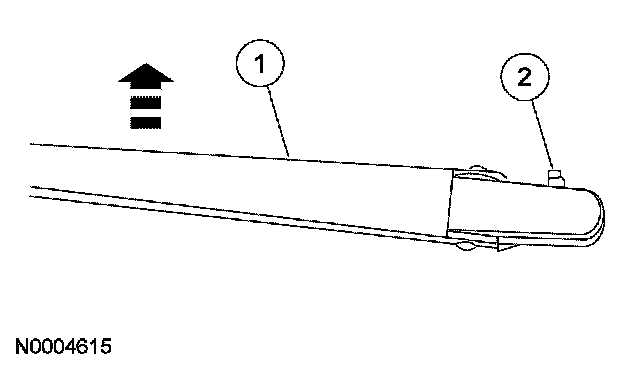

WIPER PIVOT ARMRemoval and Installation 1.
Remove the wiper pivot arm.
1
Pull up on the pivot arm.
2
Pull out on the retaining tab and remove the pivot arm.
2.
NOTE: The windshield wiper motor must be cycled to make sure that it is in the park position. If necessary, adjust the wiper pivot arms.
To install, reverse the removal procedure.
