Engine Temperature Sensor: Service and Repair

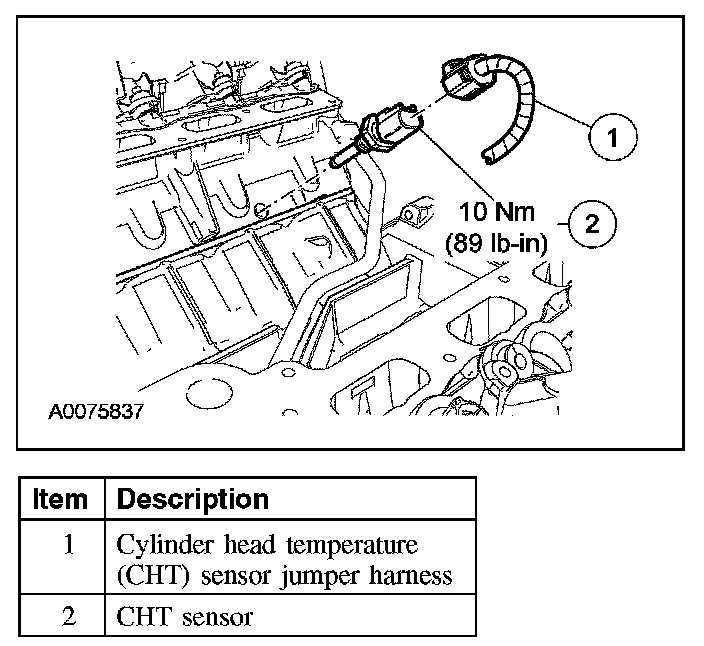

CYLINDER HEAD TEMPERATURE (CHT) SENSORadd image
Removal and Installation 1.
Remove the intake manifold.
2.
Disconnect the cylinder head temperature (CHT) sensor electrical connector.
3.
Remove the CHT.
-
To install, tighten to
10 Nm (89 lb-in).
4.
To install, reverse the removal procedure.
-
Apply anti-seize to the threads of the CHT sensor.
