Door Latch Remote Control - Front

DOOR LATCH REMOTE CONTROL - FRONT

Removal and Installation
1. Remove the interior front door handle.
2. Remove the interior door handle cup.

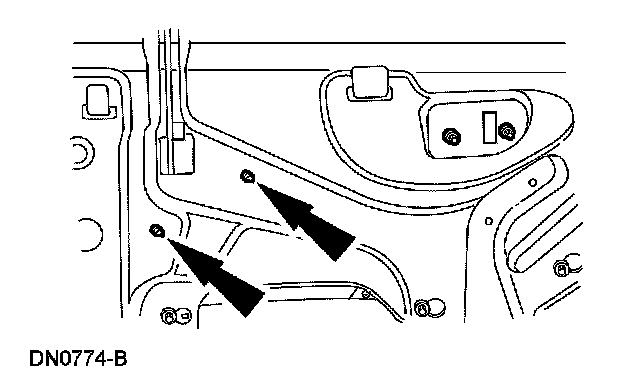

3. Release the front door latch actuating cable locators.
4. Remove the front door latch remote control.
- Disconnect the cable conduit.
- Disconnect the cable.

5. To install, reverse the removal procedure.
