Cruise Control Switch: Service and Repair

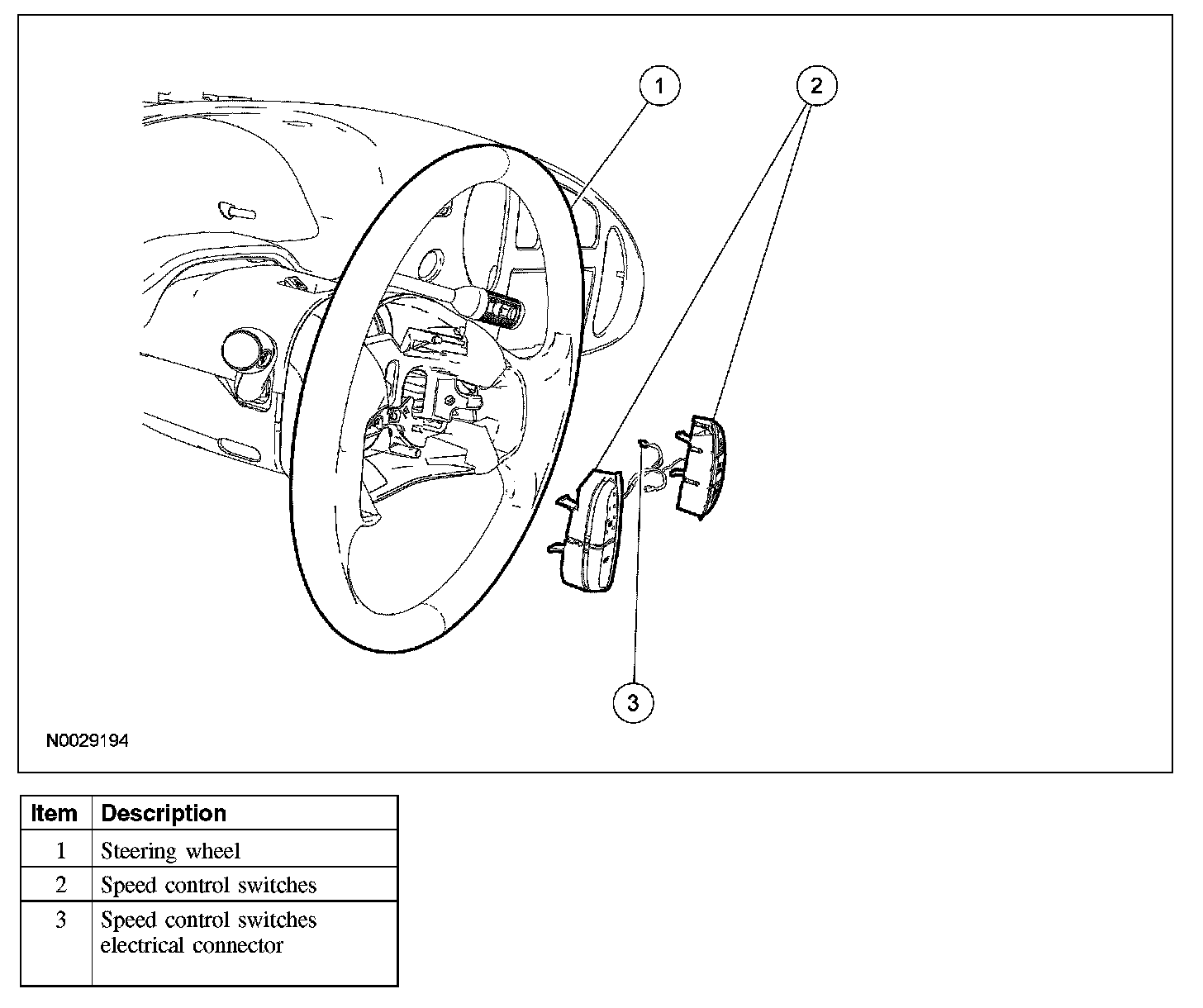

SPEED CONTROL SWITCH







Removal and Installation

All vehicles
1. Remove the driver air bag module.

Vehicles without remote audio controls
2. Release the tabs and remove the speed control switches.
- Cut the wire ties.
- Disconnect the electrical connector.

Vehicles with remote audio controls

3. CAUTION: When removing the speed control switch, be careful not to damage the leather wrap tied around the switch.

Cut the wire ties and remove the speed control switch.
- Disconnect the electrical connectors.

All vehicles
4. NOTE: New wire ties need to be installed when this procedure is complete to secure the steering wheel harness.

To install, reverse the removal procedure.
