Test F: The Vehicle Security Module Does Not Respond to the Scan Tool

PINPOINT TEST F: THE VEHICLE SECURITY MODULE DOES NOT RESPOND TO THE SCAN TOOL

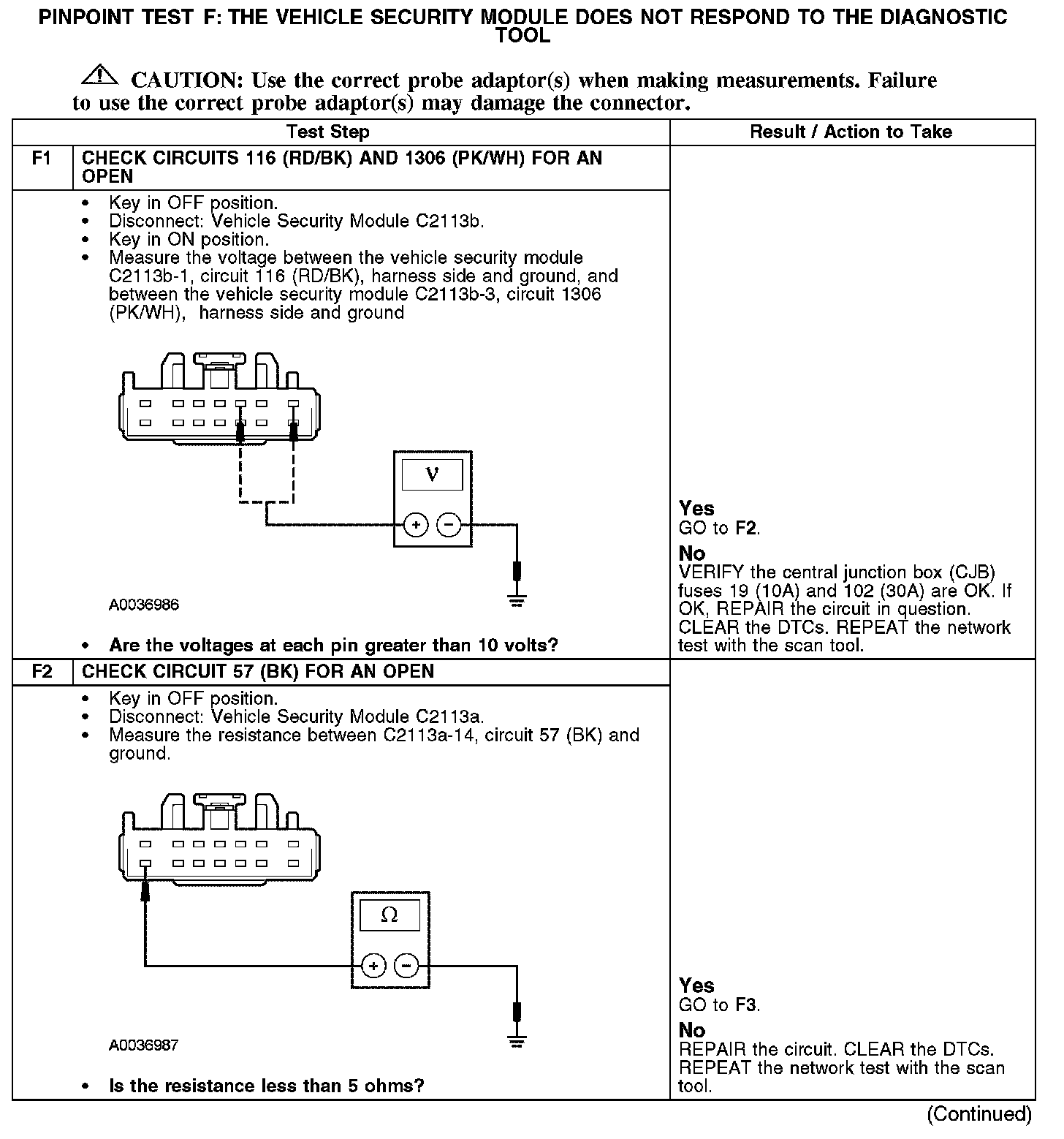

F1-F2:

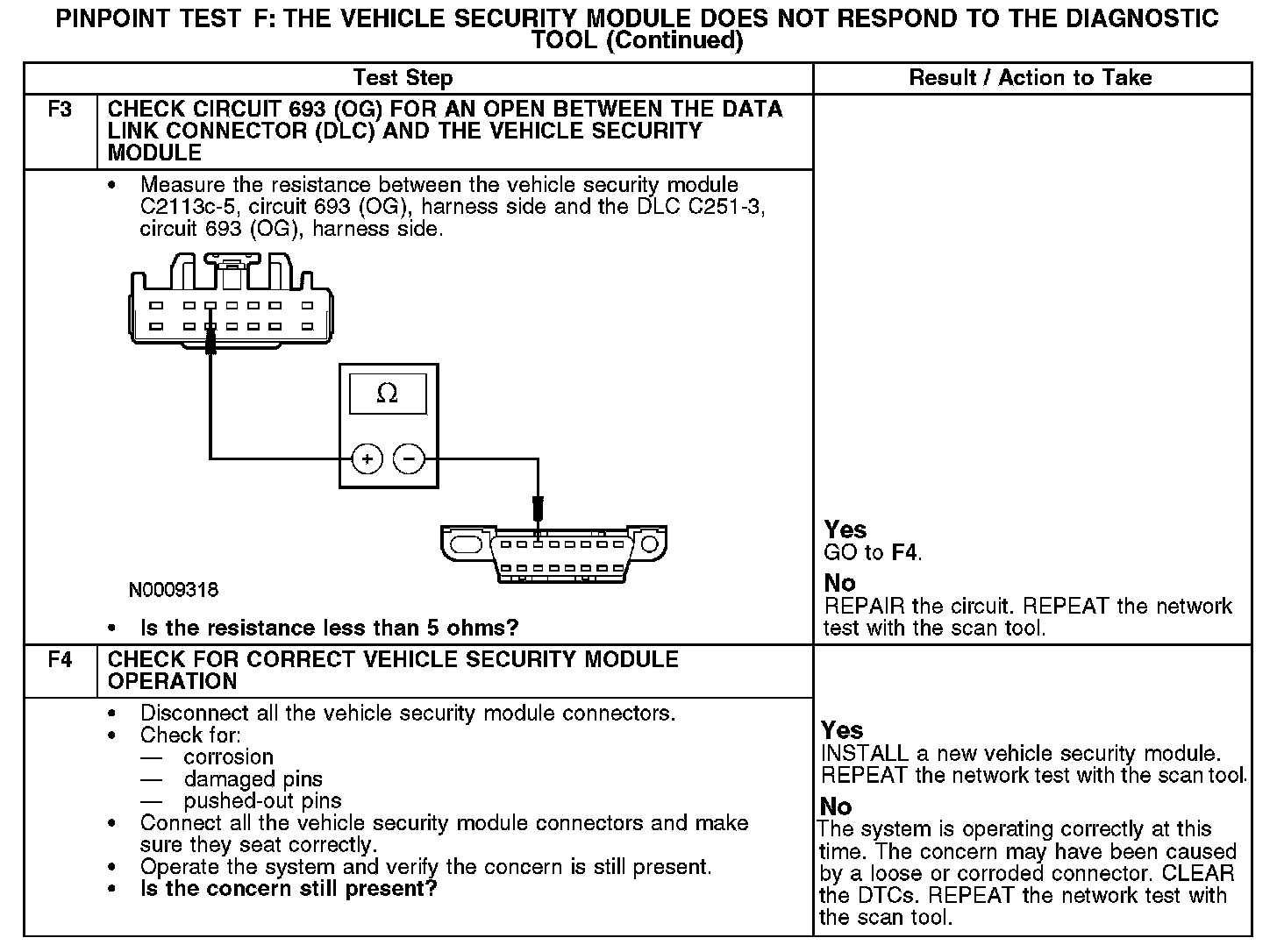

F3-F4:

Normal Operation
The vehicle security module communicates with the scan tool through the UBP communication network. Circuit 693 (OG) provides the network connection to the vehicle security module. The vehicle security module shares the UBP network with the electronic automatic temperature control (EATC) module and the instrument cluster. Voltage for the vehicle security module is provided by circuits 116 (RD/BK) and 1306 (PK/WH). Circuit 57 (BK) provides ground.

Possible Causes
- Fuse
- Circuit 57 (BK) open
- Circuit 116 (RD/BK) open
- Circuit 1306 (PK/WH) open
- Circuit 693 (OG)
- Vehicle security module
