Electronic Brake Control Module: Service and Repair

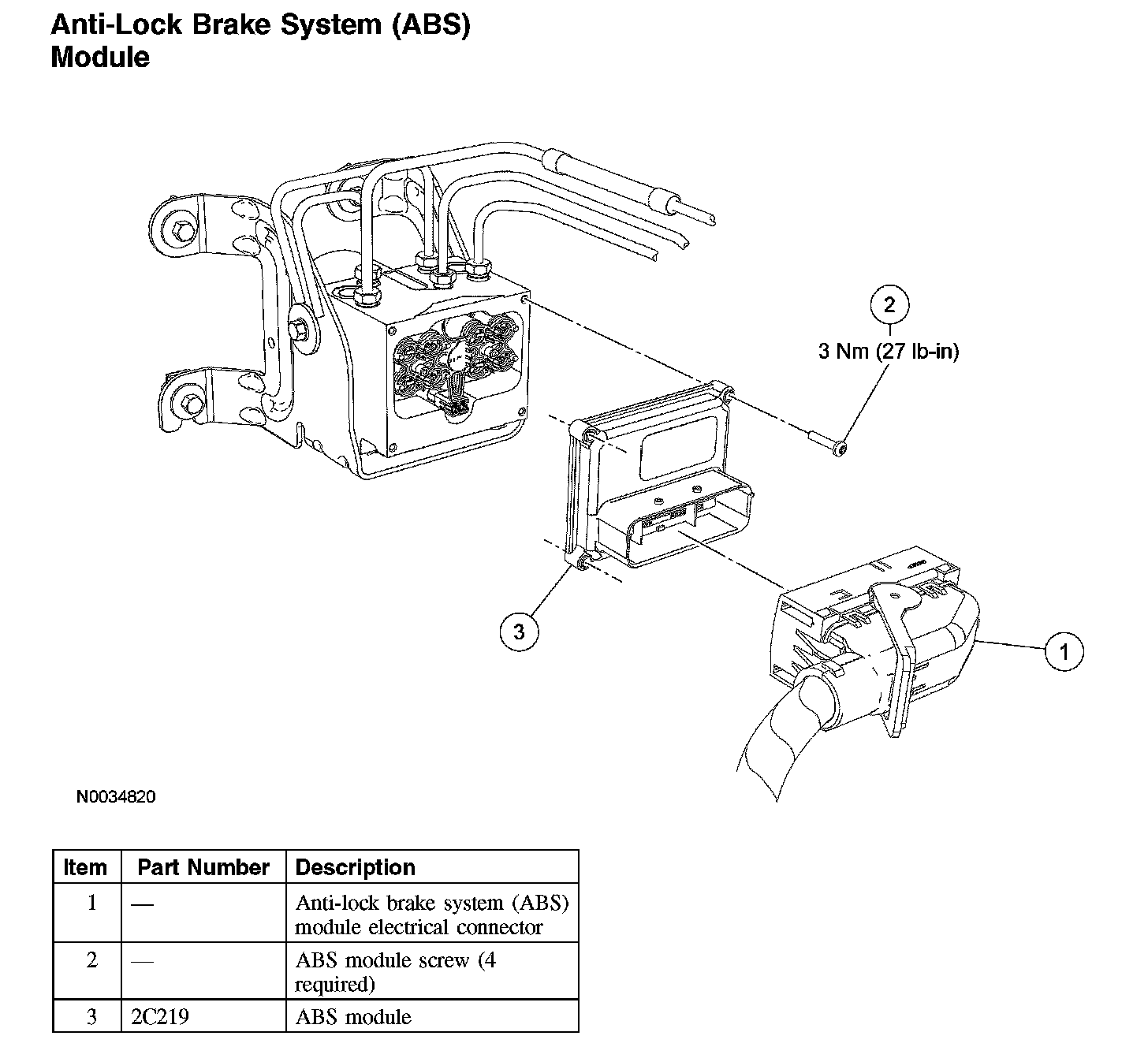

Anti-Lock Brake System (ABS) Module Removal and Installation 1.
Disconnect the battery ground cable.
2.
Push the lock forward and release the ABS electrical connector.
3.
Remove the screws and the ABS module.
^
To install, tighten to
3 Nm (27 inch lbs.).
4.
To install, reverse the removal procedure.
