Trailer Brake Control Module: Service and Repair

Trailer Brake Control (TBC) Module

Trailer Brake Control (TBC) Module:





Removal

NOTE: If the manual control lever knob is missing, a separate service part is available, the entire module does not need to be replaced.

1. Remove the instrument cluster finish panel.

2. CAUTION: Do not use any tools to remove the trailer brake control module. If tools are used, damage to the module may result.

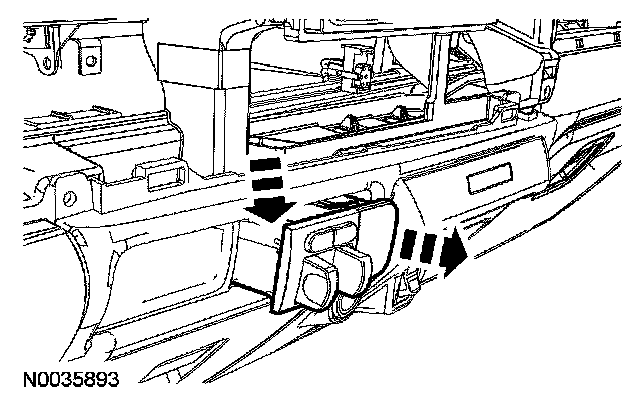

Press down on the tab and push the trailer brake control (TBC) module part-way out of the instrument panel.





3. CAUTION: There is a detent on the TBC module clip that will contact the instrument panel. Do not use excessive force during removal or damage to the module or instrument panel may result.

CAUTION: Do not push or pry on the plastic face of the module. Do not use tools to remove the TBC module.

Grasp the TBC module just behind the plastic face and, while carefully pushing down, pull the TBC module out of the instrument panel.





4. Disconnect the 2 TBC module electrical connectors.

Installation
1. Connect the 2 TBC module electrical connectors.

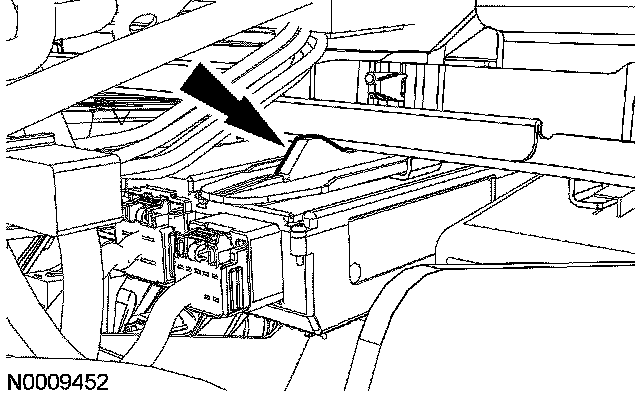

2. NOTE: The locking tab on the top of the TBC module must be aligned with the support bracket inside the instrument panel for correct module installation and retention.

Align the TBC module locking tab with the support bracket inside the instrument panel and install the module





3. Install the instrument cluster finish panel.
