Steering Linkage - Exploded View

Steering Linkage - Exploded View

F-250, F-350, Rear Wheel Drive (RWD)

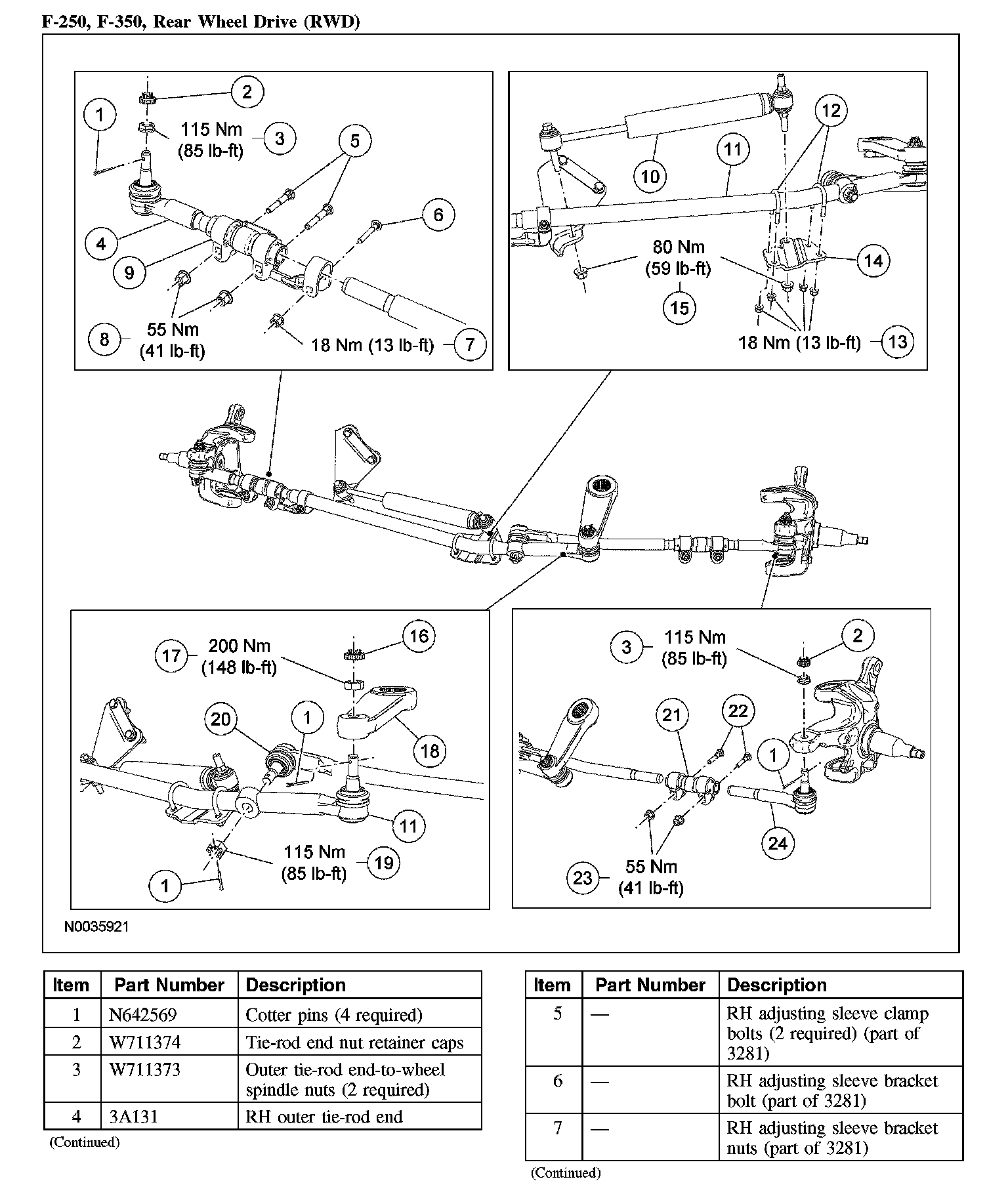

F-250, F-350, Rear Wheel Drive (RWD) (Part 1):

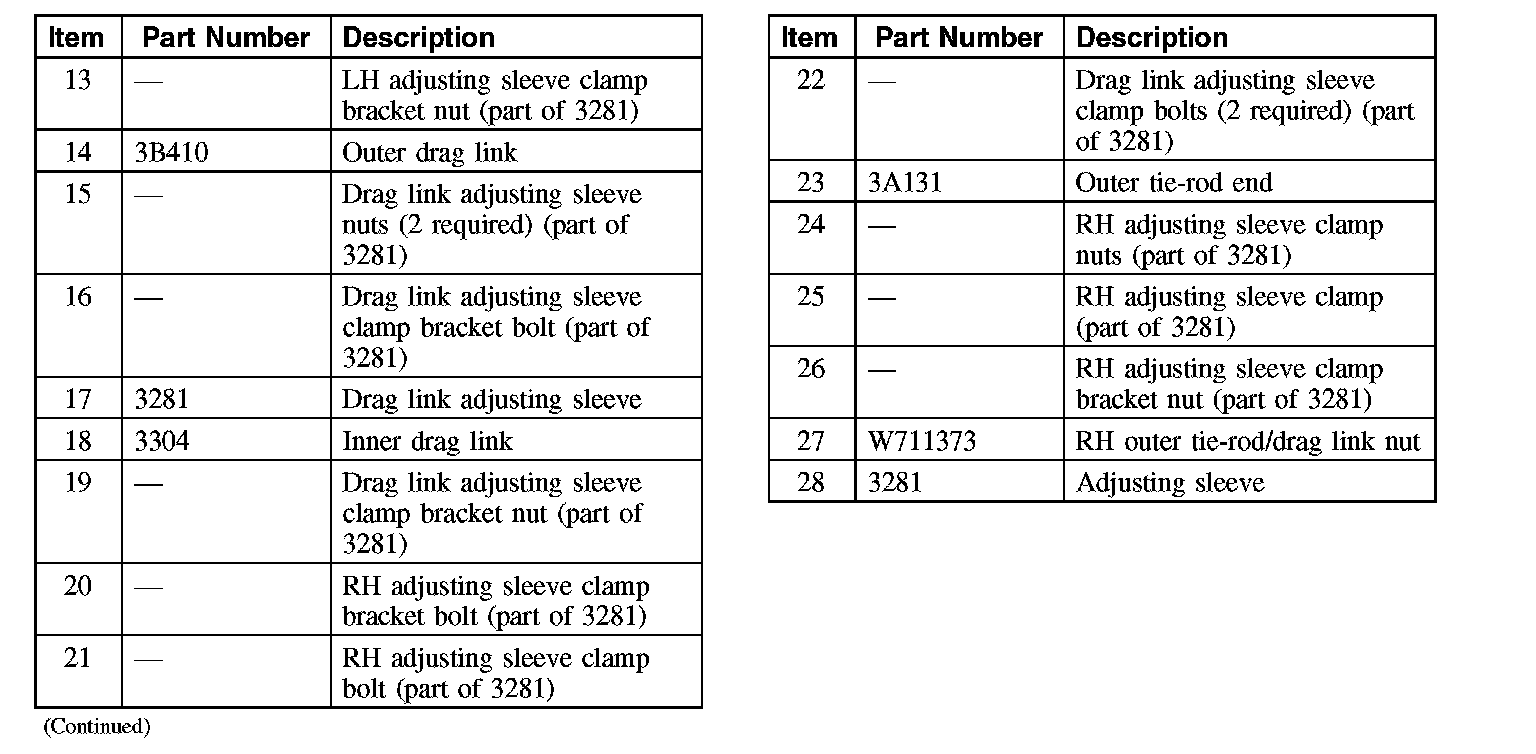

F-250, F-350, Rear Wheel Drive (RWD) (Part 2):





F-250, F350, - Four Wheel Drive (RWD) and F450-F550

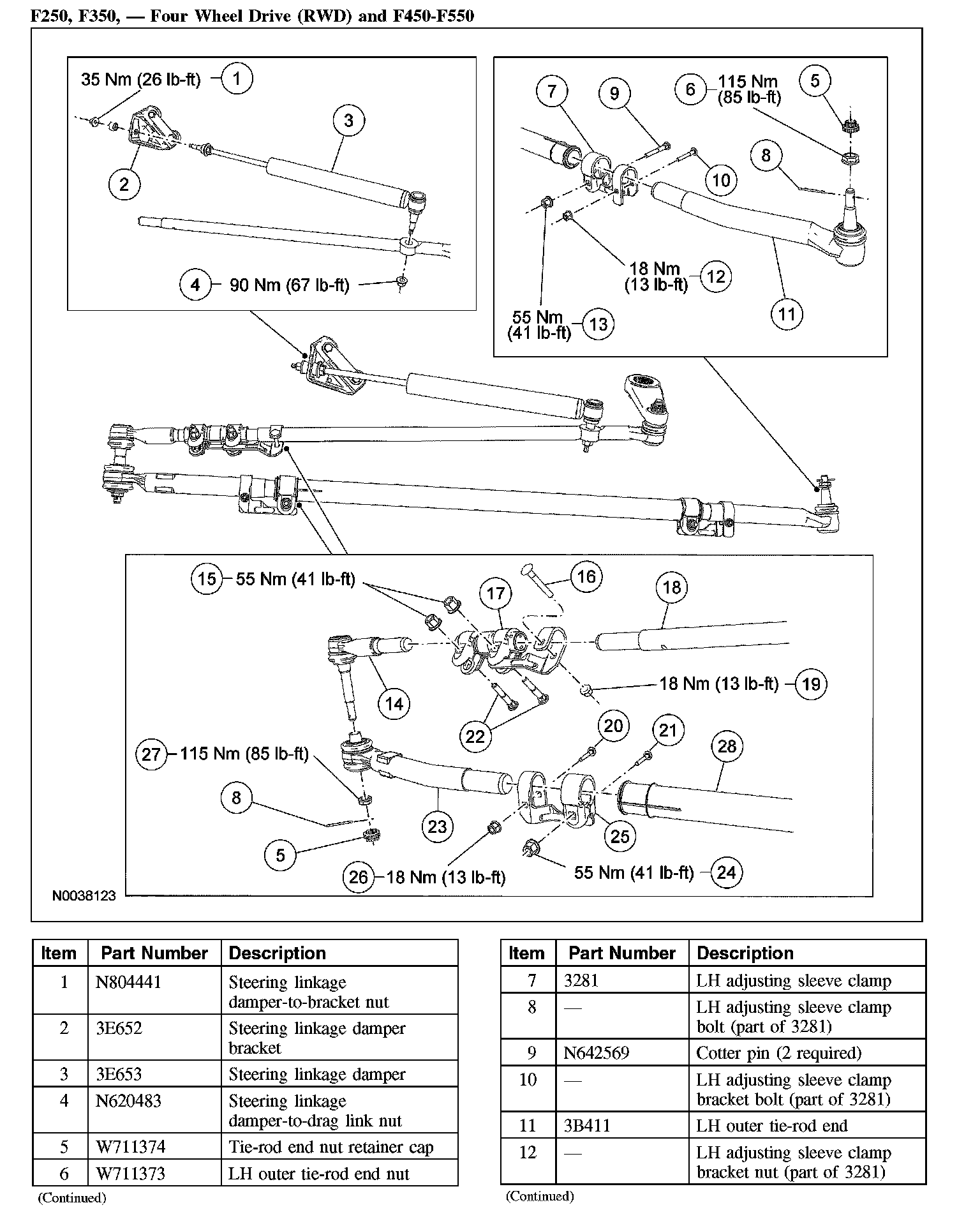

F250, F350, - Four Wheel Drive (RWD) and F450-F550 (Part 1):

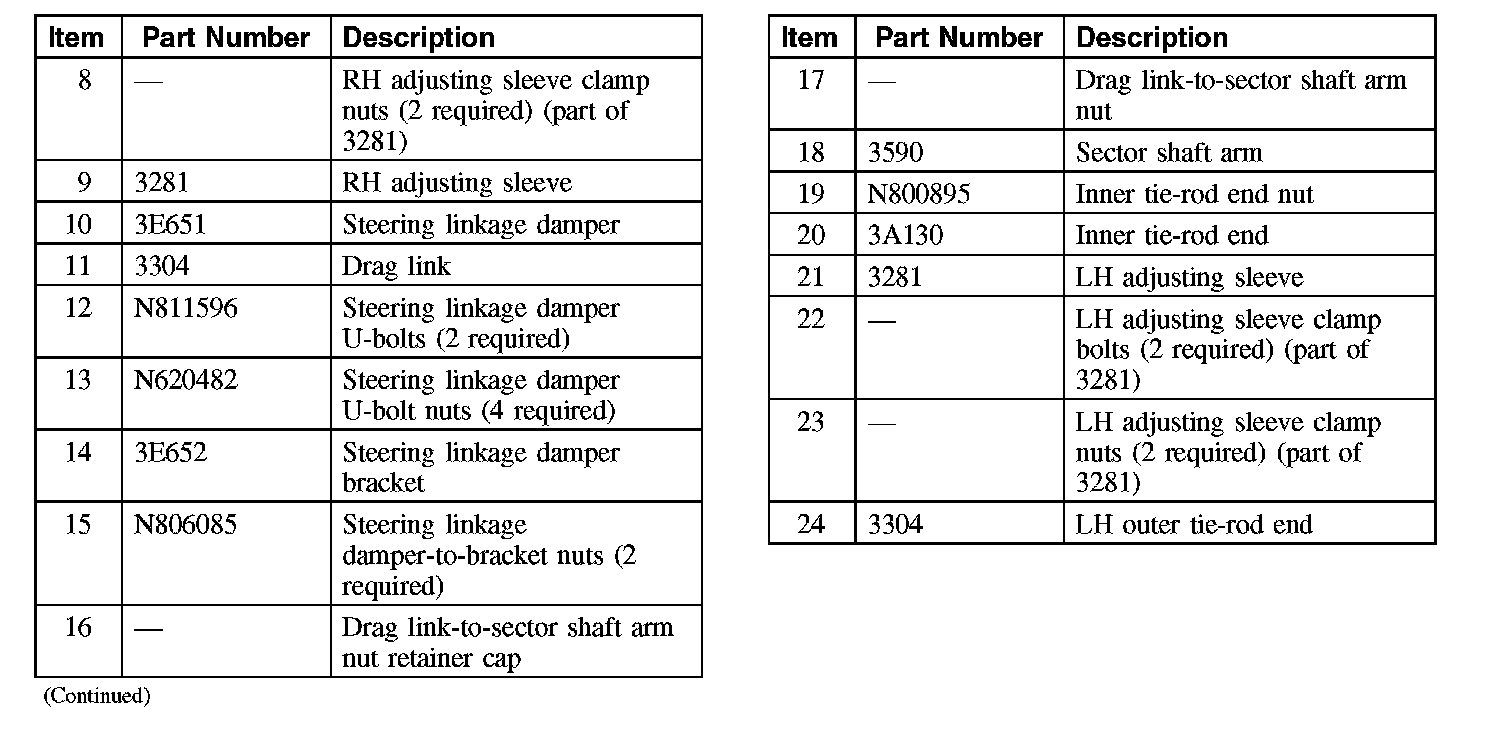

F250, F350, - Four Wheel Drive (RWD) and F450-F550 (Part 2):
