Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2007
>>
Focus L4-2.0L VIN N
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Diagnostic Trouble Code Tests and Associated Procedures
>>
Instrument Cluster
>>

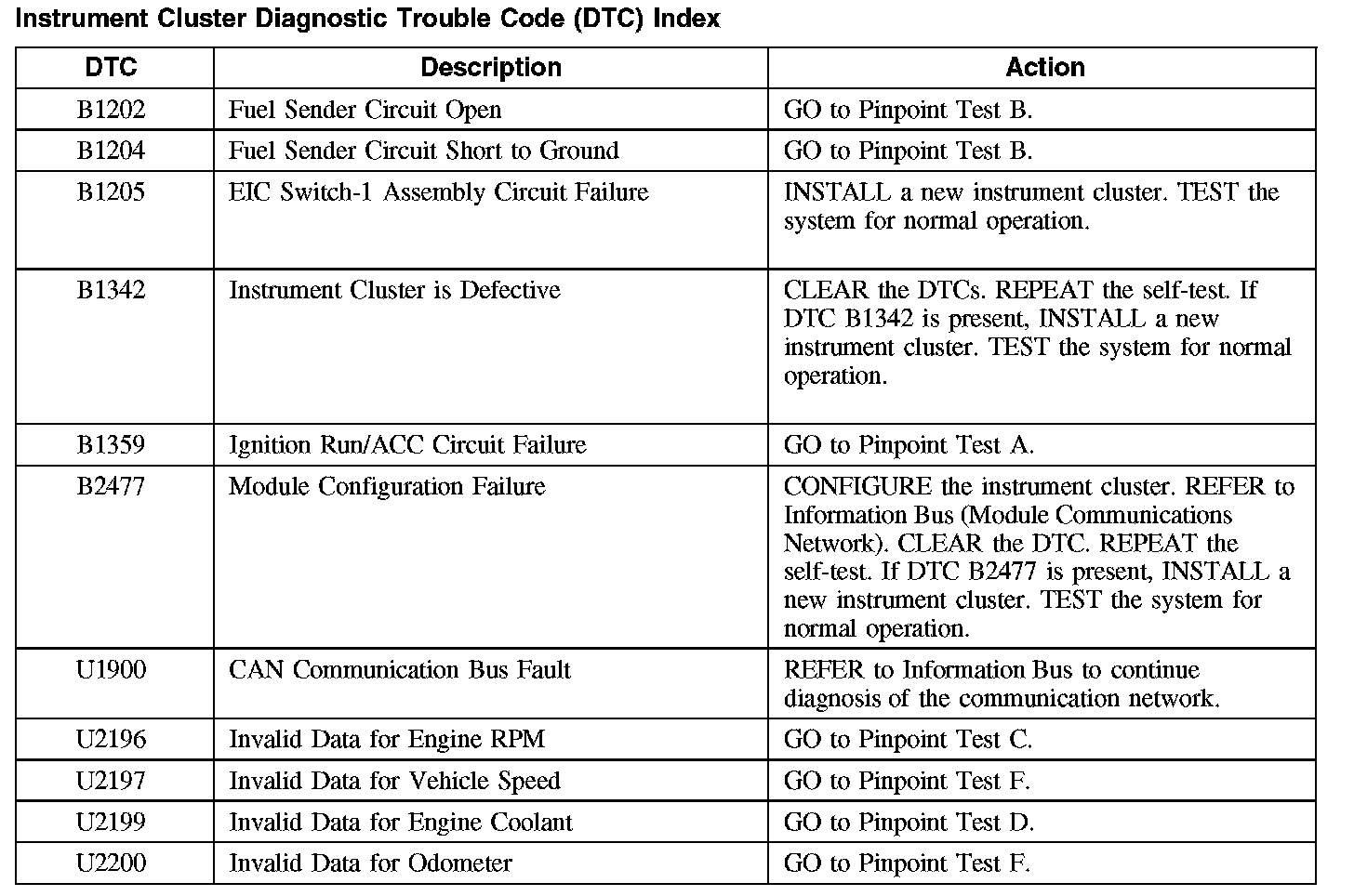

Instrument Cluster DTC Chart
Instrument Cluster DTC Chart
B1202-B2477 / U1900-U2200:
