Drum Brake Specification

Drum Brake Specification

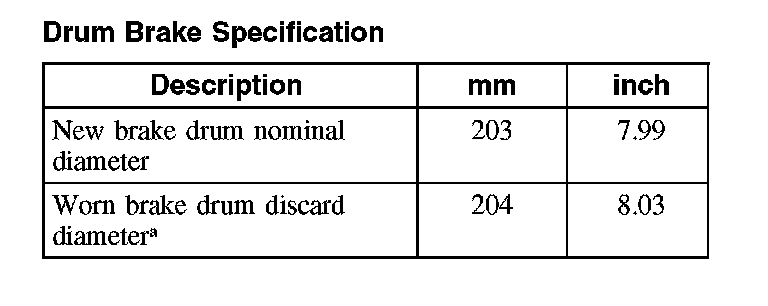

Drum Brake Specifications:

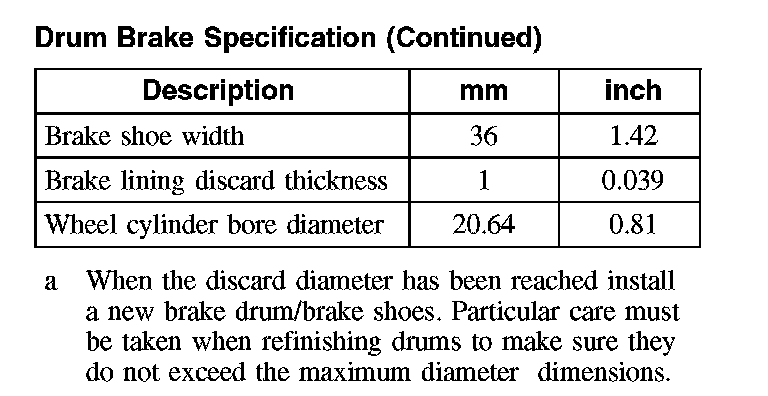

Drum Brake Specifications:





a When the discard diameter has been reached install a new brake drum/brake shoes. Particular care must be taken when refinishing drums to make sure they do not exceed the maximum diameter dimensions.
