Test N: The Power Liftgate Does Not Open/Close Using The Remote Keyless Entry (RKE) Transmitter

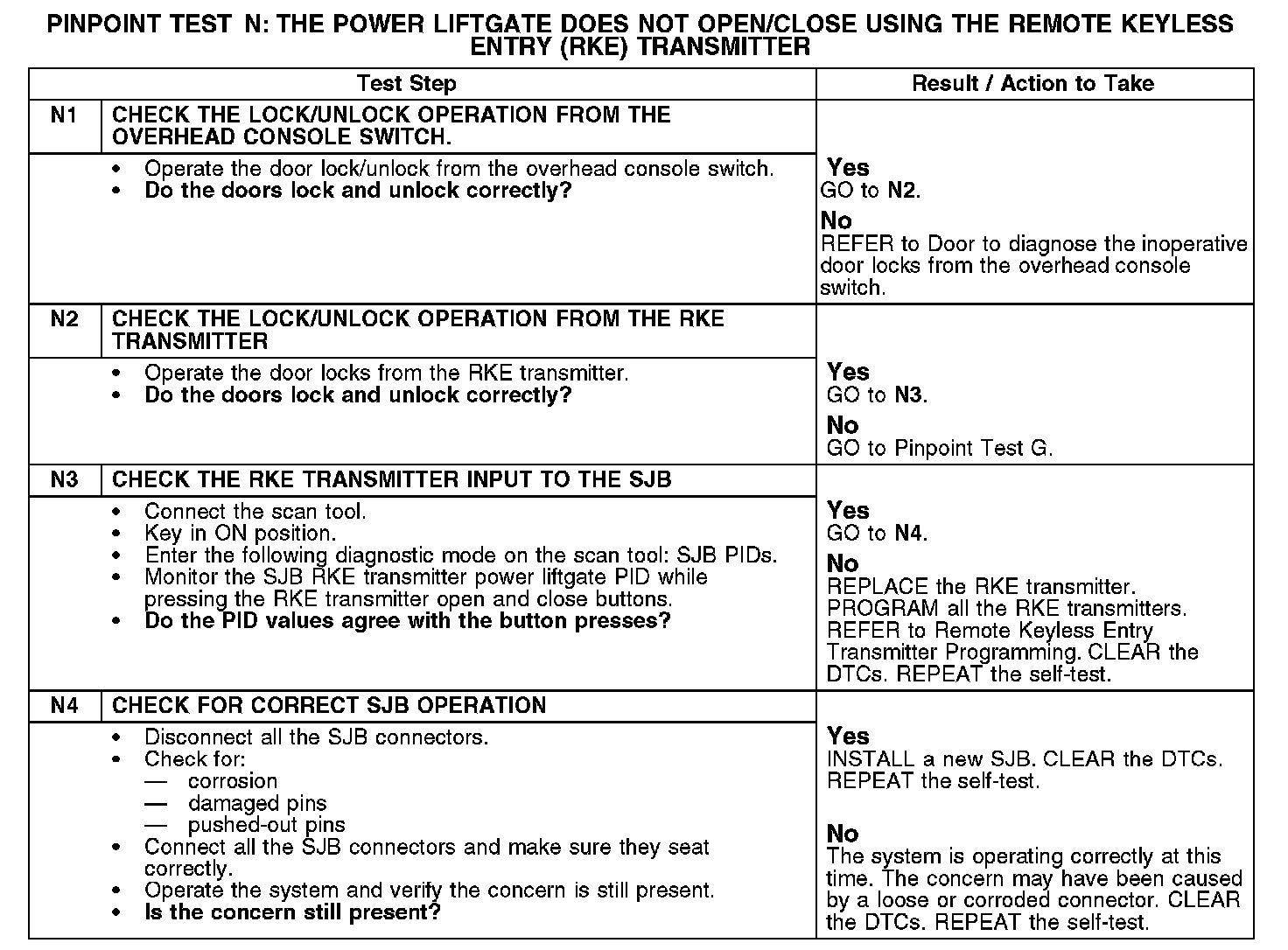

PINPOINT TEST N: THE POWER LIFTGATE DOES NOT OPEN/CLOSE USING THE REMOTE KEYLESS ENTRY (RKE) TRANSMITTER


N1-N4:






Normal Operation
Operation of the power liftgate is accomplished by the smart junction box (SJB) receiving a command message from the RKE transmitter through the RKE/SJB external antenna. The SJB processes the command and sends a signal directly to the power liftgate module which commands the power liftgate to open or close.

Possible Causes
- RKE transmitter
- SJB
