Arm/Disarm Switch: Service and Repair

ANTI-THEFT INHIBIT SWITCH

Removal and Installation
1. Remove the LH front door trim panel.
2. Remove the watershield.

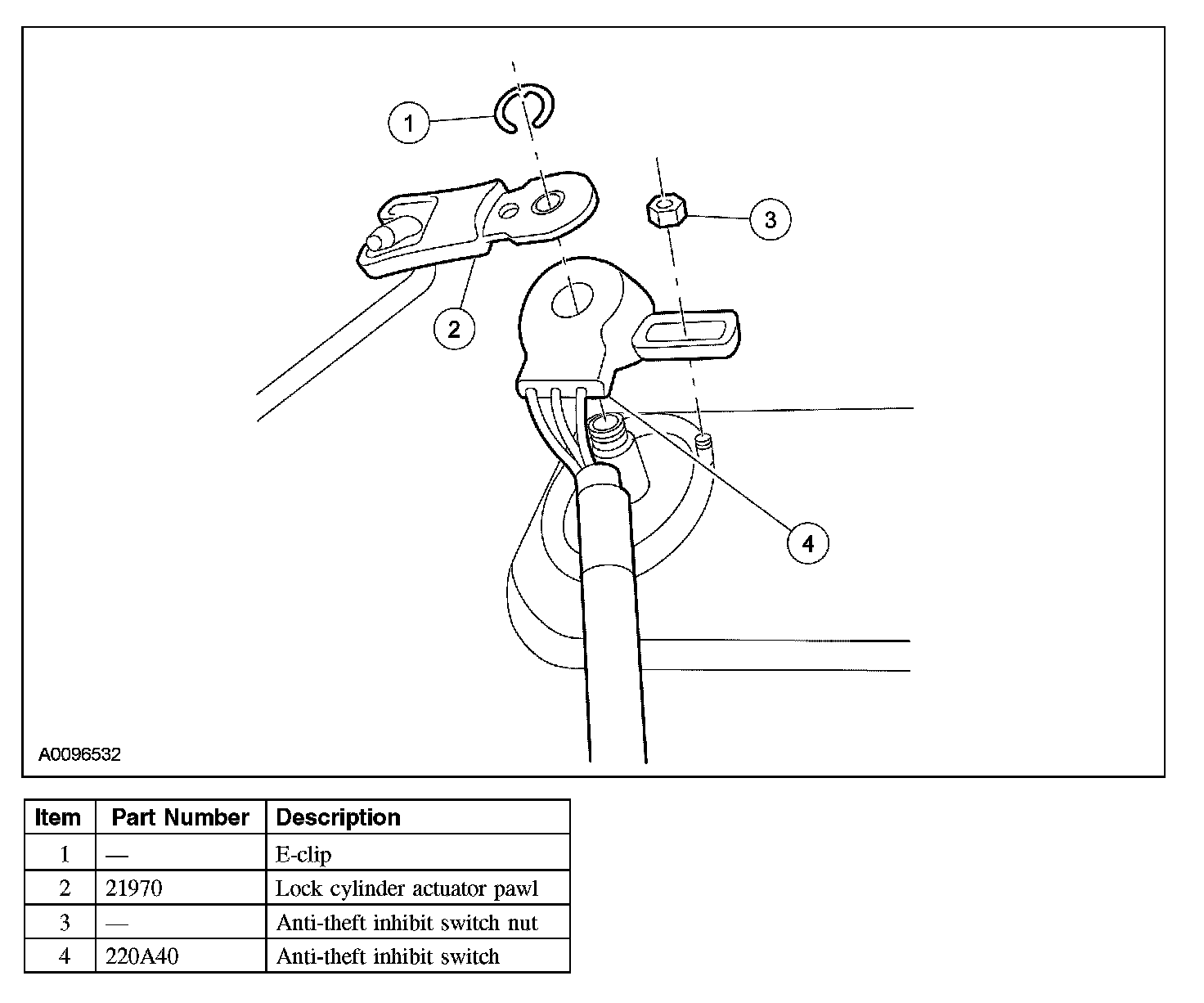

3. Remove the E-clip.
4. Remove the lock cylinder actuator pawl.
5. Remove the nut and the anti-theft inhibit switch.
- Disconnect the electrical connector.

6. To install, reverse the removal procedure.
- The anti-theft inhibit switch mark must be positioned toward the harness side of the switch prior to installation.
