Console: Service and Repair

FLOOR CONSOLE







Removal and Installation

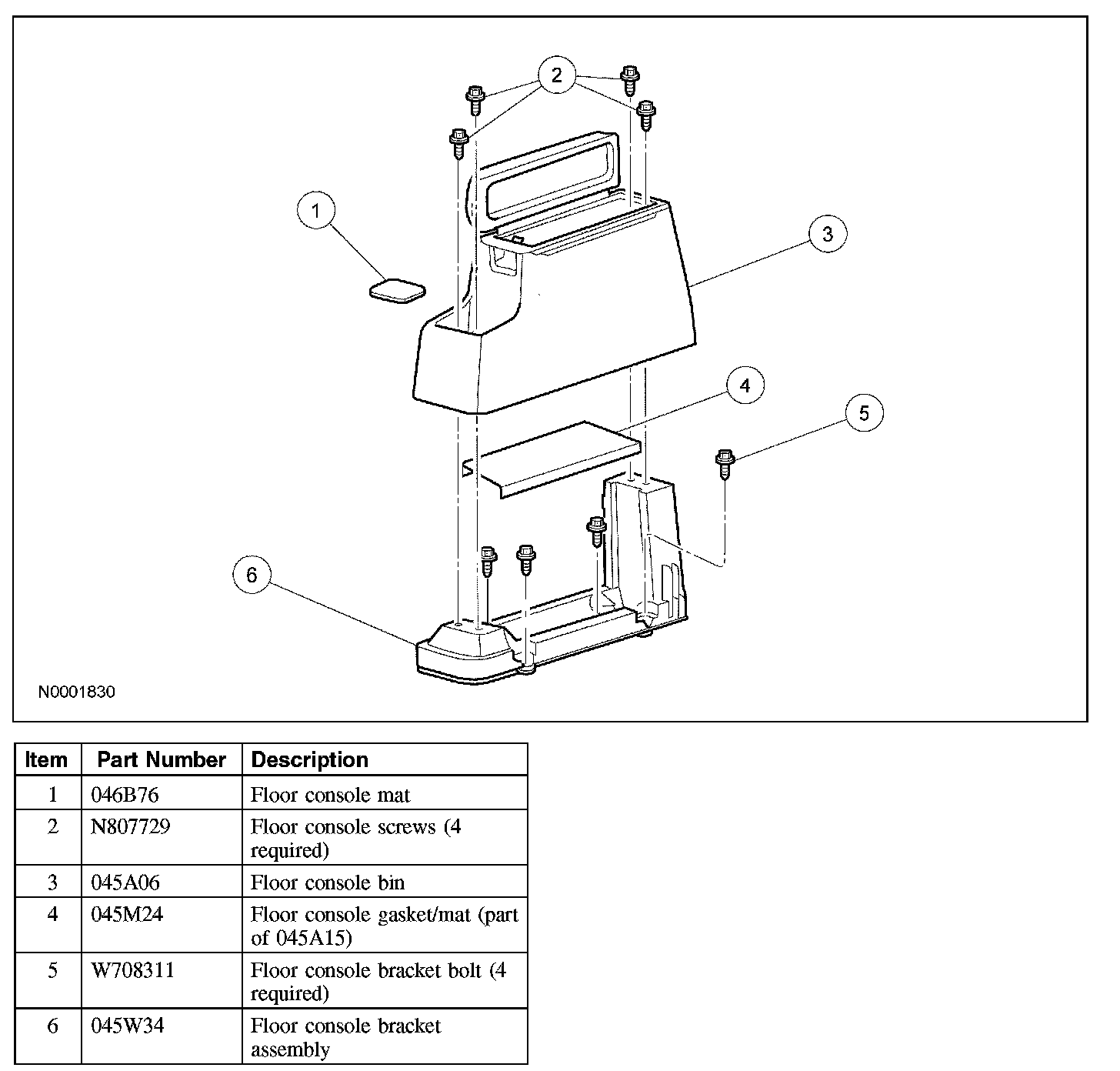

Floor console and bracket
1. Remove the floor console mat.
2. Remove the 4 floor console screws.
3. Remove the floor console bin.

Floor console bracket

4. NOTE: The floor console gasket/mat is held in place by the sides of the floor console bin pressing against the floor console bracket. It can only be removed after the floor console bin has been removed.

Remove the floor console gasket/mat.

5. Remove the floor console bracket bolts.
6. Remove the floor console bracket.

Floor console and bracket
7. To install, reverse the removal procedure.
