Seat - Third Row

SEAT - THIRD ROW

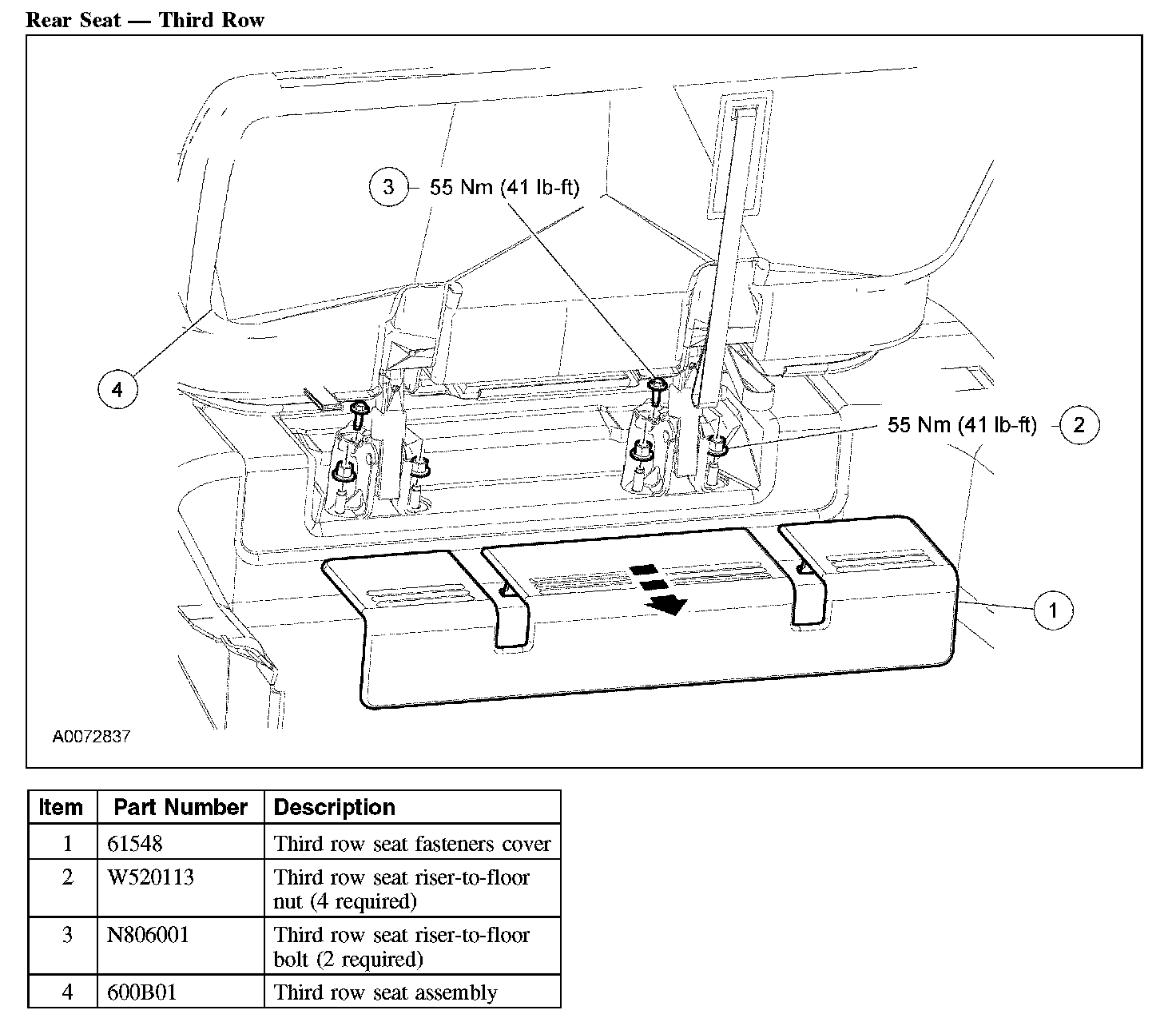

Rear Seat - Third Row:

Removal
1. Remove the third row seat fasteners cover.
2. Remove the 4 third row seat riser-to-floor nuts.
3. Remove the 2 third row seat riser-to-floor bolts.
4. Carefully remove the third row seat.

Installation
1. Position the seat in the vehicle.
2. Install the 2 third row seat riser-to-floor bolts.
- To install, tighten to 55 Nm (41 lb-ft).

3. Install the 4 seat riser-to-floor nuts and fasteners cover.
- To install, tighten to 55 Nm (41 lb-ft).
- Make sure the safety belts and buckles are accessible to the occupants after installation.







4. Check the third row seat latch striker for correct adjustment and adjust horizontally and vertically, as needed. To adjust:
- Loosen the 2 nuts enough to allow movement of the striker.
- Gently lower the third row seat down to the striker and align the striker to the latch.
- Tighten the nuts.
- Tighten to 20 Nm (15 lb-ft).

- Make sure both third row seat latches latch fully and evenly to the strikers.
