Driven Sprocket Support

Driven Sprocket Support

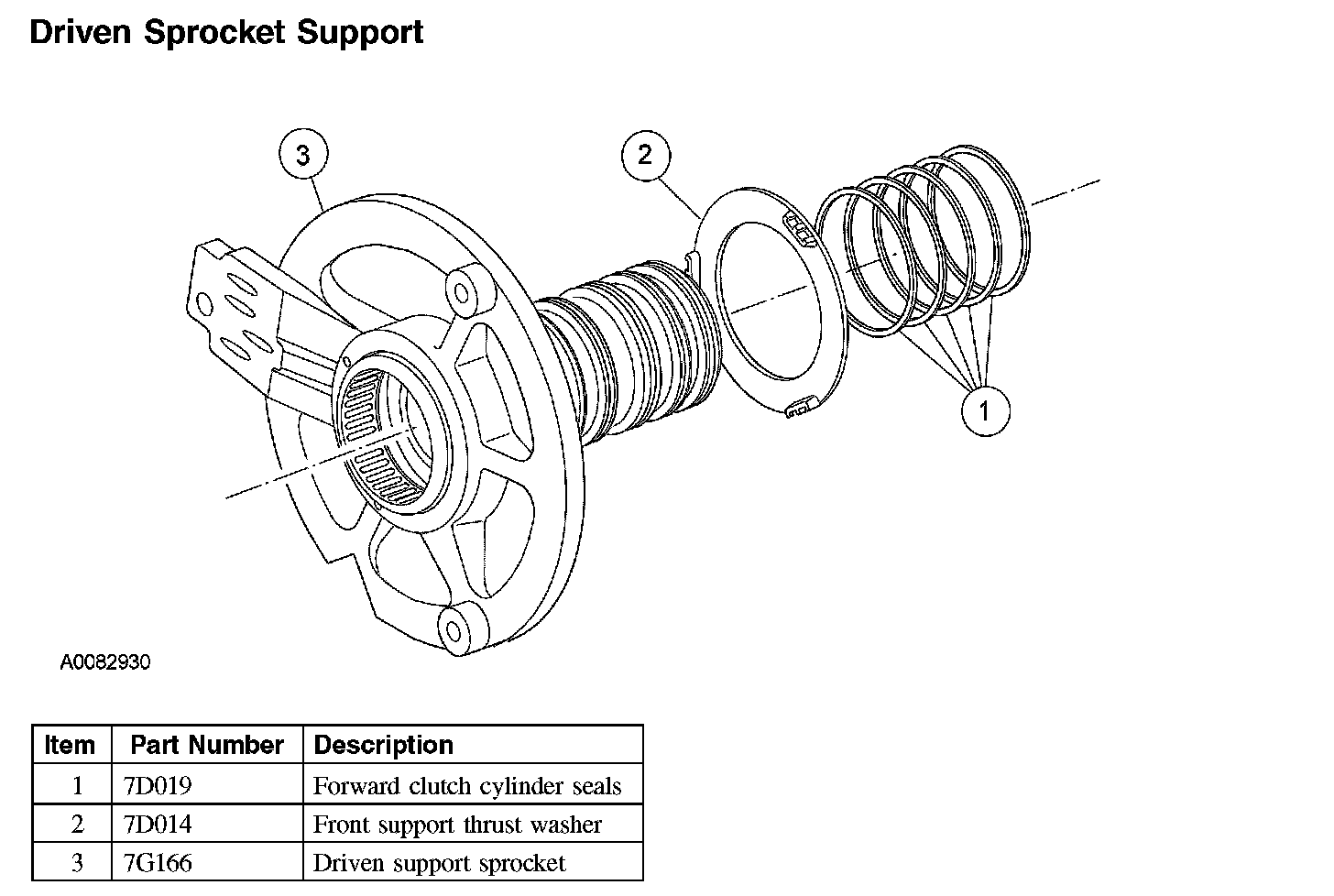

Driven Sprocket Support:





Disassembly

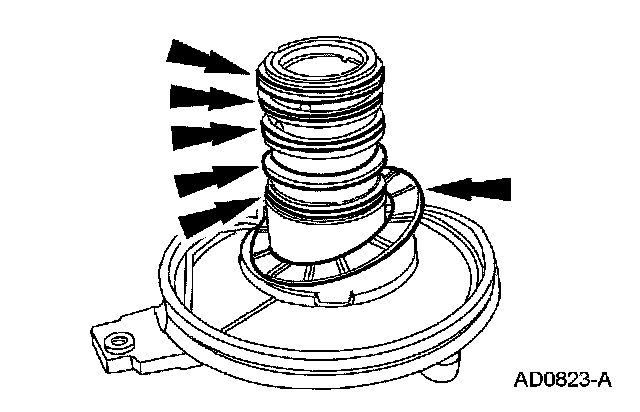

1. Remove the Teflon(R) seal rings and the No. 5 thrust washer.





2. Inspect the driven sprocket bearing. If damage is found to the bearing, install a new driven sprocket.

Assembly
1. Make sure that the seals are mated correctly during installation.





2. CAUTION: The seal rings must be installed correctly. Transmission failure could result.

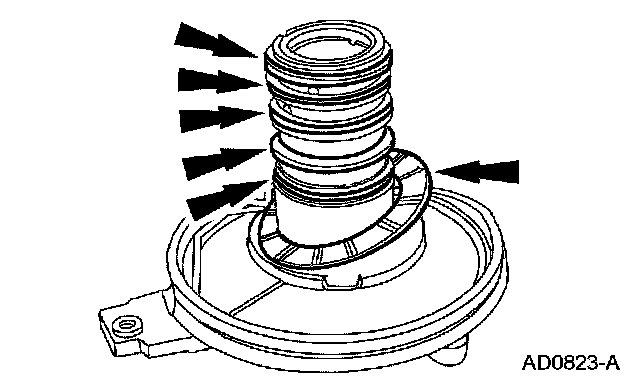

Install new Teflon(R) seals and the No. 5 thrust washer.
