Driven Sprocket
Driven SprocketSpecial Tool(s):
Check 1.
Check the bearing race to verify that it has not moved out of position or become scored. If worn or scored, install a new driven sprocket.

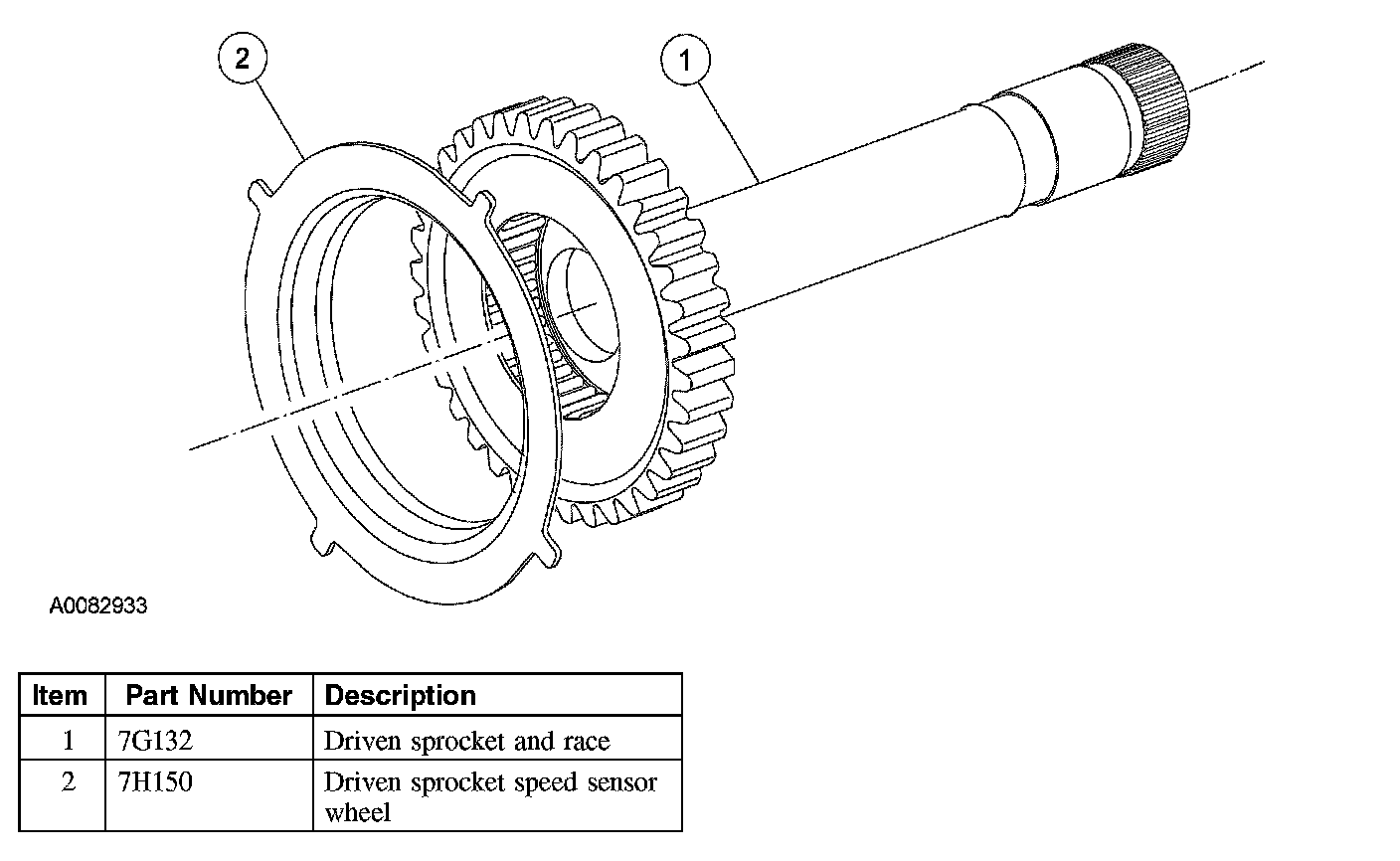

Inspect the sensor wheel for bent or damaged tabs.
2.
NOTE: Install a new
speed sensor wheel only if damaged.
Remove the
speed sensor wheel.
3.
Using the special tools, install a new
speed sensor ring.
