Overdrive Servo
Overdrive ServoOverdrive Servo:
Disassembly 1.

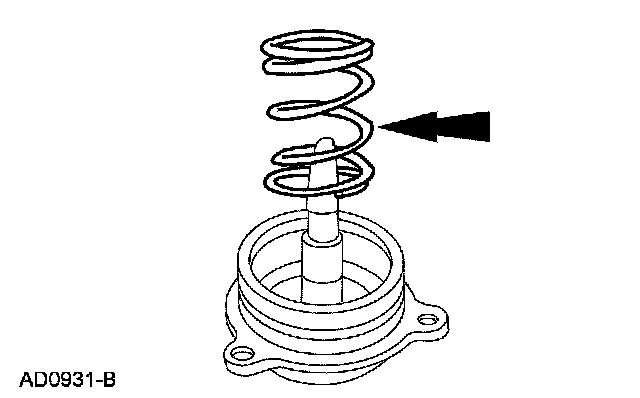

Remove the overdrive servo piston return spring.
2.

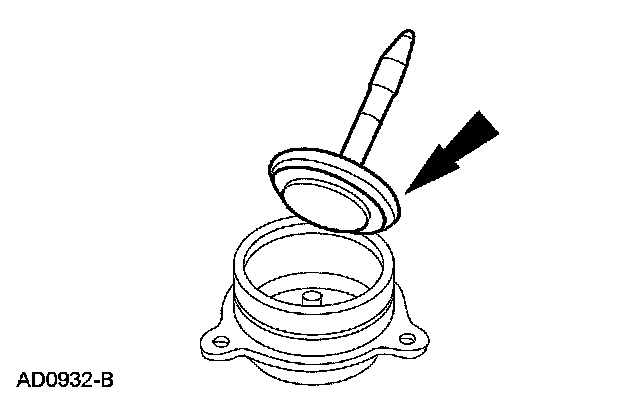

Remove the overdrive servo piston and rod assembly.
3.

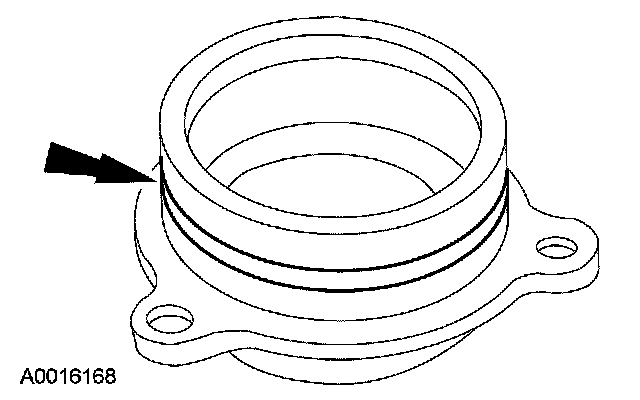

Remove the servo piston seal.
Assembly 1.

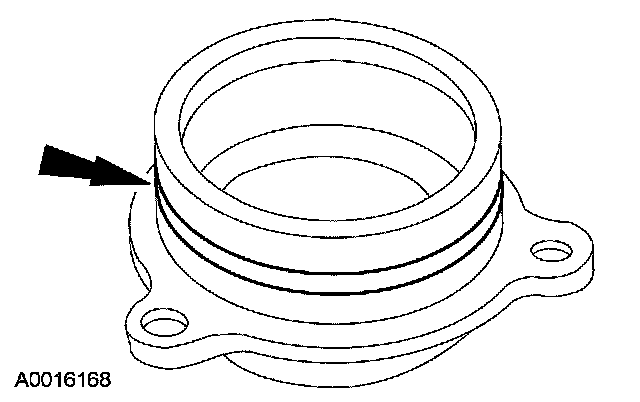

Install the servo piston seal.
2.
NOTE: Lubricate the piston seals with petroleum jelly prior to installation.

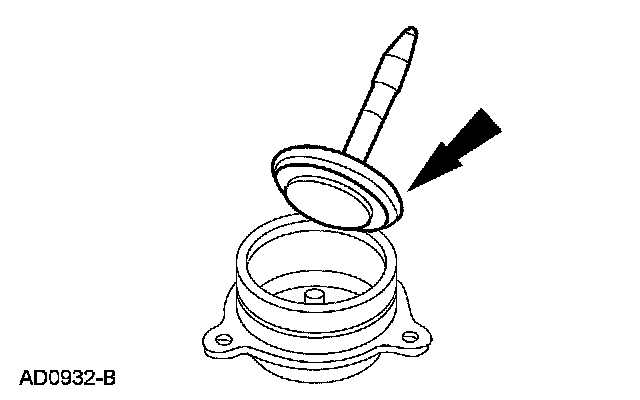

Install the overdrive servo piston and rod assembly.
3.
Install the overdrive servo piston return spring.
