Transmission Mount: Service and Repair

Transaxle Support Insulator

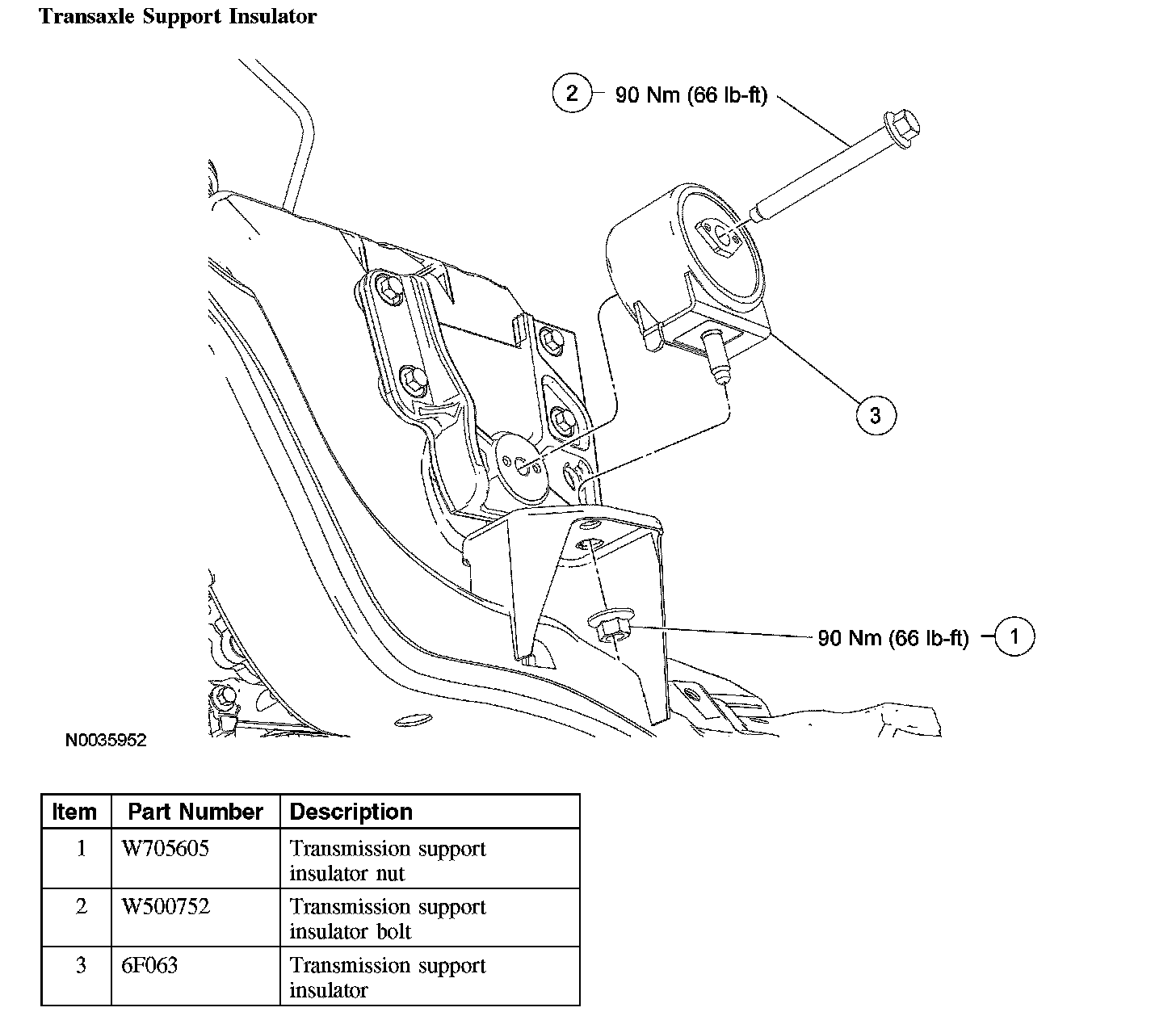

Transaxle Support Insulator:





Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Maintenance/Service and Repair.
2. Support the transmission with a suitable jack.
3. Remove the bolts and the anti-roll bracket.





4. Remove the rear transaxle support nut.





5. Remove the transaxle support bolt.
^ To install, tighten to 90 Nm (66 ft. lbs).





6. Remove the transaxle support.
7. To install, reverse the removal procedure.
