Flex Plate: Service and Repair

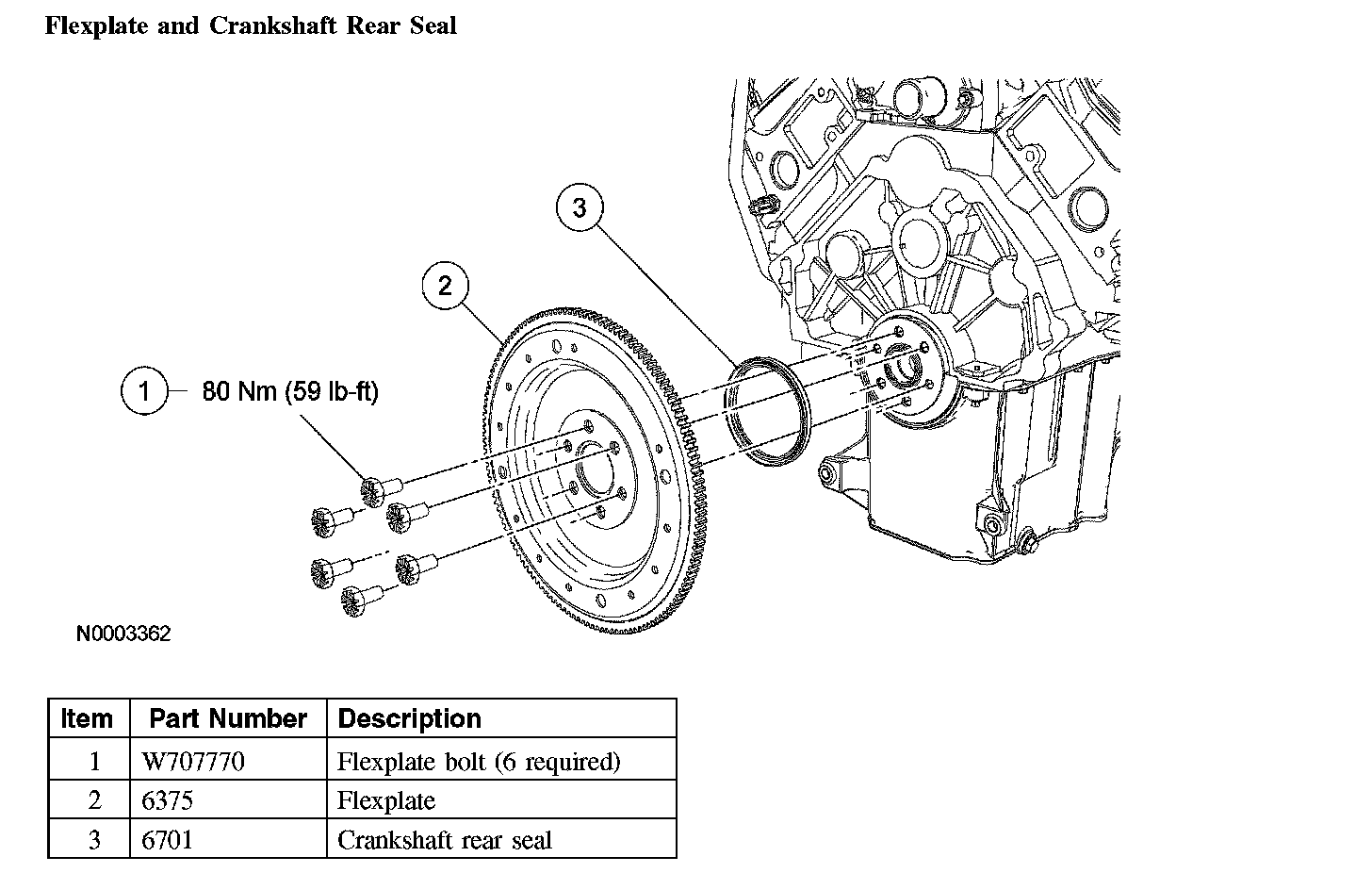

FlexplateFlexplate and Crankshaft Rear Seal:
Removal and Installation 1.
With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Maintenance/Service and Repair.
2.
Remove the transaxle.
3.
Remove the 6 flexplate bolts and the flexplate.
^
To install, tighten to
80 Nm (59 ft. lbs). 4.
To install, reverse the removal procedure.
