Leak Detection Valve: Service and Repair

EVAPORATIVE EMISSION CANISTER VENT SOLENOID


Part 1:






Part 2:

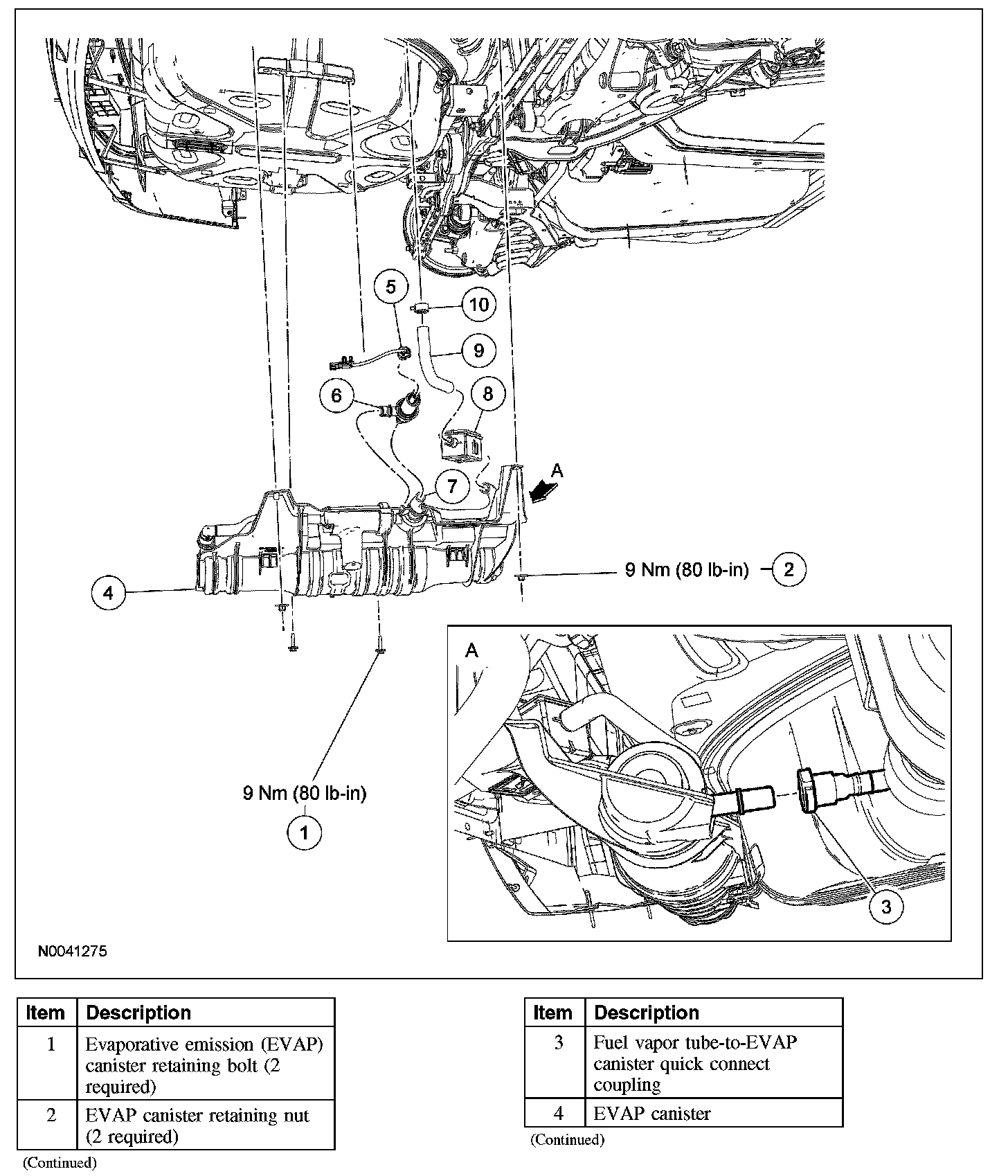

Exploded View

Removal and Installation
1. Remove the evaporative emission (EVAP) canister.

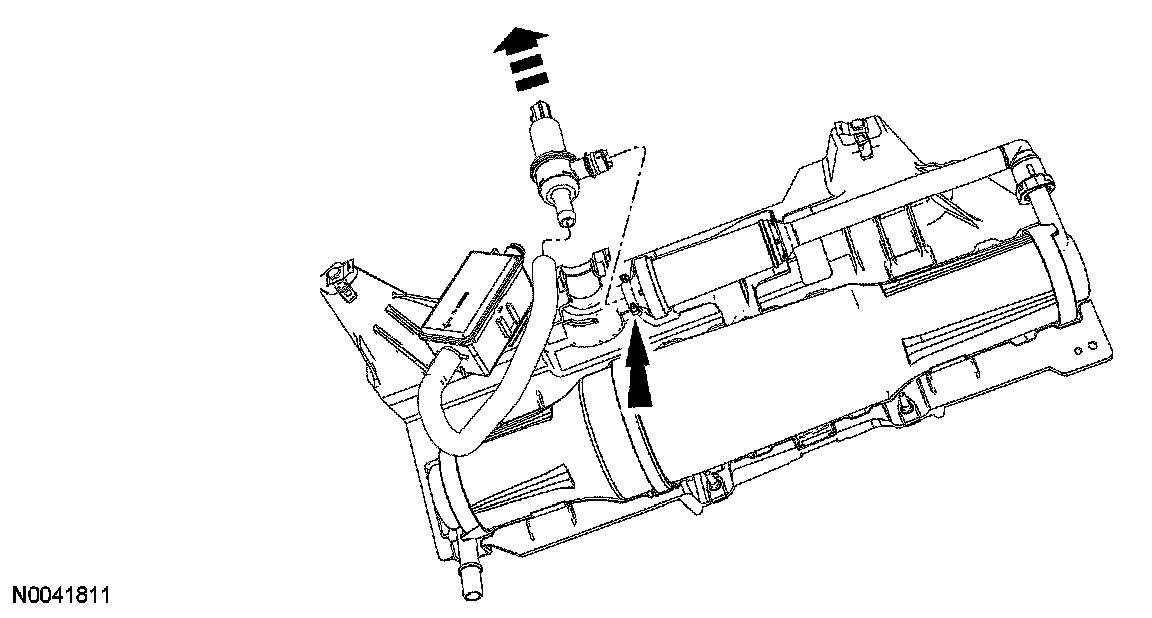

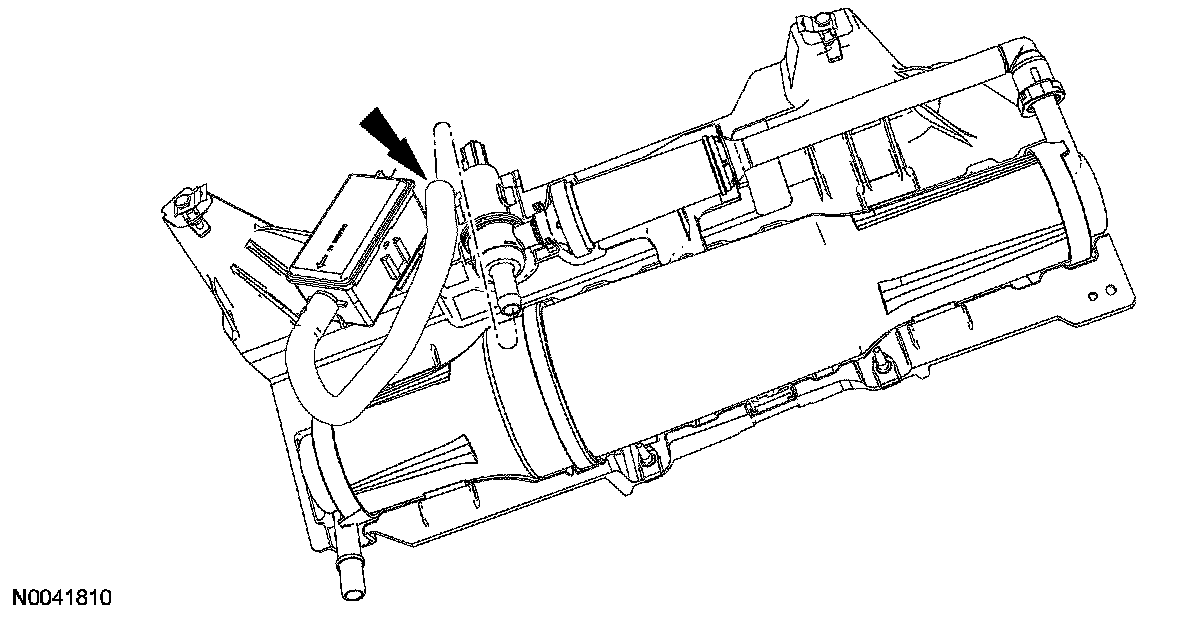

2. Remove the EVAP canister vent tube-to-EVAP canister vent solenoid.







3. Release the EVAP canister vent solenoid from the carbon canister and remove from the EVAP canister assembly.
4. To install, reverse the removal procedure.
- Apply clean engine oil to the EVAP canister vent solenoid O-ring seal.
