Audio Unit Diagnostic Trouble Code (DTC) Index

B1117-B2404:

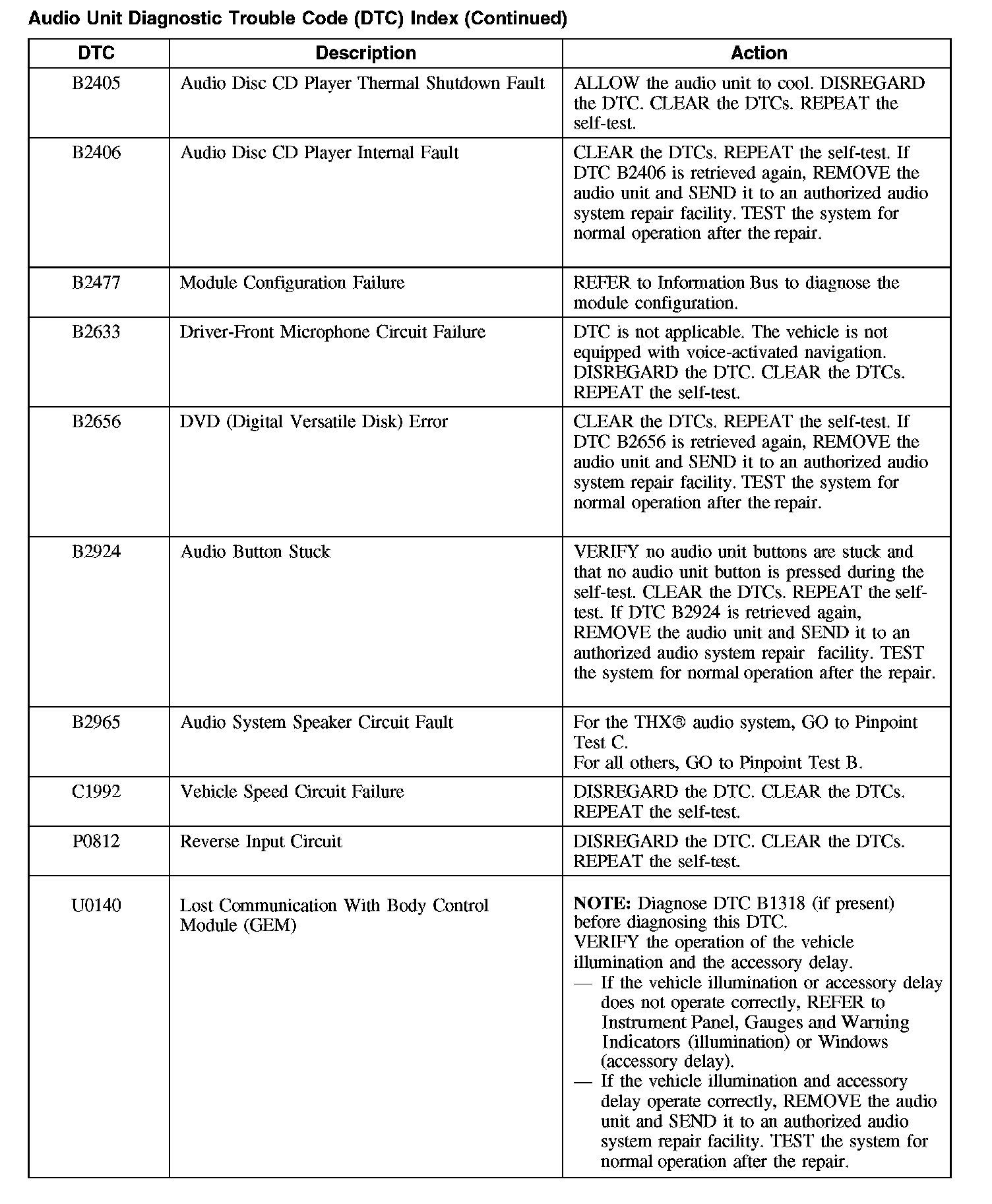

B2405-B2965 / C1992 / P0812 / U0140:

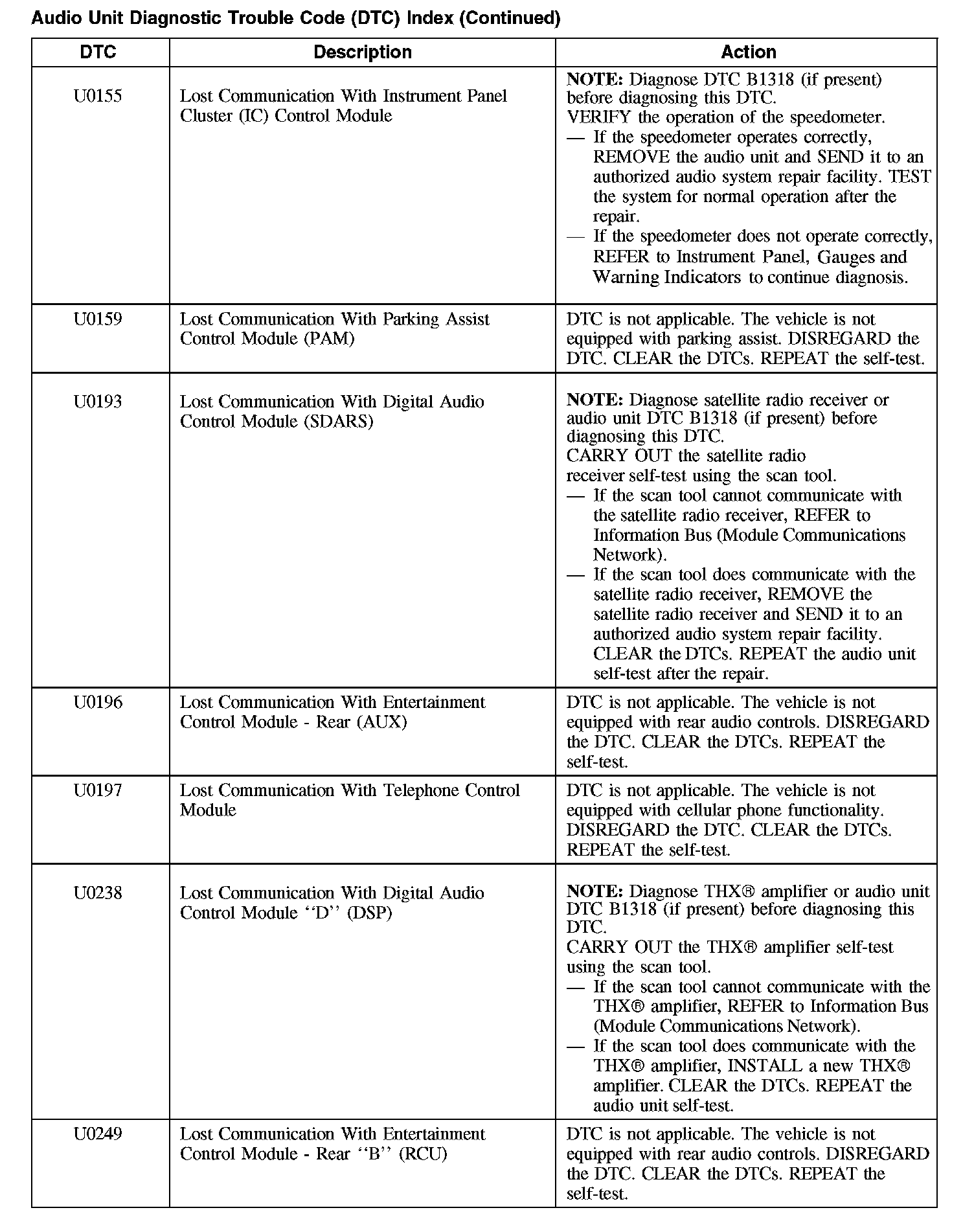

U0155-U0249:

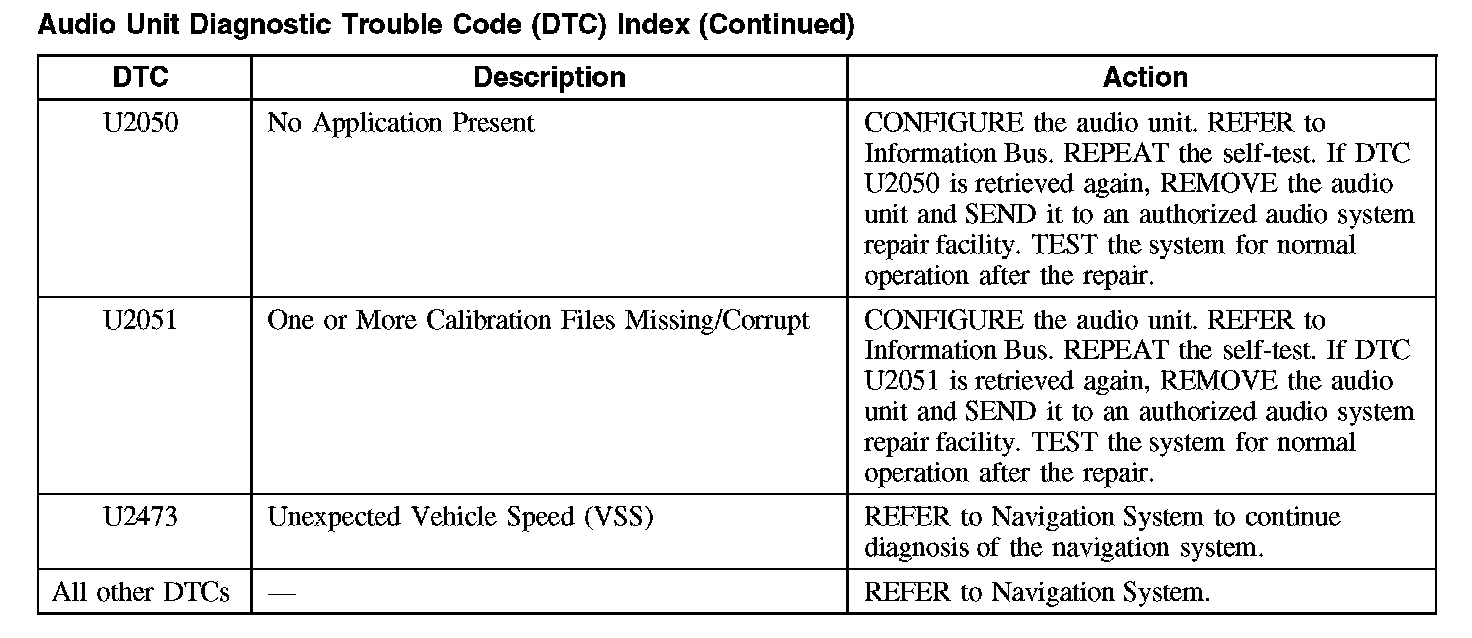

U2050-U2473:
