Cylinder Head Assembly

The cylinder heads must not have depressions deeper than 0.0254 mm (0.001 inch) across a 38.1 mm (1.5 inch) square area, or scratches longer than 0.0254 mm (0.001 inch).

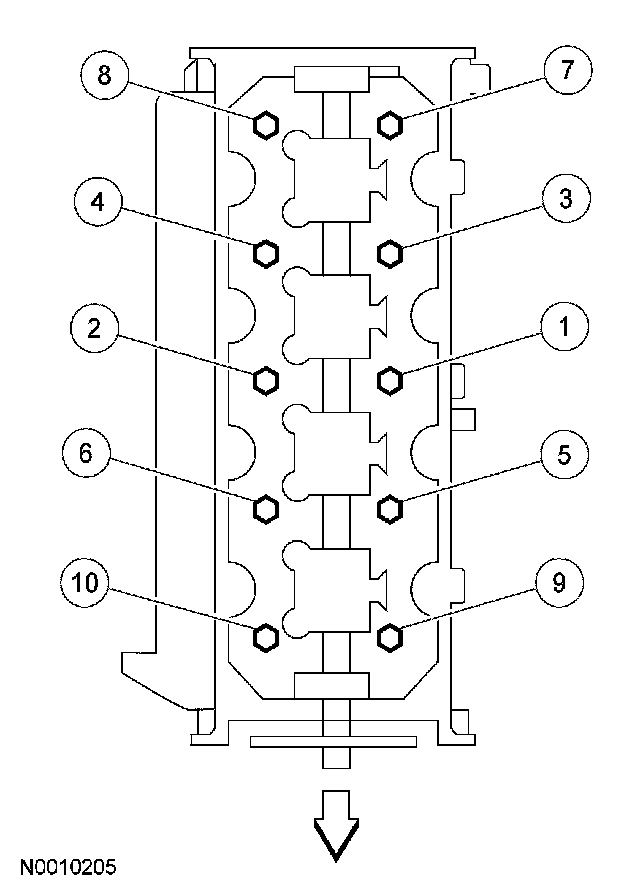

The cylinder head bolts must be discarded and new bolts installed. They are tighten-to-yield designed and cannot be reused.

Stage 1: 40 Nm (30 ft. lbs.)
Stage 2: additional 90 degrees
Stage 3: additional 90 degrees

NOTE: LH shown, RH similar.






Camshaft phaser sprocket assembly bolts
Stage 1: 40 Nm (30 ft. lbs.)
Stage 2: additional 90 degrees

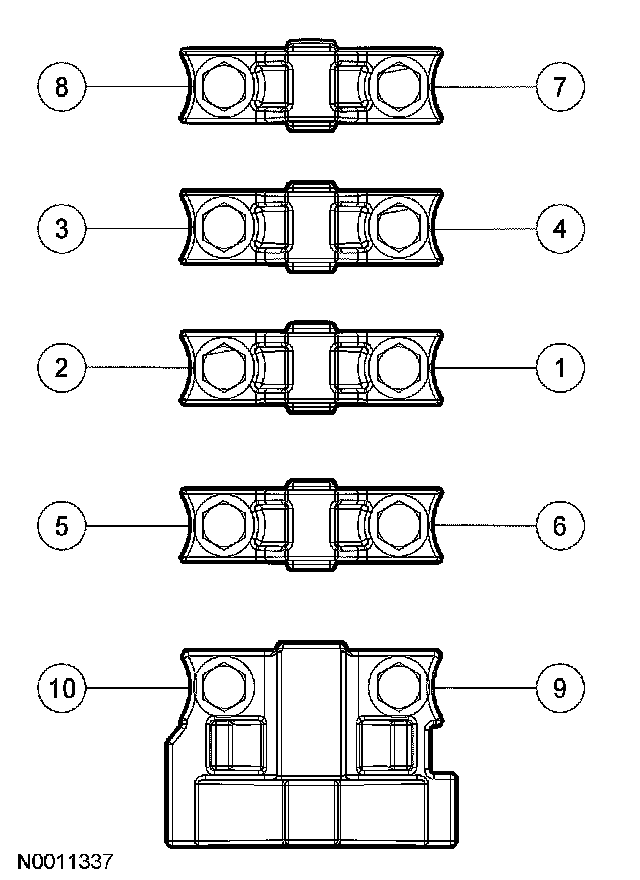

Camshaft - LH
Camshaft bearing caps 10 Nm (89 inch lbs.)

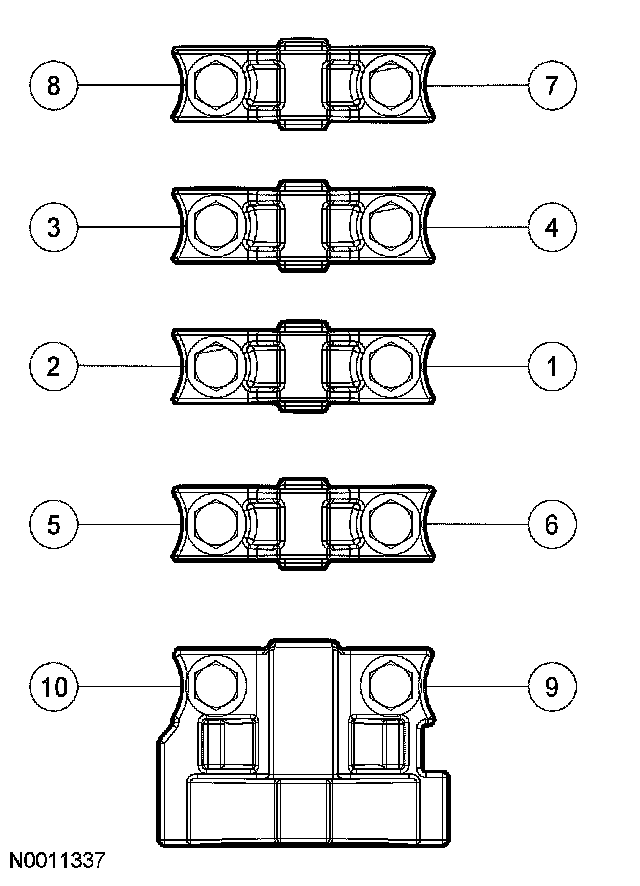

Camshaft - RH
Camshaft bearing caps 10 Nm (89 inch lbs.)





Intake manifold Nm (89 inch lbs.).

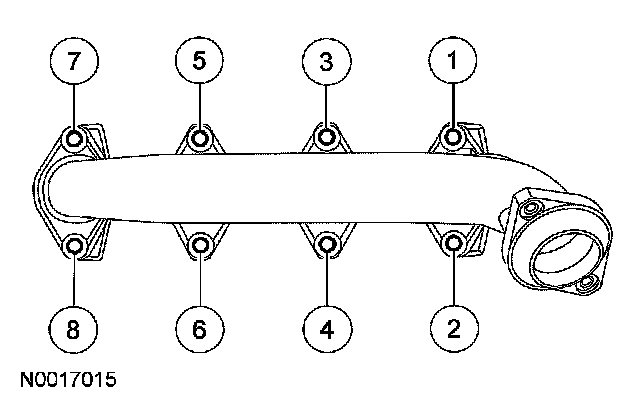

Exhaust Manifold - LH
Nuts 25 Nm (18 ft. lbs.)

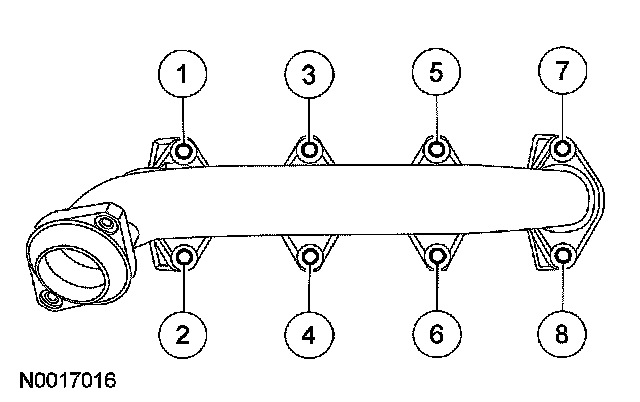

Exhaust Manifold - RH
Nuts 25 Nm (18 ft. lbs.)
