Air Temperature Sensor ( Ambient / Intake ): Service and Repair

INTAKE AIR TEMPERATURE 2 (IAT2) SENSOR







Removal
1. Disconnect the battery ground cable.
2. Disconnect the intake air temperature 2 (IAT2) sensor electrical connector.
3. Remove the IAT2 sensor.

Installation







1. Install the IAT2 sensor. Tighten the IAT2 sensor in 2 stages:
- Stage 1: Tighten the IAT2 sensor to 15 Nm (11 lb-ft).

- CAUTION: During Stage 2, do not tighten the IAT2 sensor more than 1 full turn and do not rotate the IAT2 sensor counter clockwise after tightening.

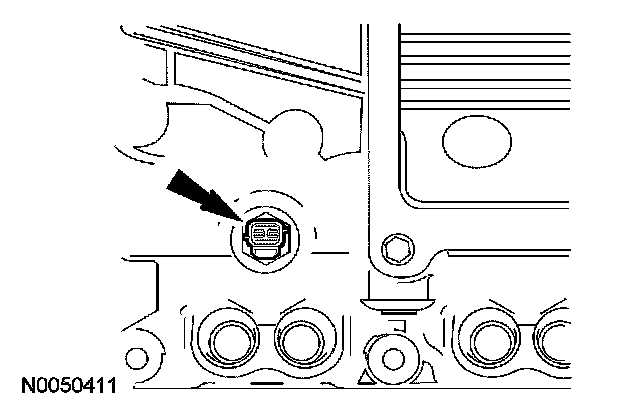

Stage 2: Tighten the IAT2 sensor until it is aligned as shown.

2. Connect the IAT2 sensor electrical connector.
3. Connect the battery ground cable.
