Fuel Pump Control Unit: Service and Repair

FUEL PUMP DRIVER MODULE (FPDM)

Removal and Installation

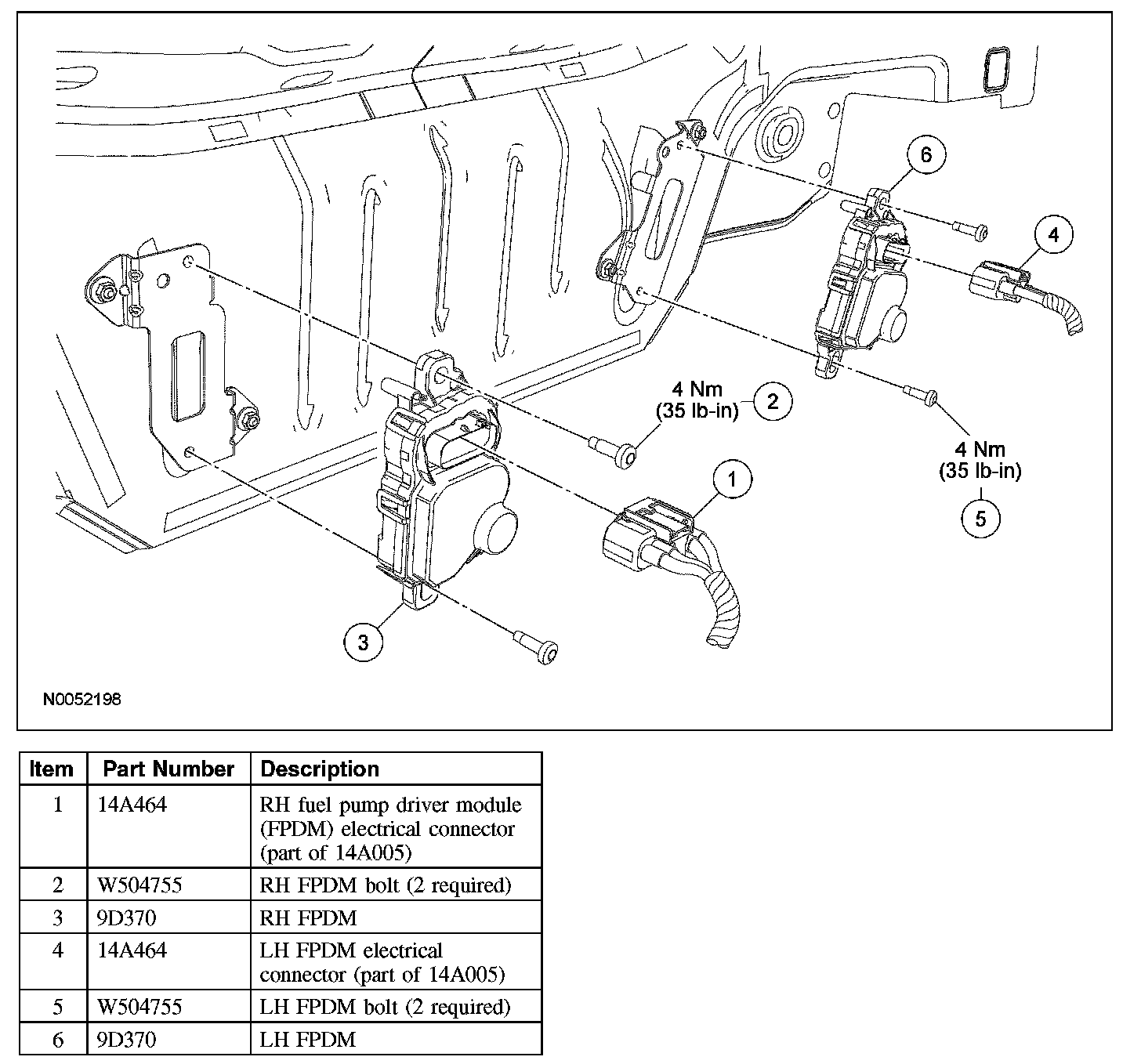

NOTE: The fuel pump driver modules (FPDM) are located in the spare tire stowage compartment and are serviced separately.

1. Disconnect the battery ground cable.
2. Disconnect the FPDM electrical connector.
3. Remove the 2 bolts and the FPDM.
- To install, tighten to 4 Nm (35 lb-in).

4. To install, reverse the removal procedure.
