Compressor to Condenser Discharge Line

COMPRESSOR TO CONDENSER DISCHARGE LINE







Removal and Installation

NOTE: Installation of a new suction accumulator is not required when repairing the air conditioning system, except when there is physical evidence of system contamination from a failed A/C compressor or damage to the suction accumulator.

1. Remove the condenser core.
2. Remove the air cleaner outlet tube.

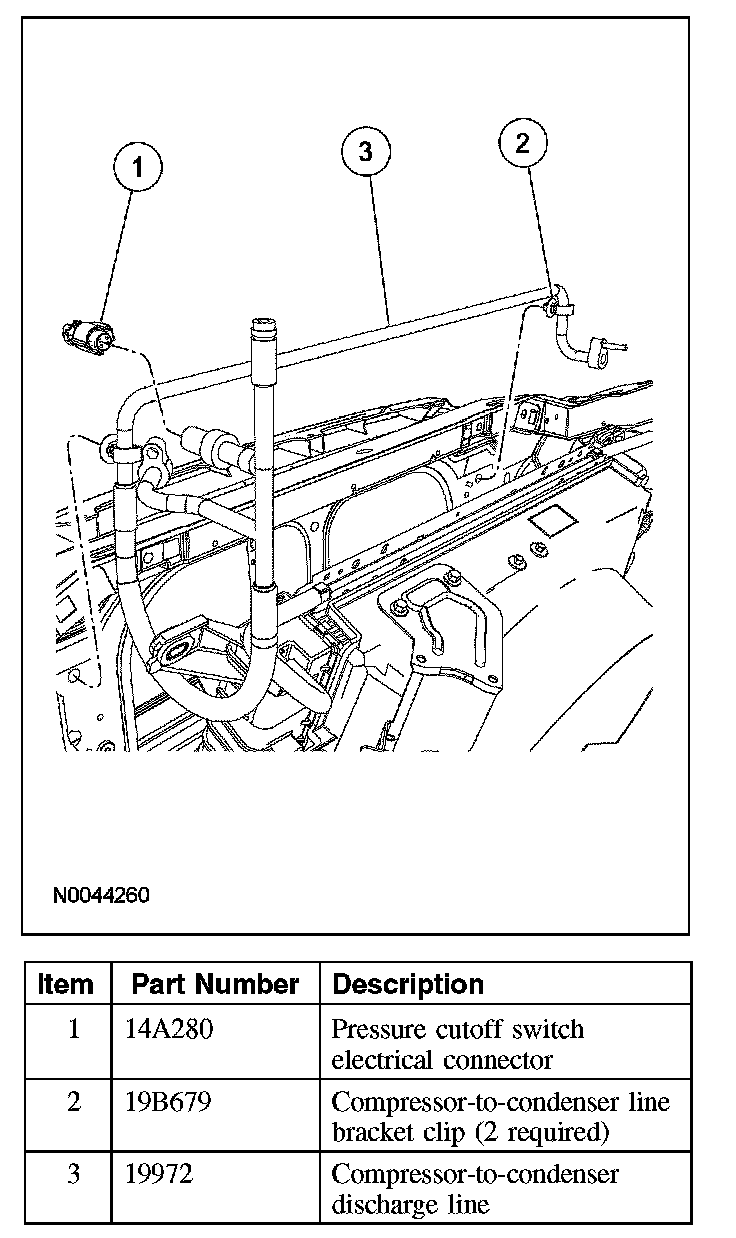

3. Disconnect the pressure cutoff switch electrical connector.
4. Detach the 2 compressor-to-condenser discharge line clips.
5. Remove the compressor-to-condenser discharge line.
6. To install, reverse the removal procedure.
- Install new O-ring seals.
- Lubricate the refrigerant system with the correct amount of clean PAG oil.

7. Evacuate, leak test and charge the refrigerant system.
