Canister Purge Control Valve: Service and Repair

EVAPORATIVE EMISSION CANISTER PURGE VALVE


Part 1:






Part 2:

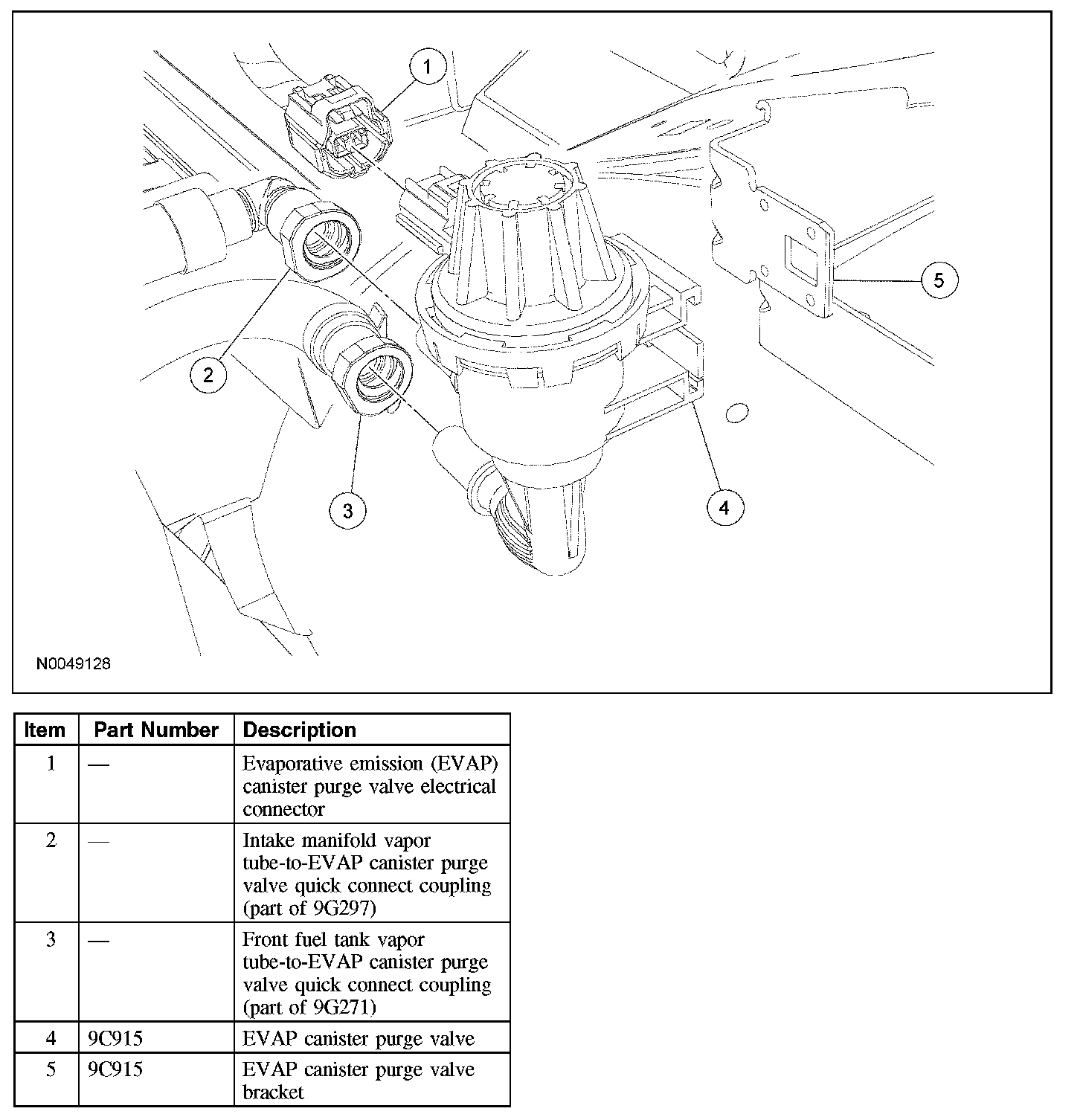

Exploded View







Removal and Installation

1. WARNING: The evaporative emission (EVAP) system contains fuel vapor and condensed fuel vapor. Although not present in large quantities, it still presents the danger of explosion or fire. Disconnect the battery ground cable from the battery to minimize the possibility of an electrical spark occurring, possibly causing a fire or explosion if fuel vapor or liquid fuel is present in the area. Failure to follow these instructions may result in personal injury.

Disconnect the battery ground cable.

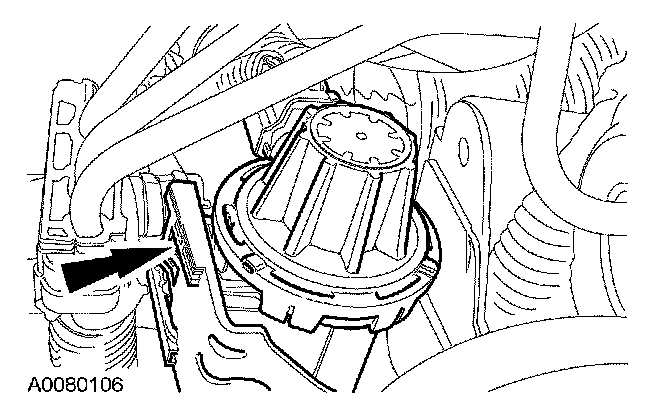

2. Slide the evaporative emission (EVAP) canister purge valve off the bracket.
3. Disconnect the intake manifold vapor tube-to-EVAP canister purge valve quick connect coupling, fuel tank vapor tube-to-EVAP canister purge valve quick connect coupling and the EVAP canister purge valve electrical connector.
4. Remove the valve.
5. To install, reverse the removal procedure.
- Carry out the leak test. Evaporative Emission System Leak Test
- Carry out the evaporative emission repair verification drive cycle. Evaporative Emission Repair Verification Drive Cycle
