Remote Control: Service and Repair
INTEGRATED CONTROL PANEL (ICP)Radio Removing Tool:
Special Tool(s)Removal and Installation 1.

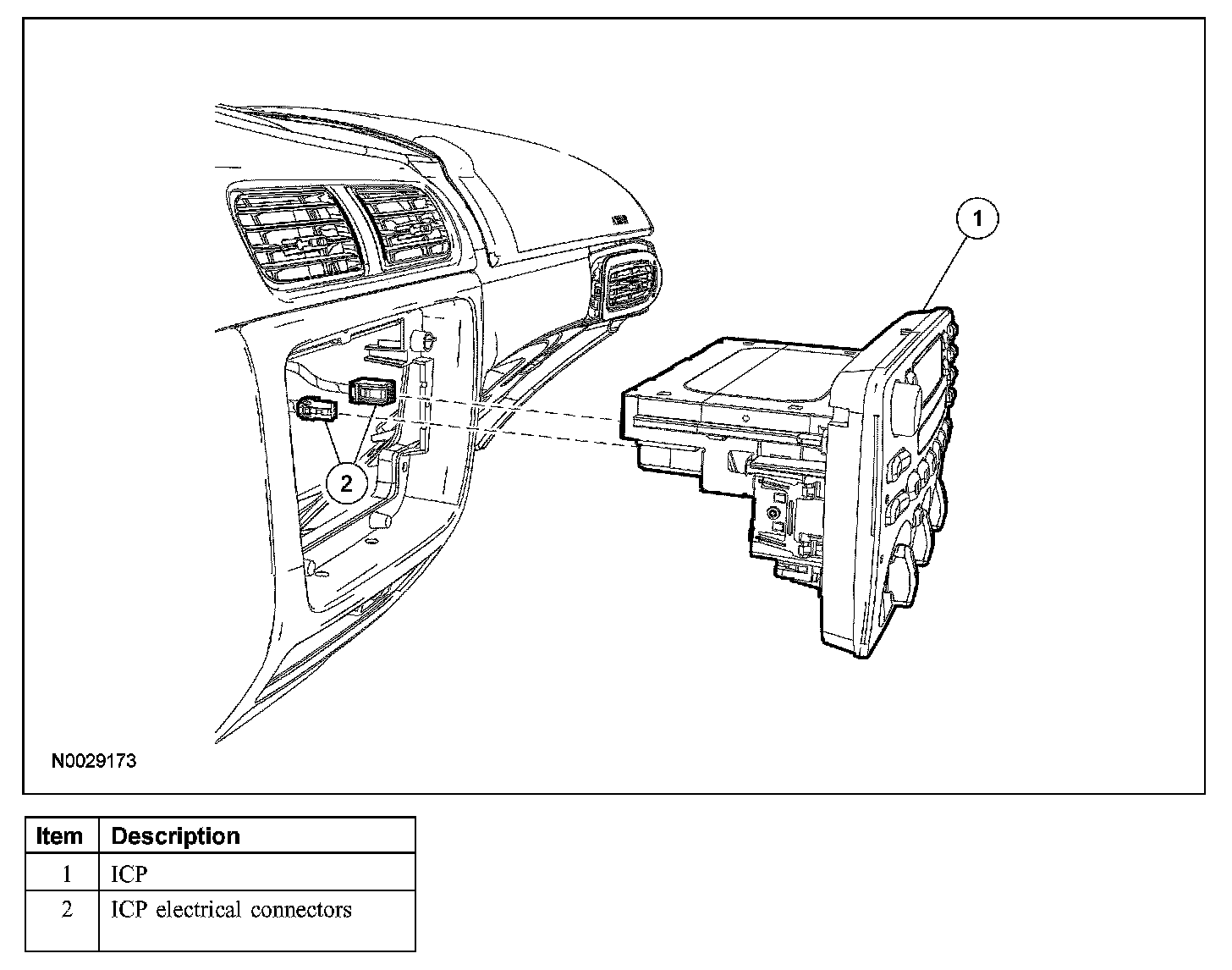

NOTE: The manual A/C integrated control panel is shown; the electronic automatic temperature control (EATC) panel is similar.
Using the special tool, remove the ICP.
-
Disconnect the electrical connectors.
2.
To install, reverse the removal procedure.
