Cooling System Flushing

Cooling System Flushing

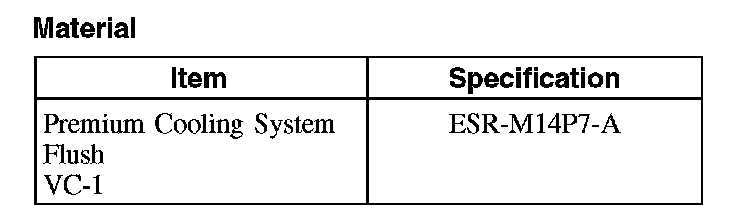

Material:





1. Drain the cooling system.
2. Remove the water thermostat.
3. Install the water hose connection without the water thermostat.
4. Using a suitable coolant system flushing tool and premium flush, flush the engine and radiator.
5. Install the water thermostat.
6. Backflush the heater core if necessary.
7. Fill the cooling system.
