Headlamp: Service and Repair

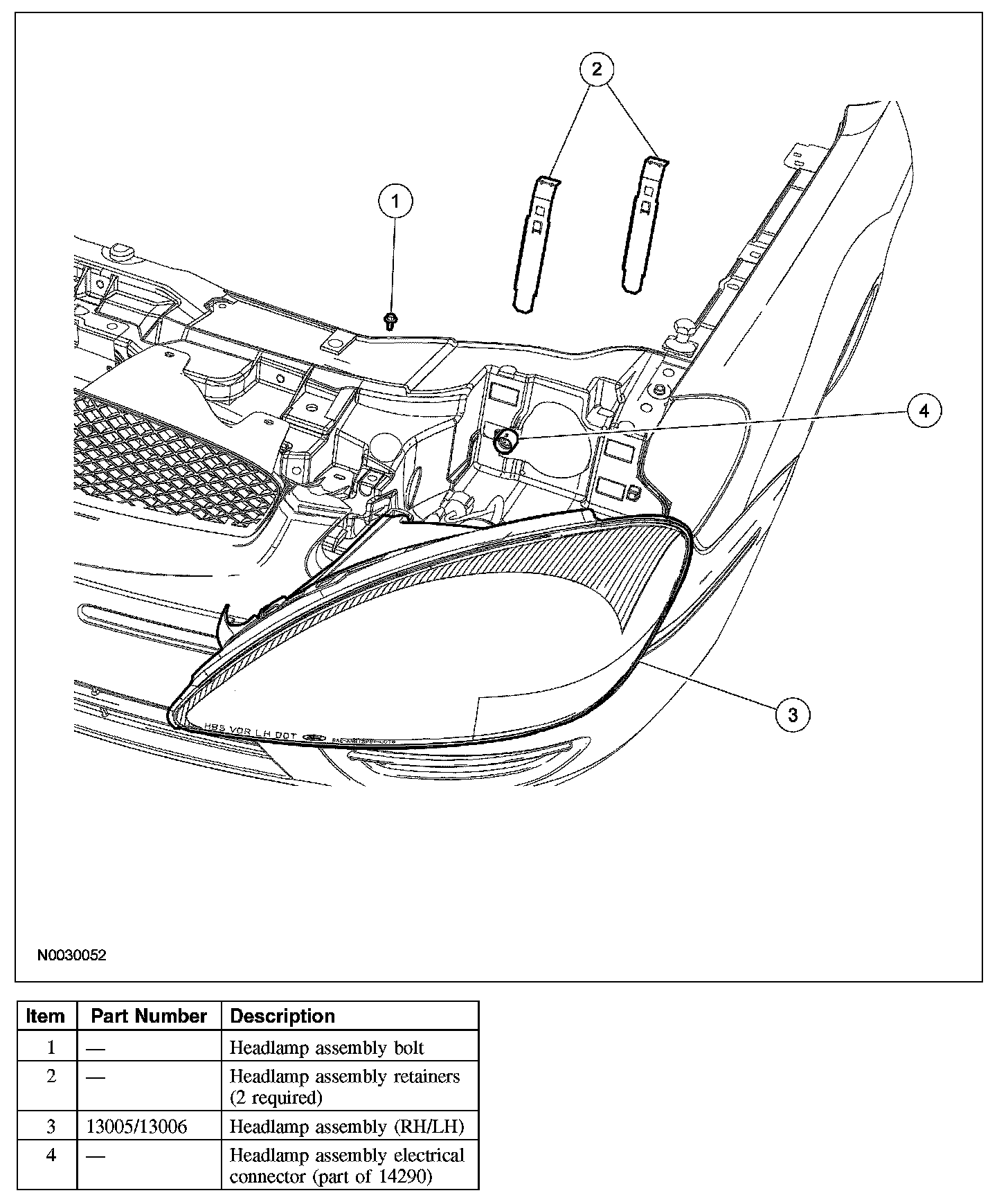

HEADLAMP ASSEMBLY







Removal and Installation

NOTE: Make sure the headlamp switch and the ignition switch are in the OFF position.

1. Loosen the headlamp assembly bolt.
2. Remove the 2 retainers and the headlamp assembly.
- Disconnect the electrical connector.

3. NOTE:
- When installing, make sure the headlamp assembly is positioned correctly so that it aligns with the boss and the holes of the reinforcement.
- Make sure the headlamp wiring harness does not get caught between the headlamp and grille opening reinforcement. If it does, position the harness free of all mounting points.

To install, reverse the removal procedure.
- If necessary, adjust the headlamps.
