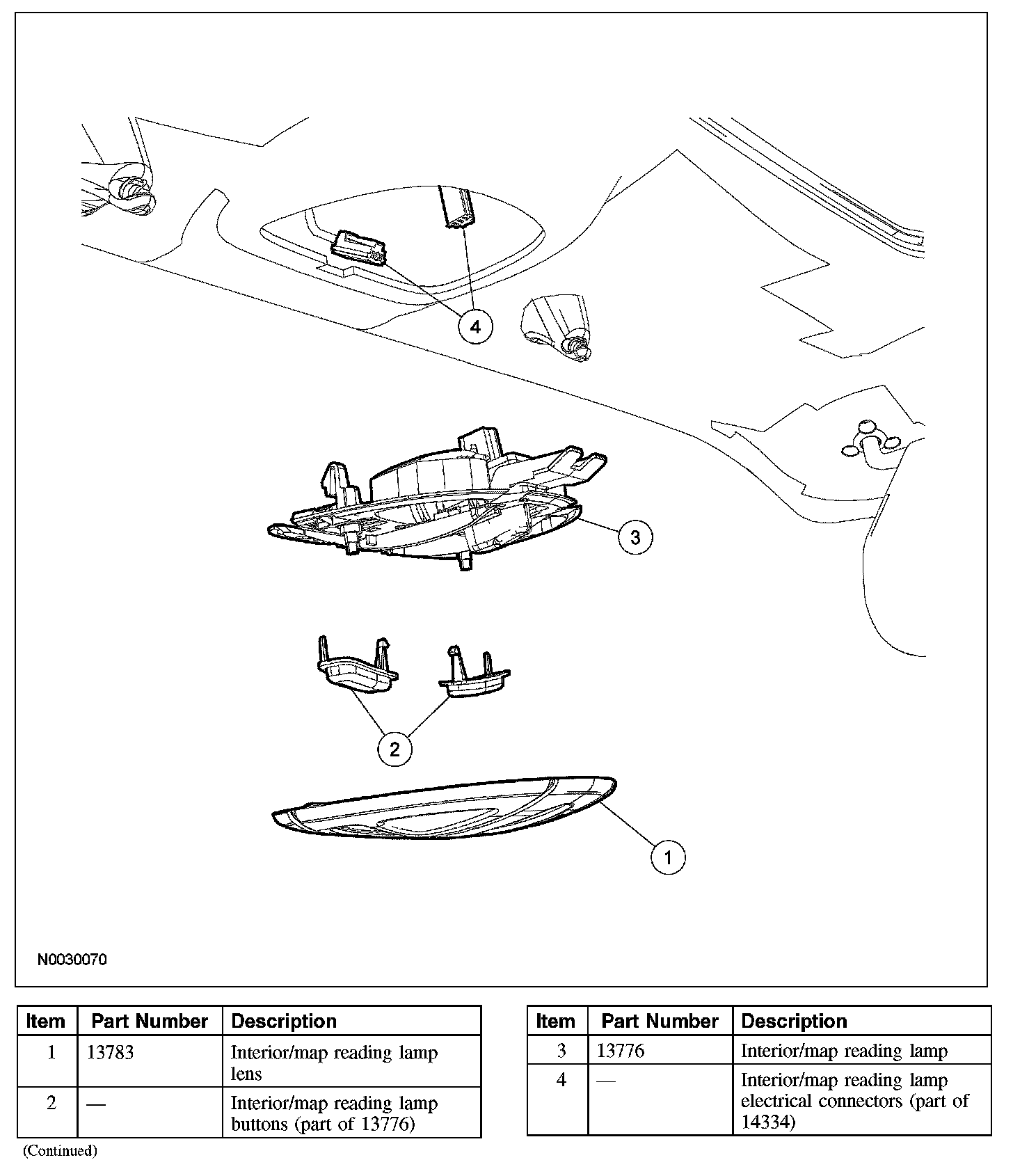

Interior/MAP Reading Lamp - With Roof Opening Panel
INTERIOR/MAP READING LAMP - WITH ROOF OPENING PANELRemoval and Installation 1.
Remove the interior/map reading lamp lens.
2.

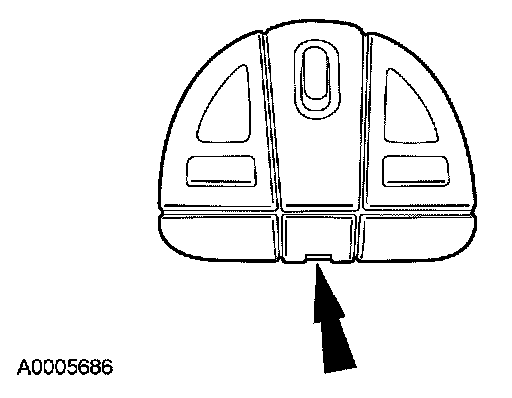

Remove the map lamp buttons.
3.

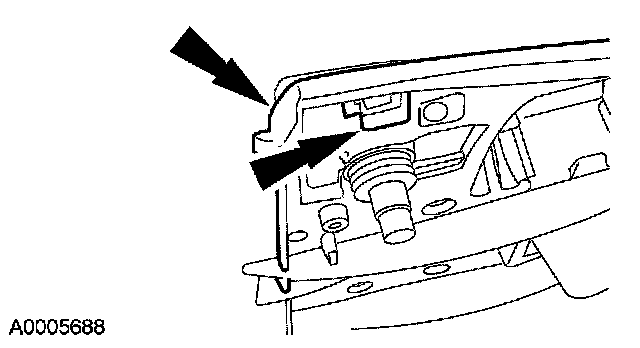

Release the 2 retaining clips (through the access holes) and remove the interior/map reading lamp assembly.
-
Disconnect the electrical connectors.
4.
To install, reverse the removal procedure
