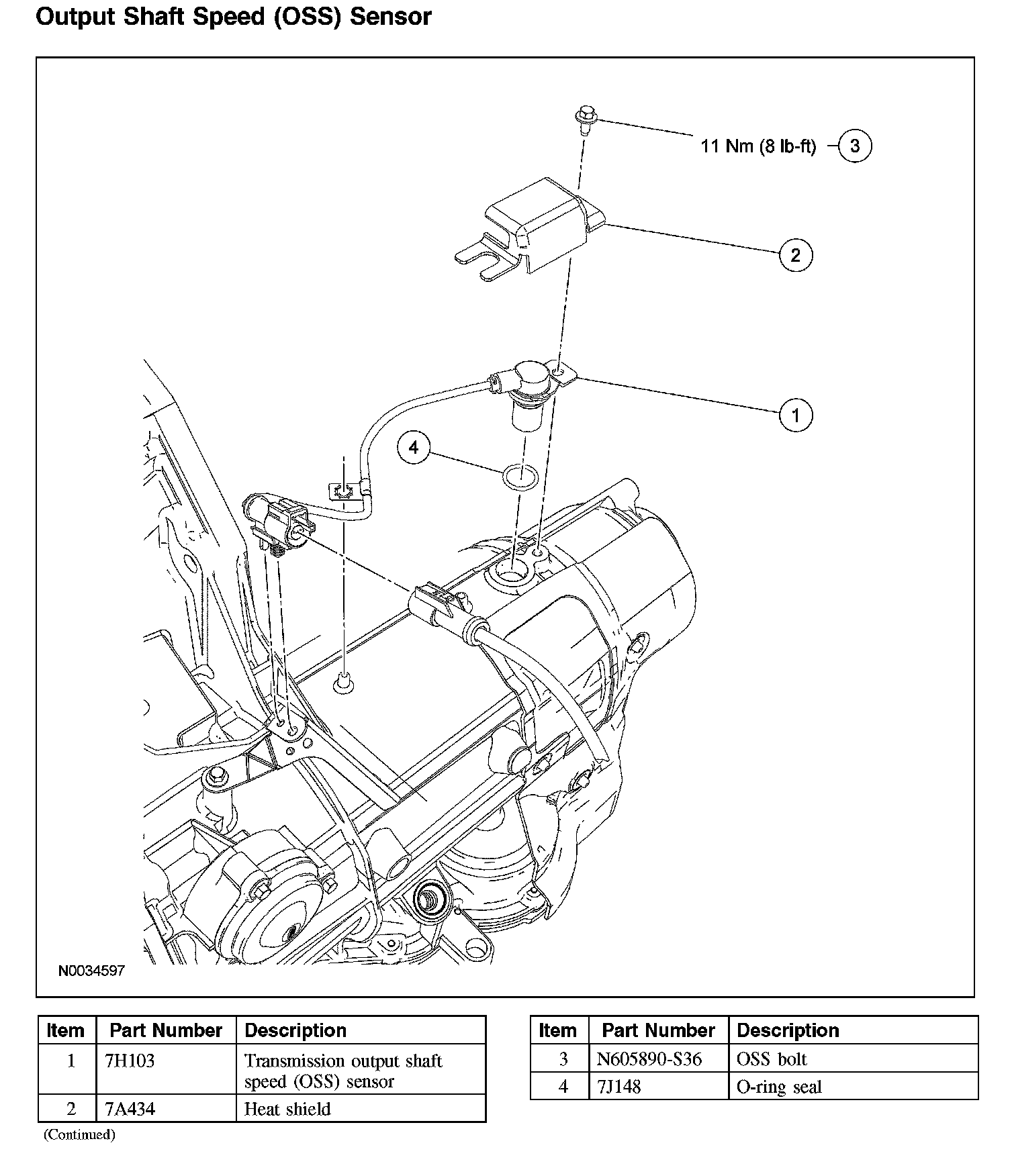

Output Shaft Speed (OSS) Sensor

Output Shaft Speed (OSS) Sensor

Output Shaft Speed (OSS) Sensor:





Removal and Installation

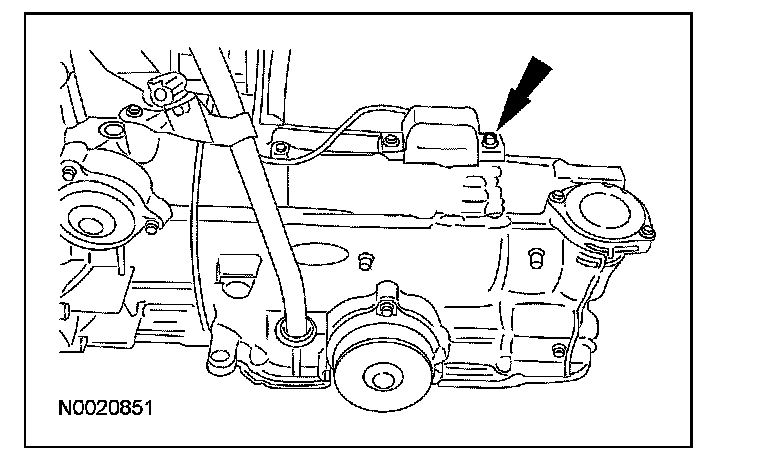

1. Disconnect the output shaft speed (OSS) sensor connector.





2. NOTE: The OSS sensor is located under the RH exhaust manifold.

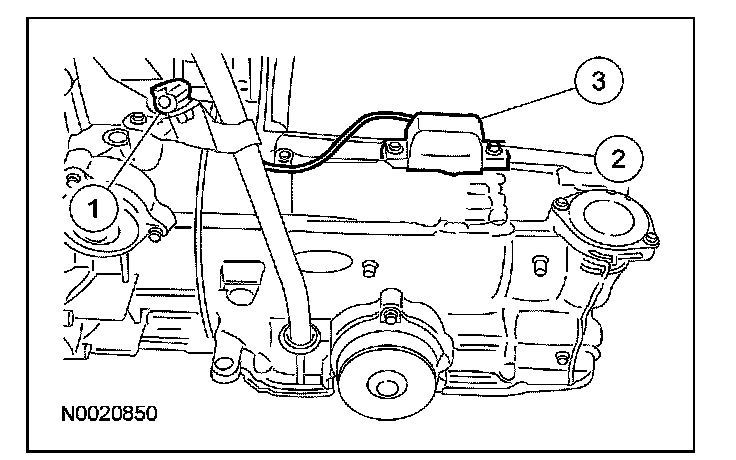

Remove the OSS sensor cover.

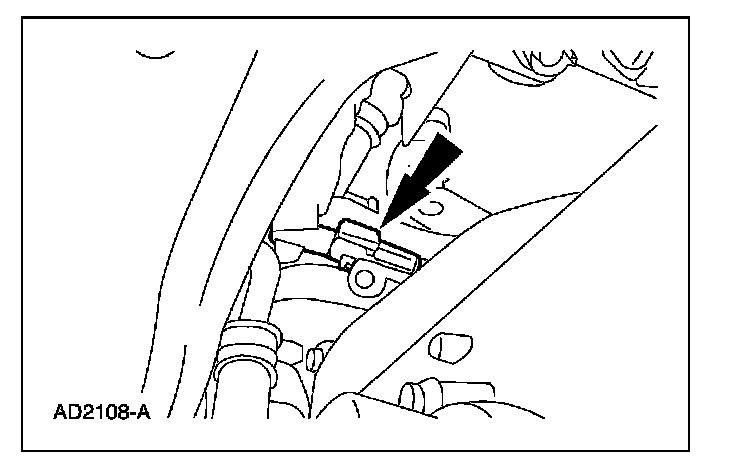

1. Remove the connector.
2. Remove the bolt.
^ To install, tighten to 11 Nm (8 ft. lbs).
3. Remove the cover.

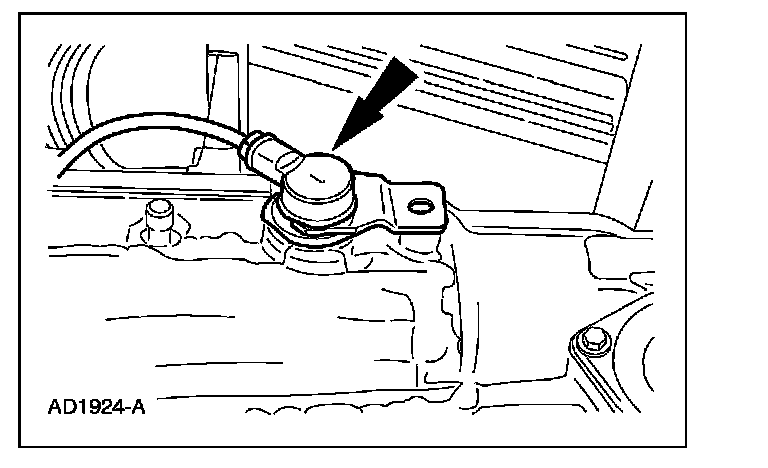

3. Remove the OSS sensor.





4. NOTE: Lubricate the OSS O-ring before installing the sensor.

To install, reverse the removal procedure.
