Rear Door Window Glass: Service and Repair

WINDOW GLASS - REAR DOOR

Part 1:

Part 2:

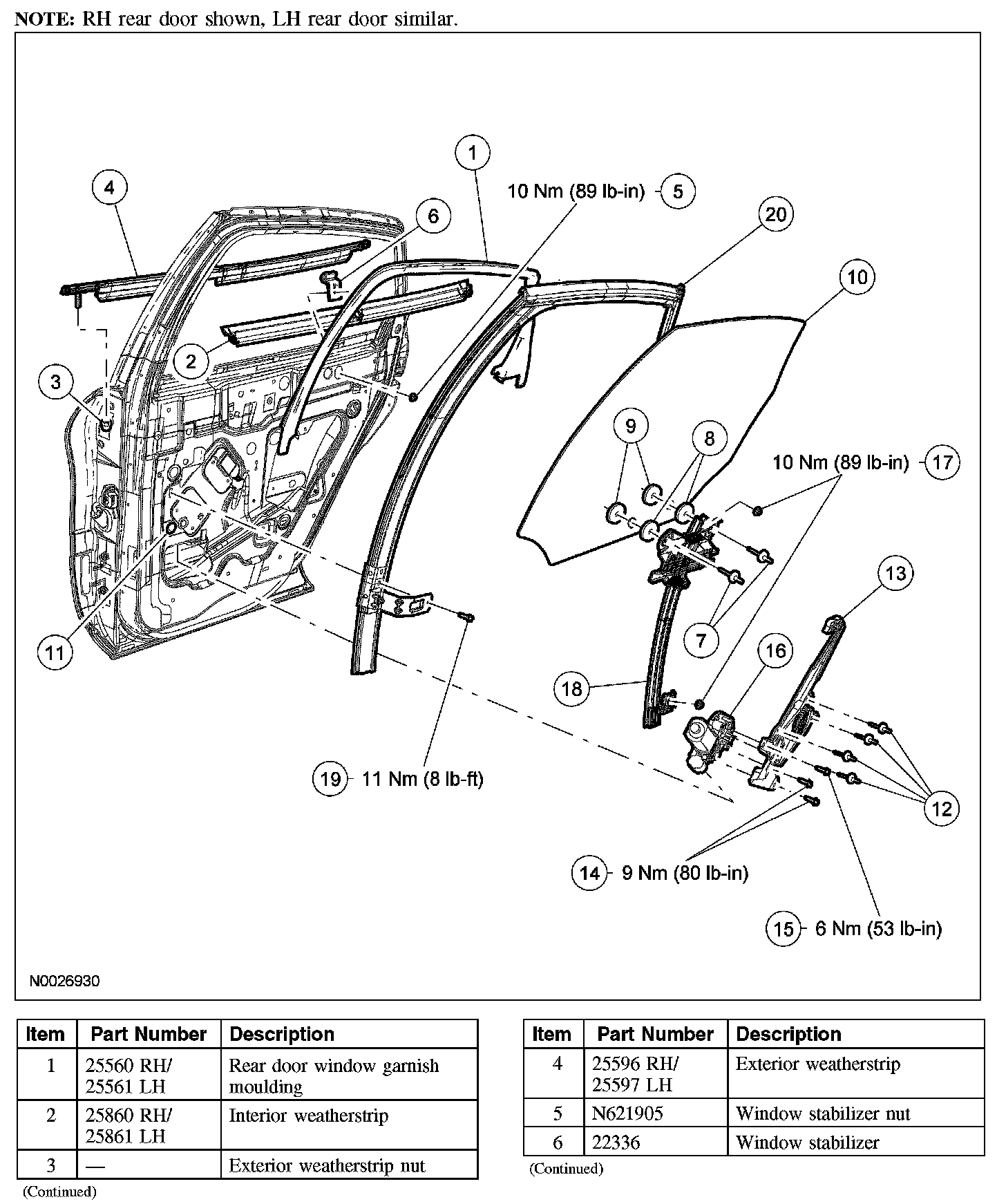

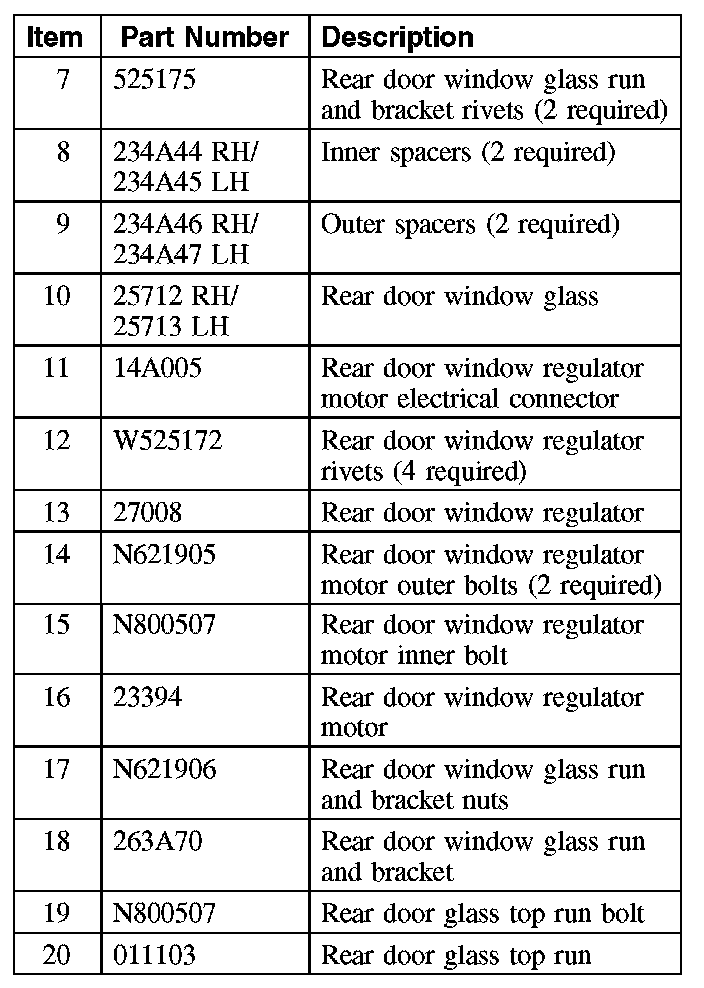

Exploded View

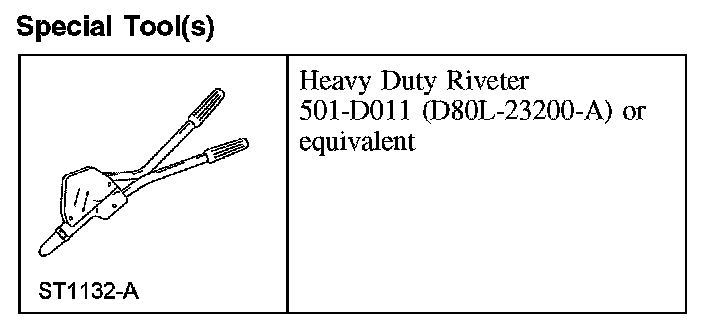

Special Tool(s):

Special Tool(s)

Removal and Installation
1. Remove the rear door trim panel.
2. Remove the watershield.
3. Remove the interior weatherstrip.
4. Remove the exterior weatherstrip nut and the exterior weatherstrip.
5. Remove the rear window stabilizer nut and the rear window stabilizer.
- To install, tighten to 10 Nm (89 lb-in).







6. CAUTION: Prior to removing the rivet center pins, place suitable support between the door outer panel and the glass to stabilize the glass.

NOTE: Lower the window to access the rivets.

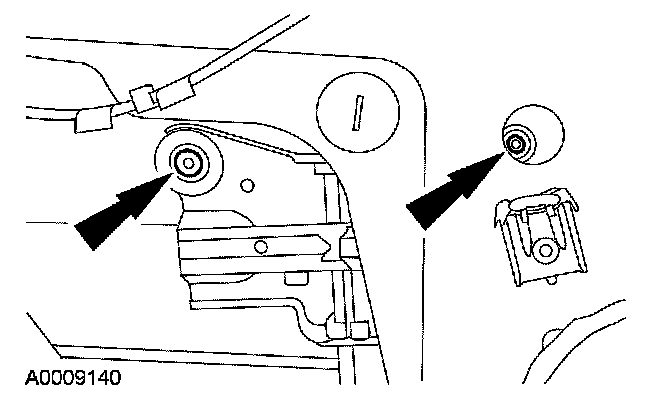

Remove the 2 rivets retaining the rear door window glass to the rear door window glass run and bracket.

7. Remove the rear door window glass.
8. To install, reverse the removal procedure.
