Test N: The Door Locks Operate Only One Way

PINPOINT TEST N: THE DOOR LOCKS OPERATE ONLY ONE WAY

Normal Operation
The door lock actuators are grounded through the RH door lock control switch and circuit 57 (BK).

This pinpoint test is intended to diagnose the following:
- Wiring, terminals or connectors
- Front passenger door lock control switch

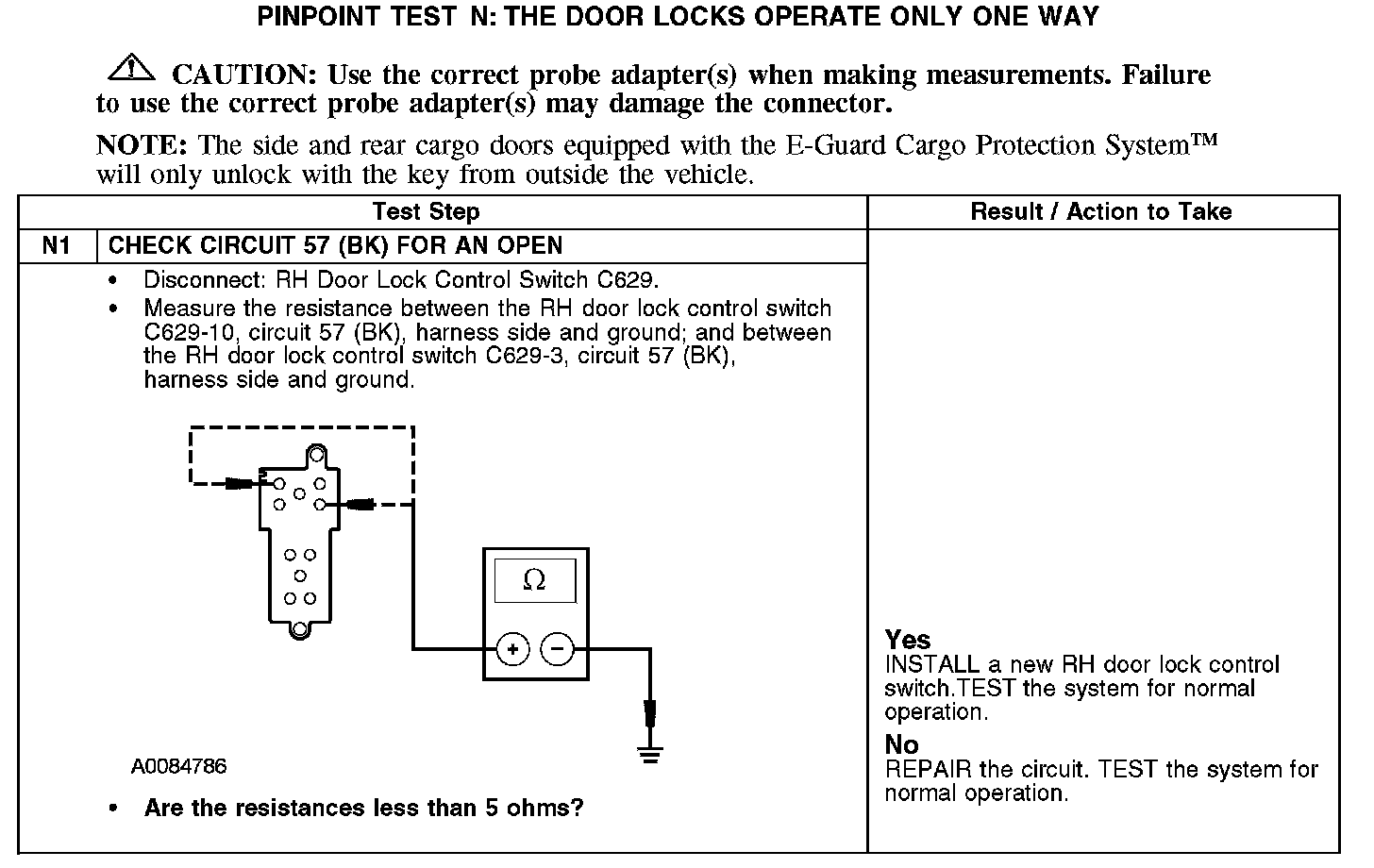

N1:
