Canister Purge Control Valve: Service and Repair

EVAPORATIVE EMISSION CANISTER PURGE VALVE

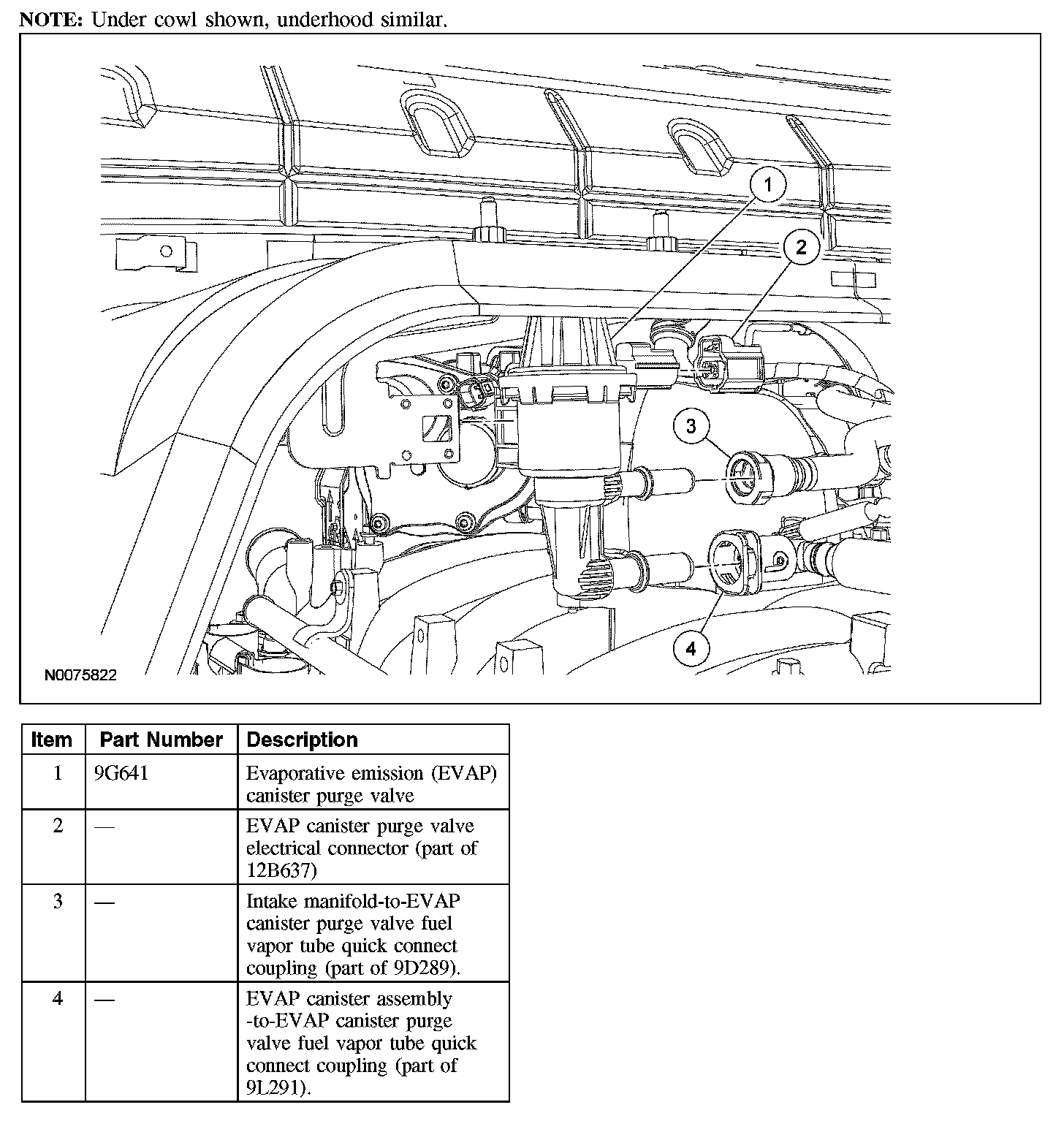

Exploded View

Aft-of-Axle Fuel Tank (Part 1):

Aft-of-Axle Fuel Tank (Part 2):

Midship Fuel Tank (Part 1):

Midship Fuel Tank (Part 2):

Removal and Installation

1. WARNING:
- When working on or near the evaporative emission (EVAP) system, disconnect the battery ground cable from the battery. The EVAP system contains fuel vapor and condensed fuel vapor, so an electrical spark may cause a fire or explosion. Failure to follow this instruction may result in serious personal injury.
- Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.

Disconnect the battery ground cable.

2. If necessary, remove the engine cover.
3. Disconnect the evaporative emission (EVAP) canister purge valve electrical connector and the EVAP fuel vapor tube quick connect couplings.







4. Press the tab and remove the EVAP canister purge valve.







5. To install, reverse the removal procedure.
- Carry out the evaporative emission system leak test. Testing and Inspection
- Carry out the evaporative emission repair verification drive cycle.
